Wiper Washer Switch Test

Continuity Chart

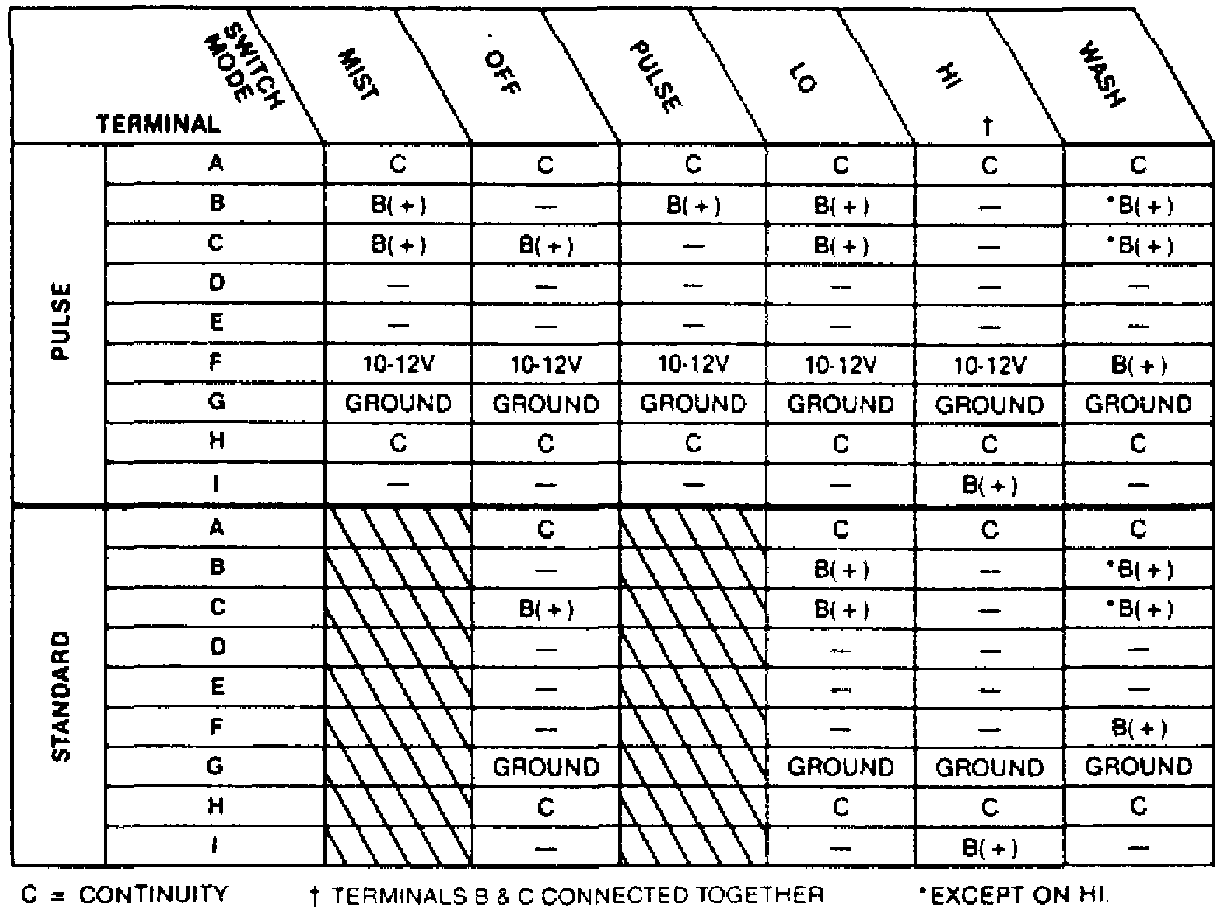

Fig. 48 Wiper/Washer Switch Check Chart:






Pulse Wipers

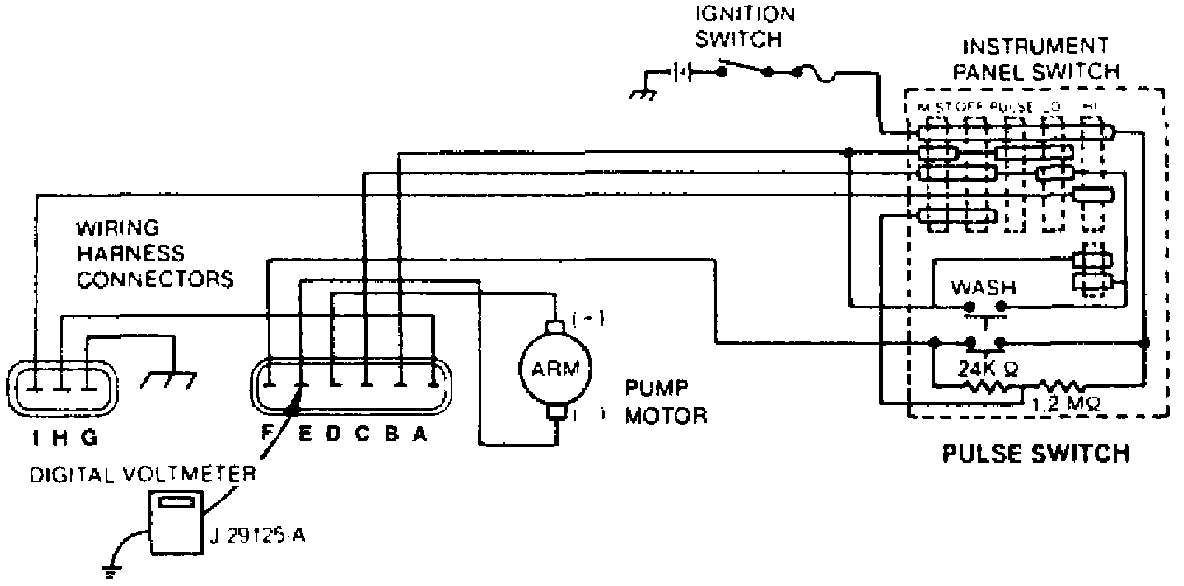

Fig. 47 Wiper/Washer Switch Test (Pulse):






Standard Wipers

Fig. 46 Wiper/Washer Switch Test (Standard):
