Diagnosis With Transmission Test Box
>>

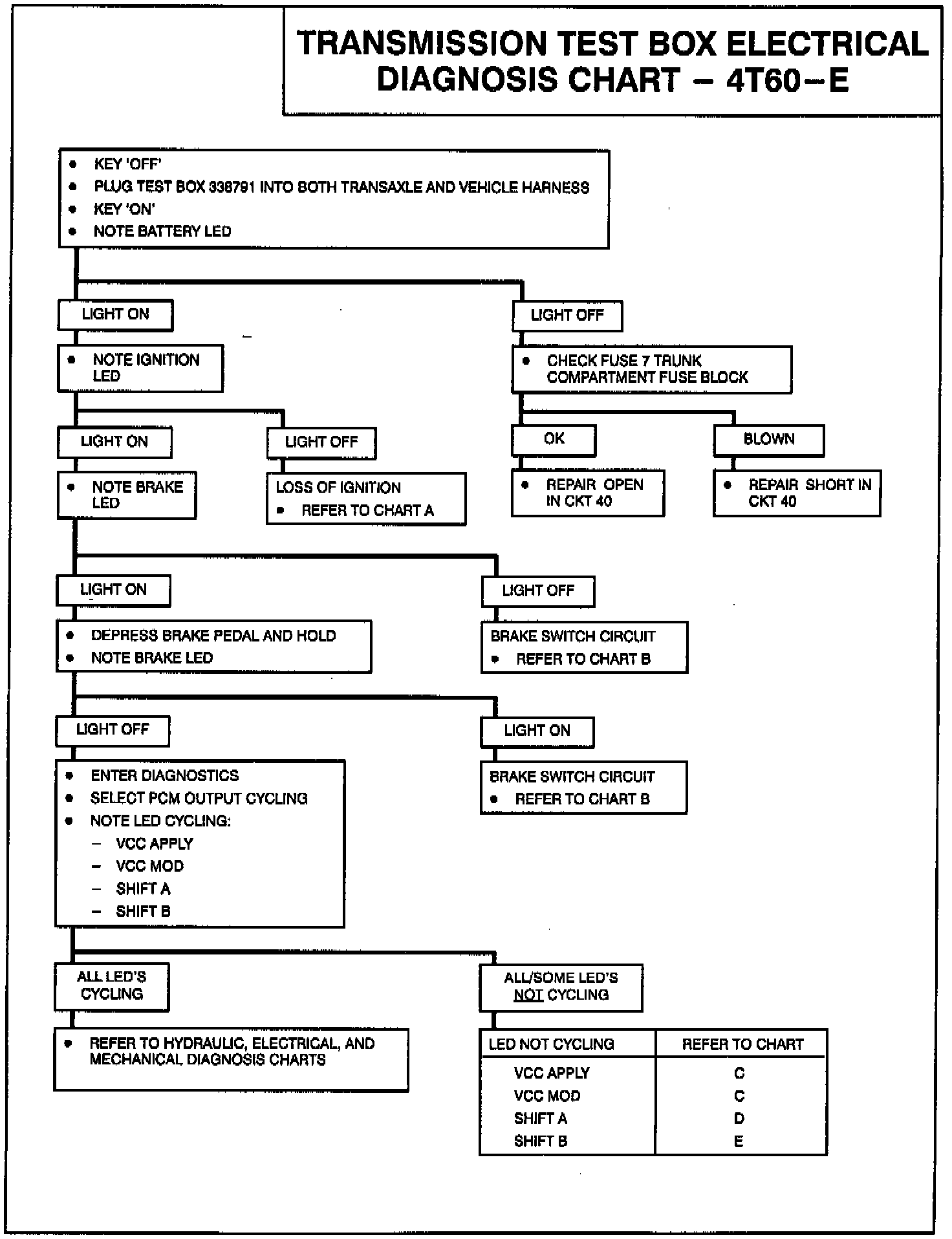

Transmission Test Box Diagnosis Chart
Transmission Test Box Diagnosis Chart
Diagnosis Chart:
