Home
>>
Cadillac
>>
1993
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnosis With Transmission Test Box
>>

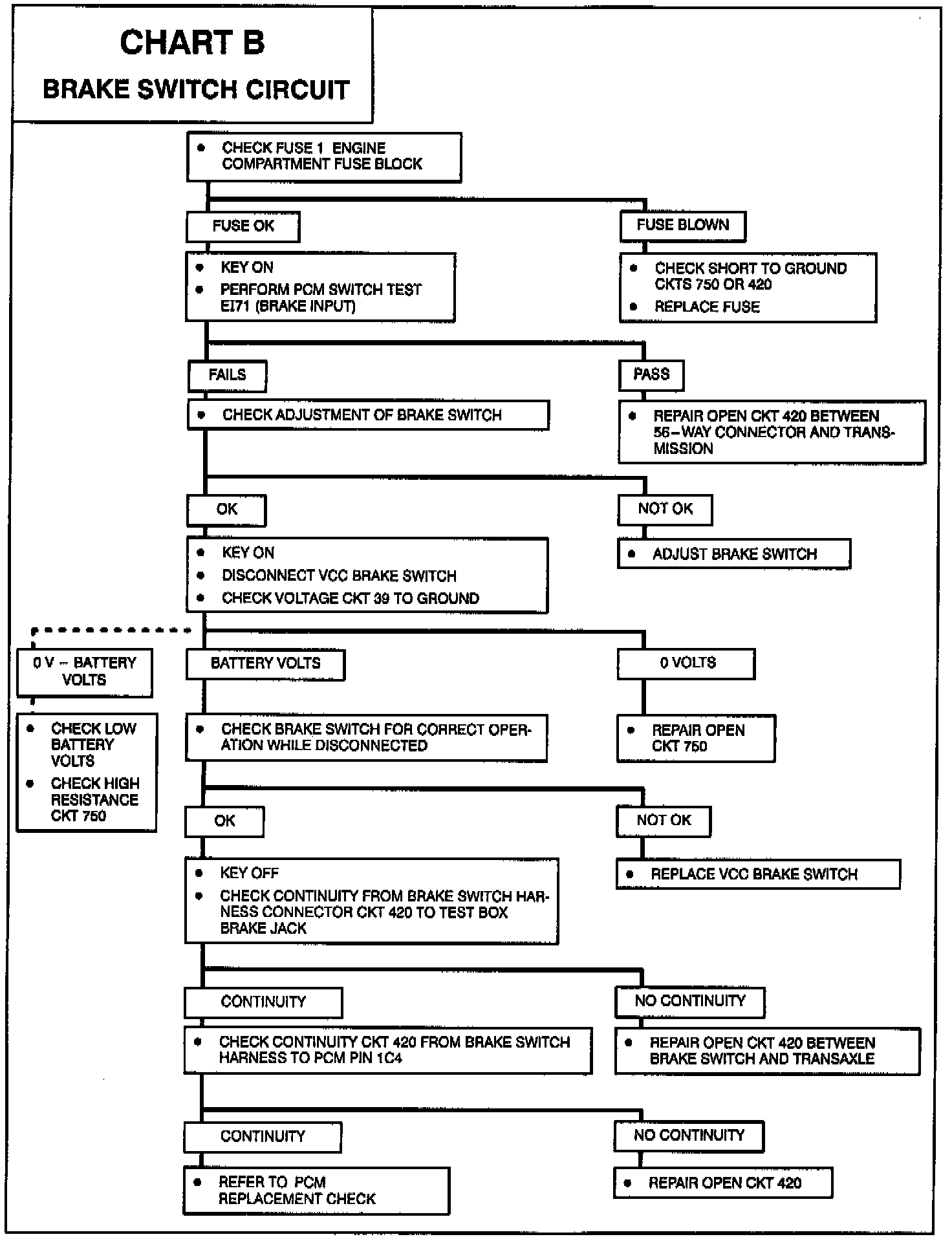

Chart B - Brake Switch Circuit
Chart B - Brake Switch Circuit
Flow Chart:
