Evaporative Emission Control Canister: Service and Repair

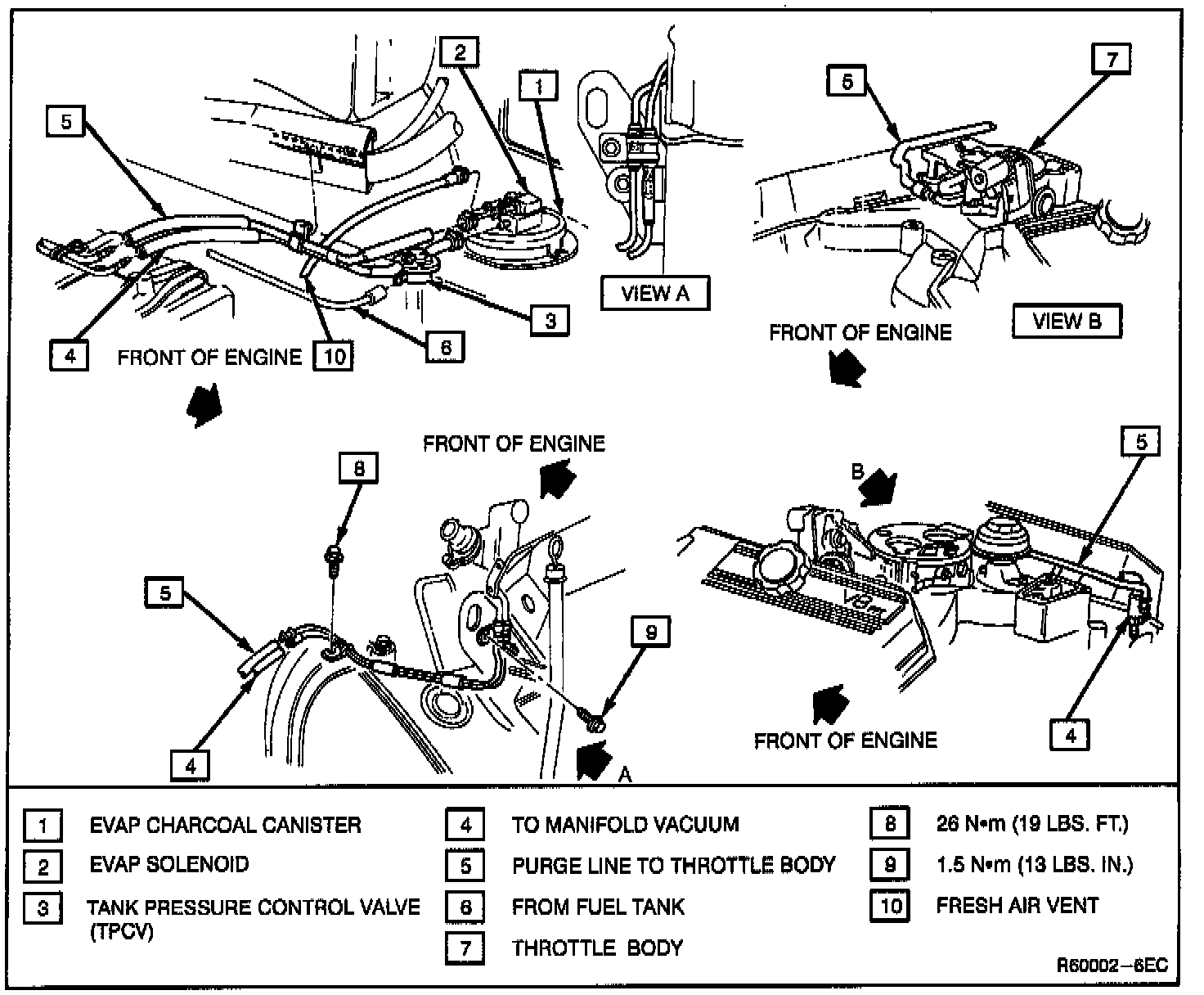

EVAP Vaccum Hose Routing:

EVAP Charcoal Canister:

Remove or Disconnect
1. Relay center bracket

2. Hoses from canister

^ Mark hoses to install on new canister

3. EVAP electrical connector

4. Two bolts

5. Remove canister

Install or Connect

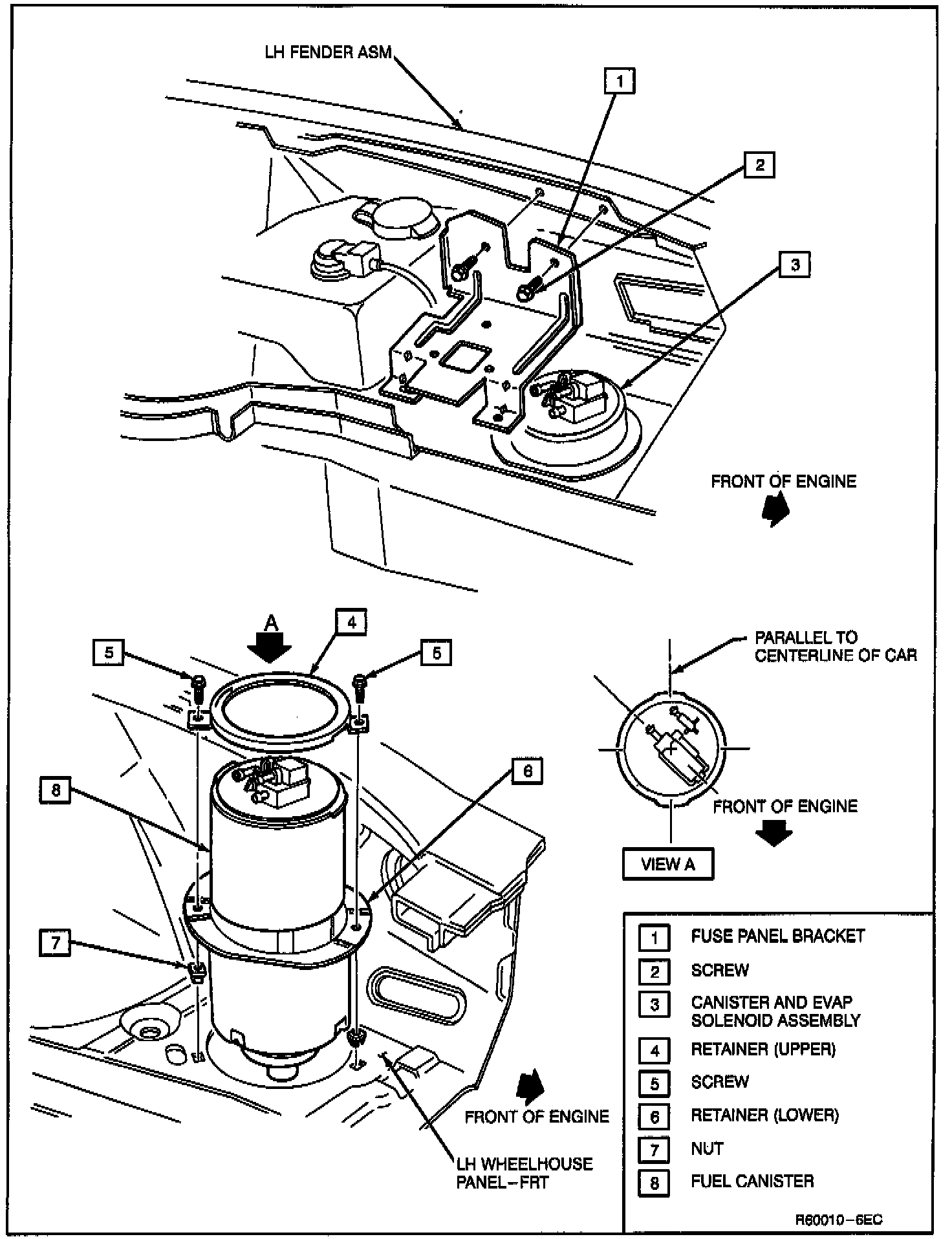

1. Canister in Bracket. Make sure canister is positioned as shown in the accompanying illustration.

2. Two bolts

3. Hoses to top of canister

4. EVAP electrical connector

5. Relay center bracket
