Cadillac
>>
1993
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
Ignition Controls

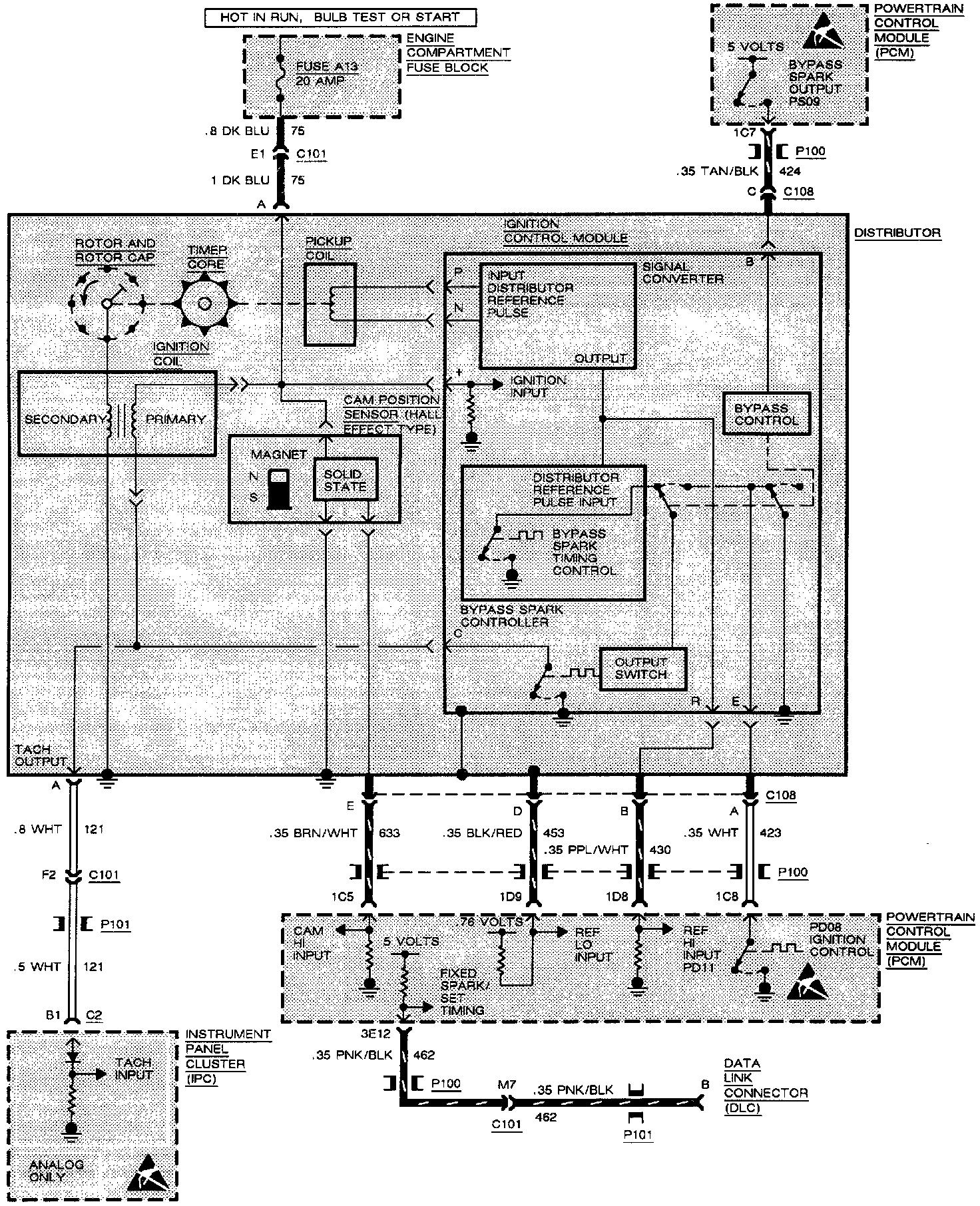

Distributor Circuit:
Ignition Control:
