Emission Control & Power Steering Pressure Switch
Emission Control & Power Steering Pressure Switch

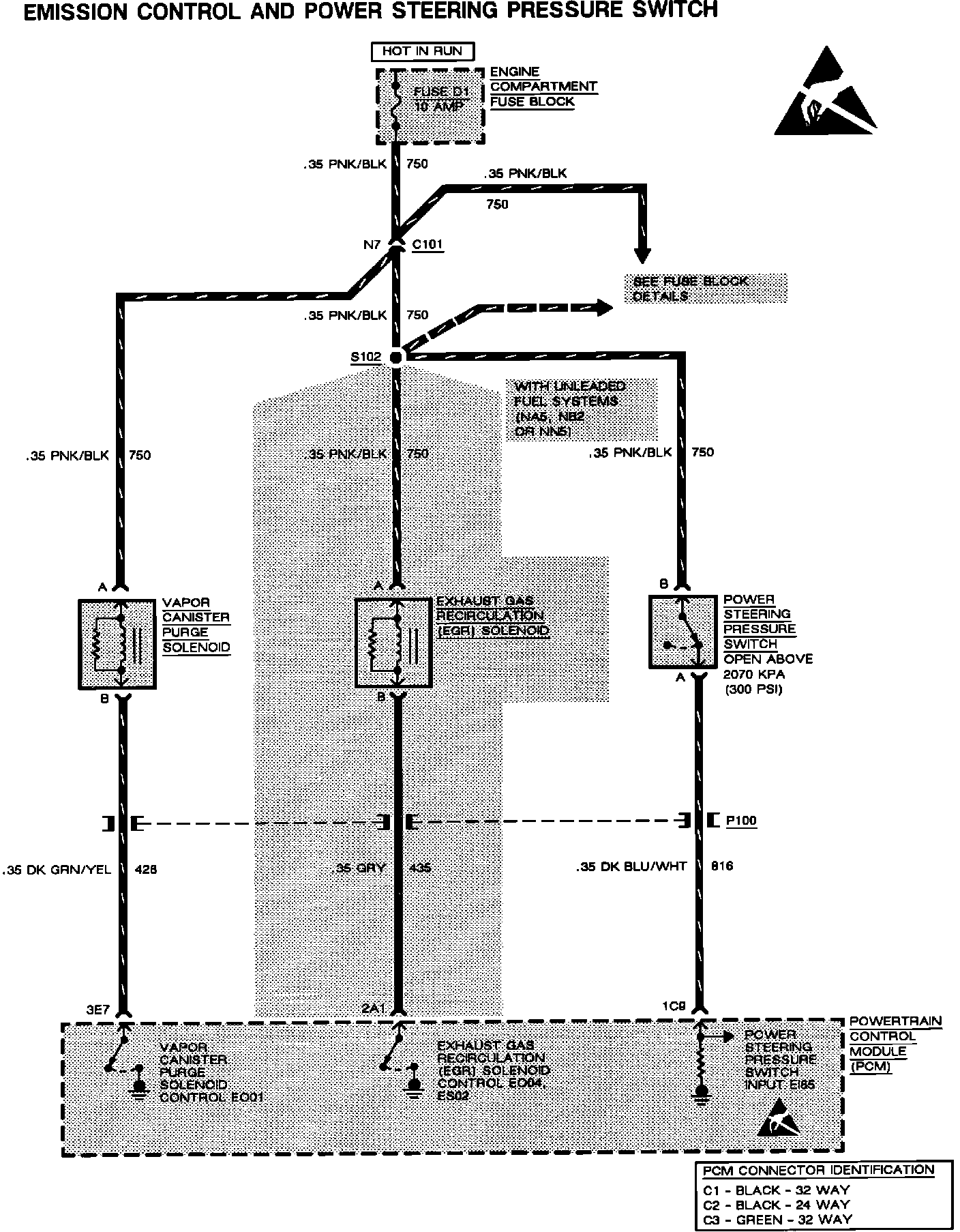

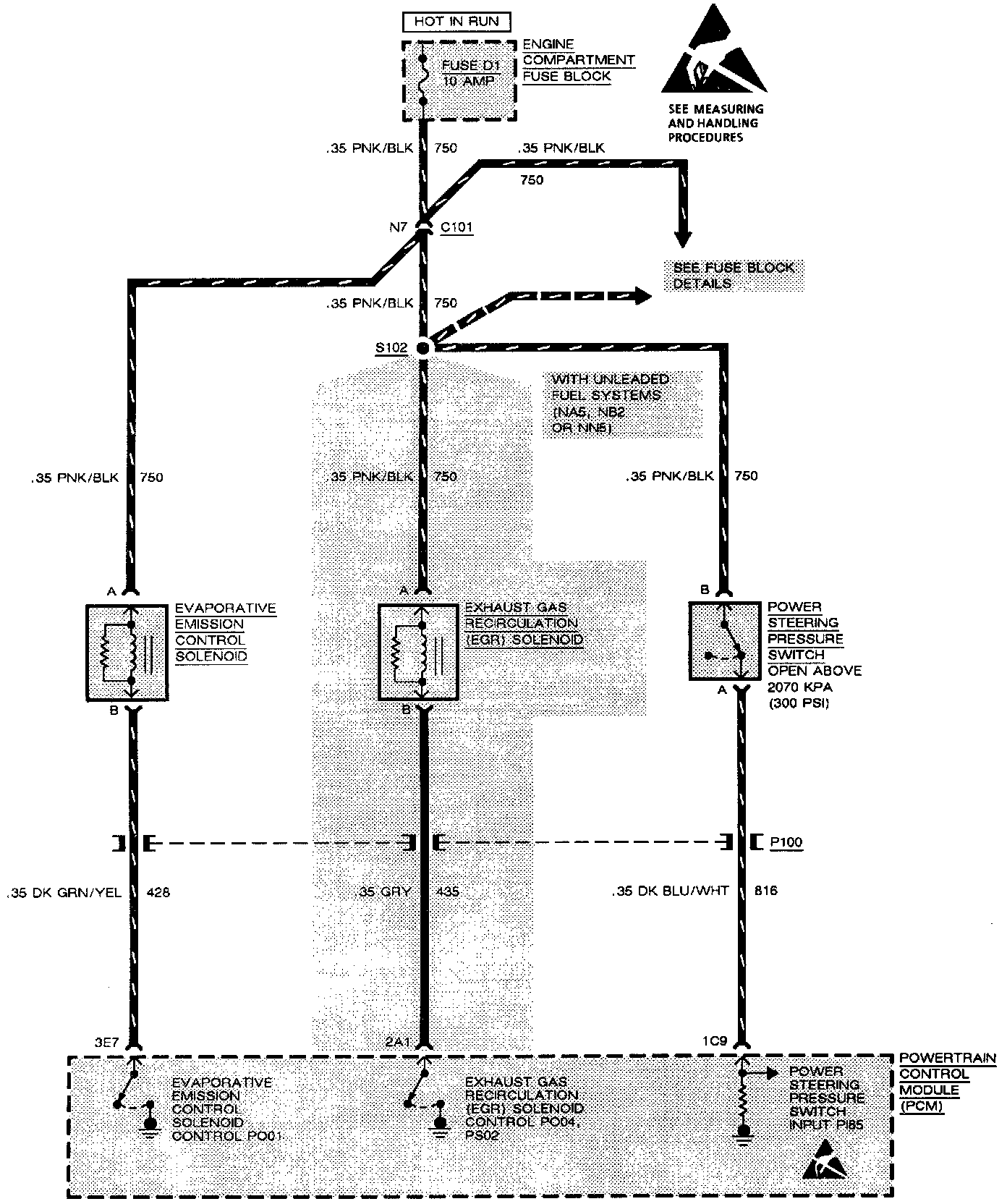

Wiring Diagram.:
Emission Control & Power Steering Pressure Switch:
