Cadillac
>>
1993
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Engine Compartment
>>

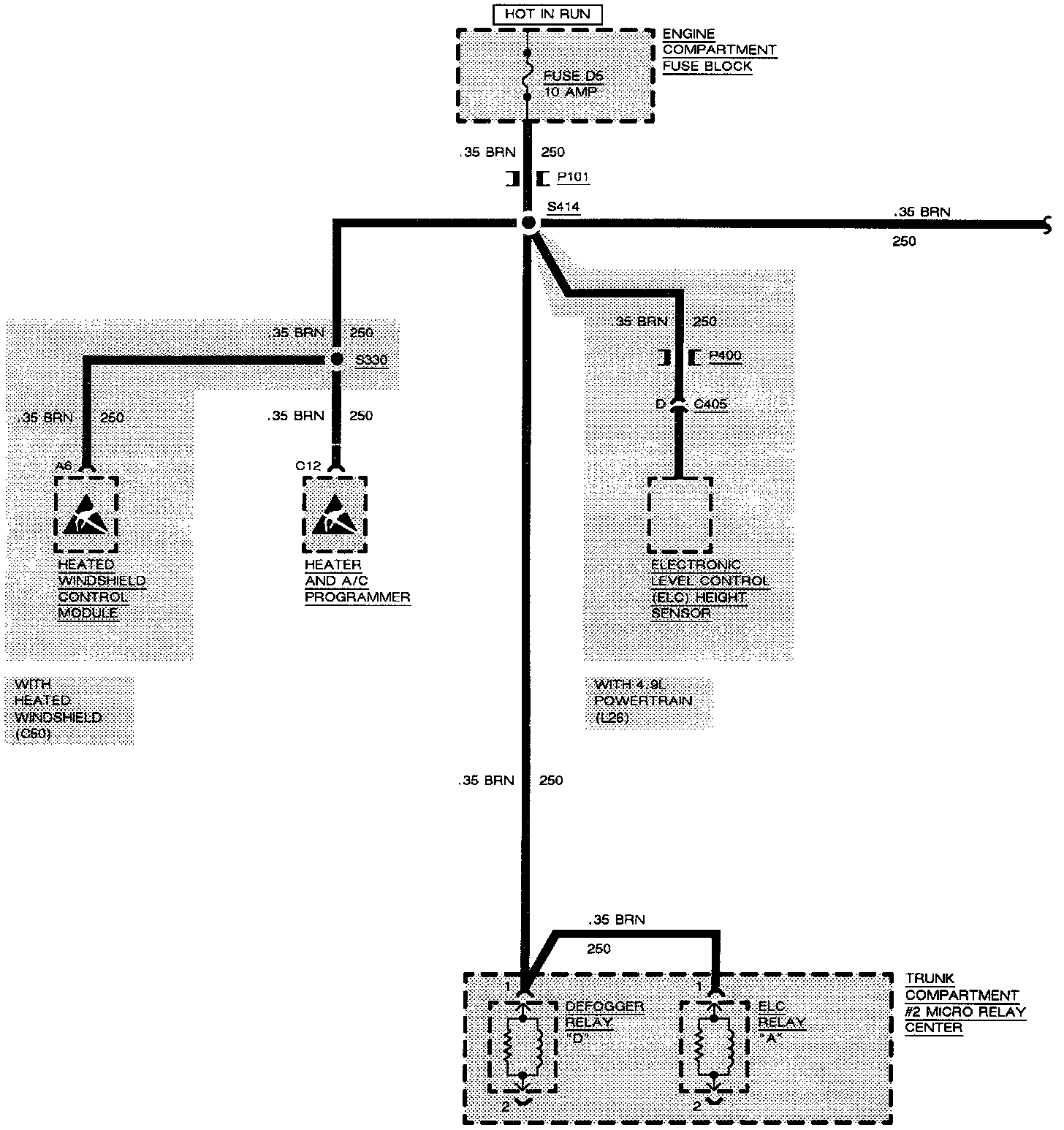

Fuse D5
Fuse D5
Fuse Block Details:
Fuse Block Details Cont.:
