Cadillac
>>
1993
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103 & G104

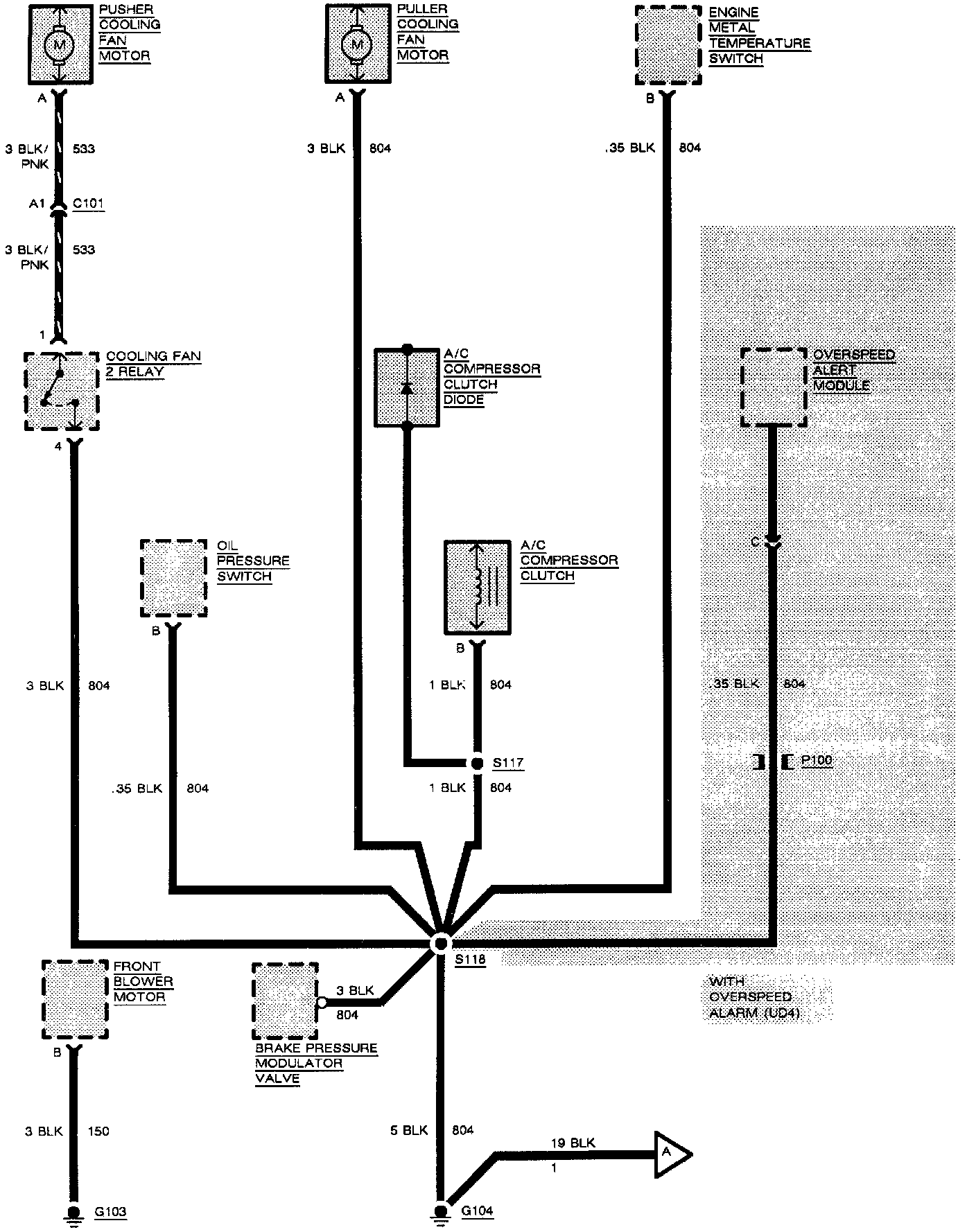

G103 & G104
Ground Distribution:
