Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1993
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Idle Speed Control & Vehicle Data Sensors
Idle Speed Control & Vehicle Data Sensors

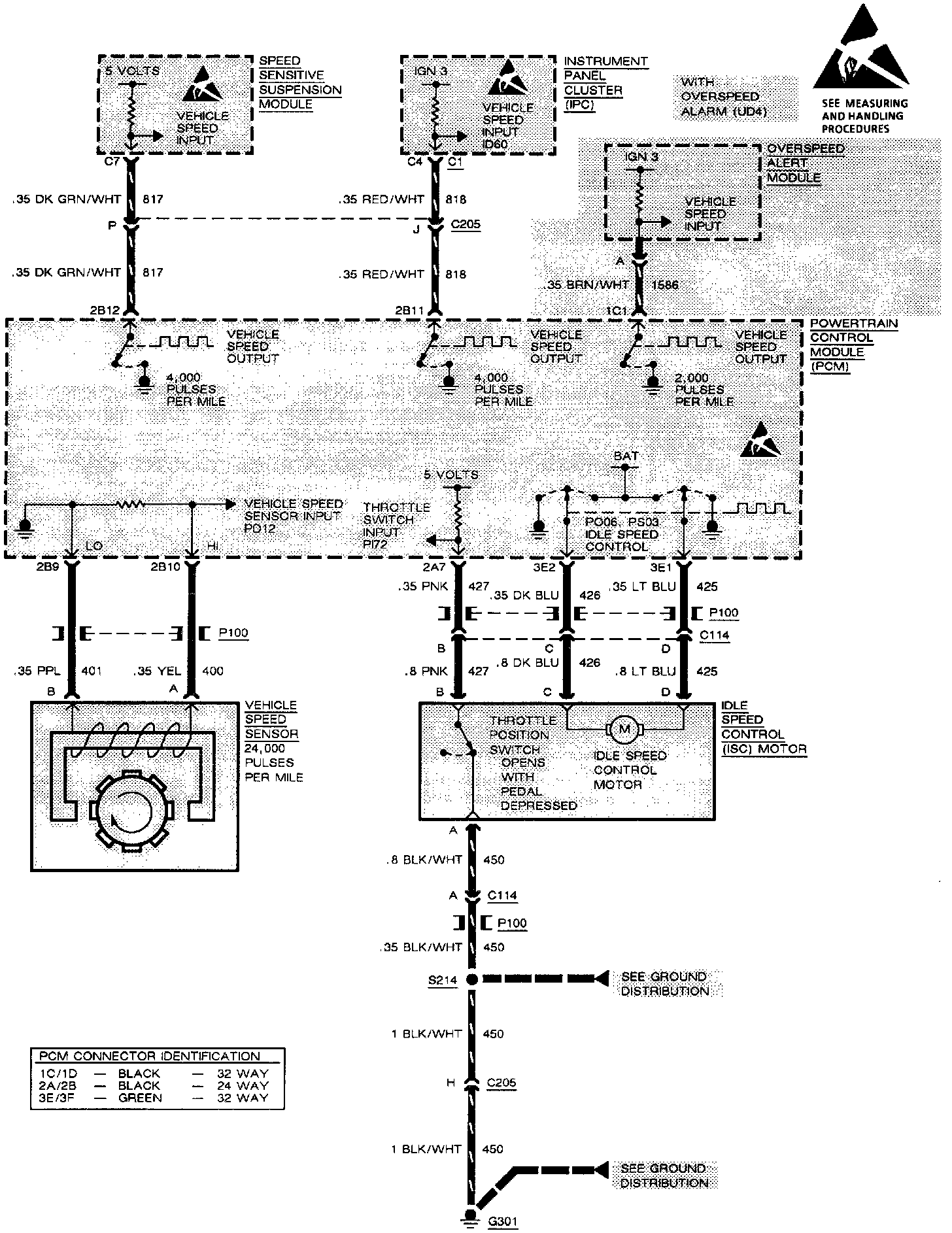

Idle Speed Control Motor & Vehicle Speed Sensor:
