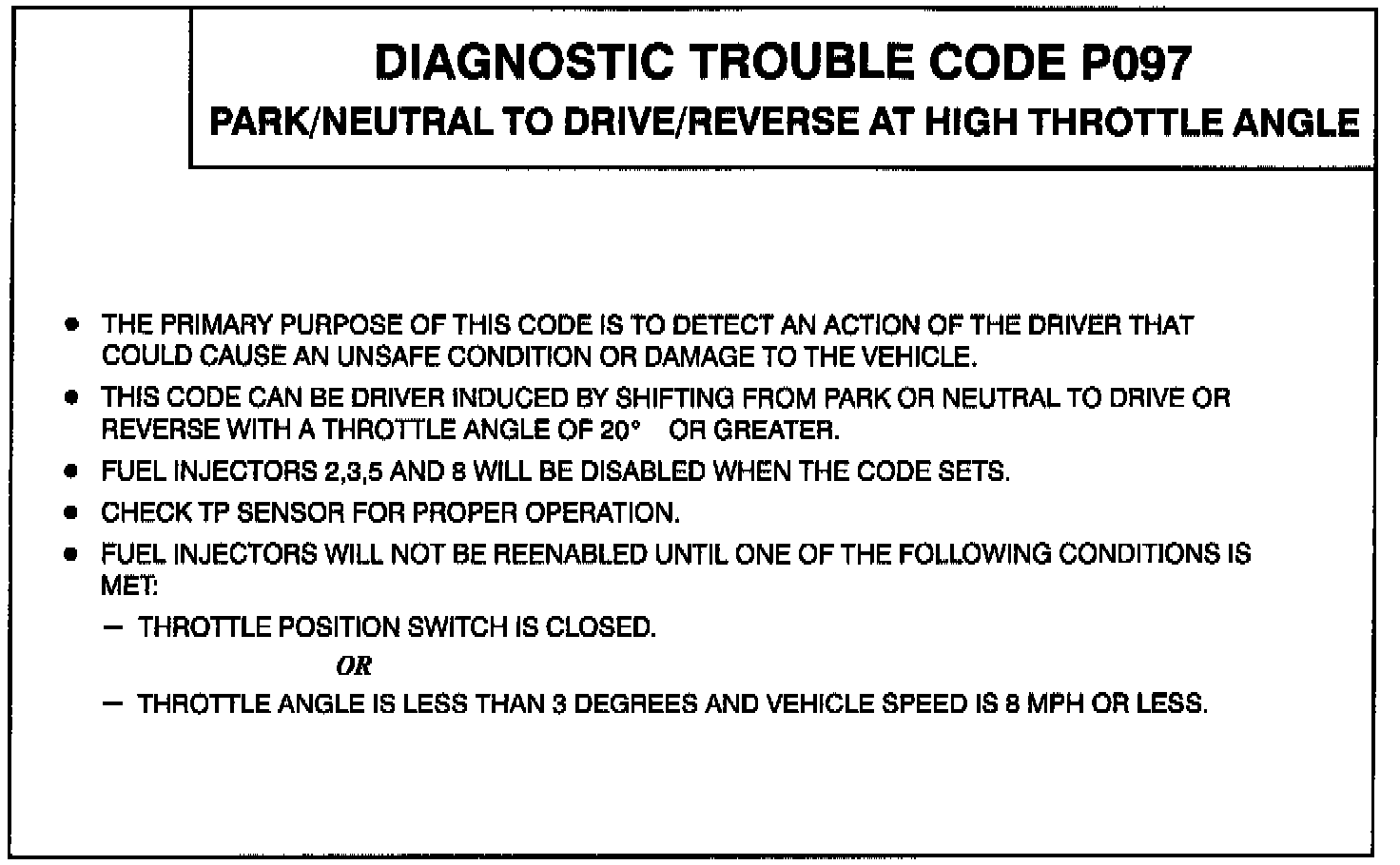

P097

Code PO97:

Sensor Circuit:

DESCRIPTION:
This diagnostic test is to detect the vehicle transaxle being placed in gear under conditions that may cause damage to the vehicle powertrain or create an unsafe condition. When such a condition exists, Code P097 is set and engine power will be reduced by disabling fuel to individual cylinder.

TEST CONDITIONS:
1. Codes P021, P022 and P070 not set.

FAILURE CONDITIONS:
1. Gear selection from Park or Neutral to Drive or Reverse.

2. Vehicle speed less than 6 mph.

3. Engine speed greater than 2000 rpm.

4. Throttle angle of 20 degrees or greater (if Code P097 is already stored in history, use a throttle angle of 16 degrees or greater).

5. Condition 1 through 4 are valid for 0.3 second.

ACTION TAKEN:
1. PCM will disable fuel to individual cylinders to reduce engine power.
