Canister Purge Solenoid: Service and Repair

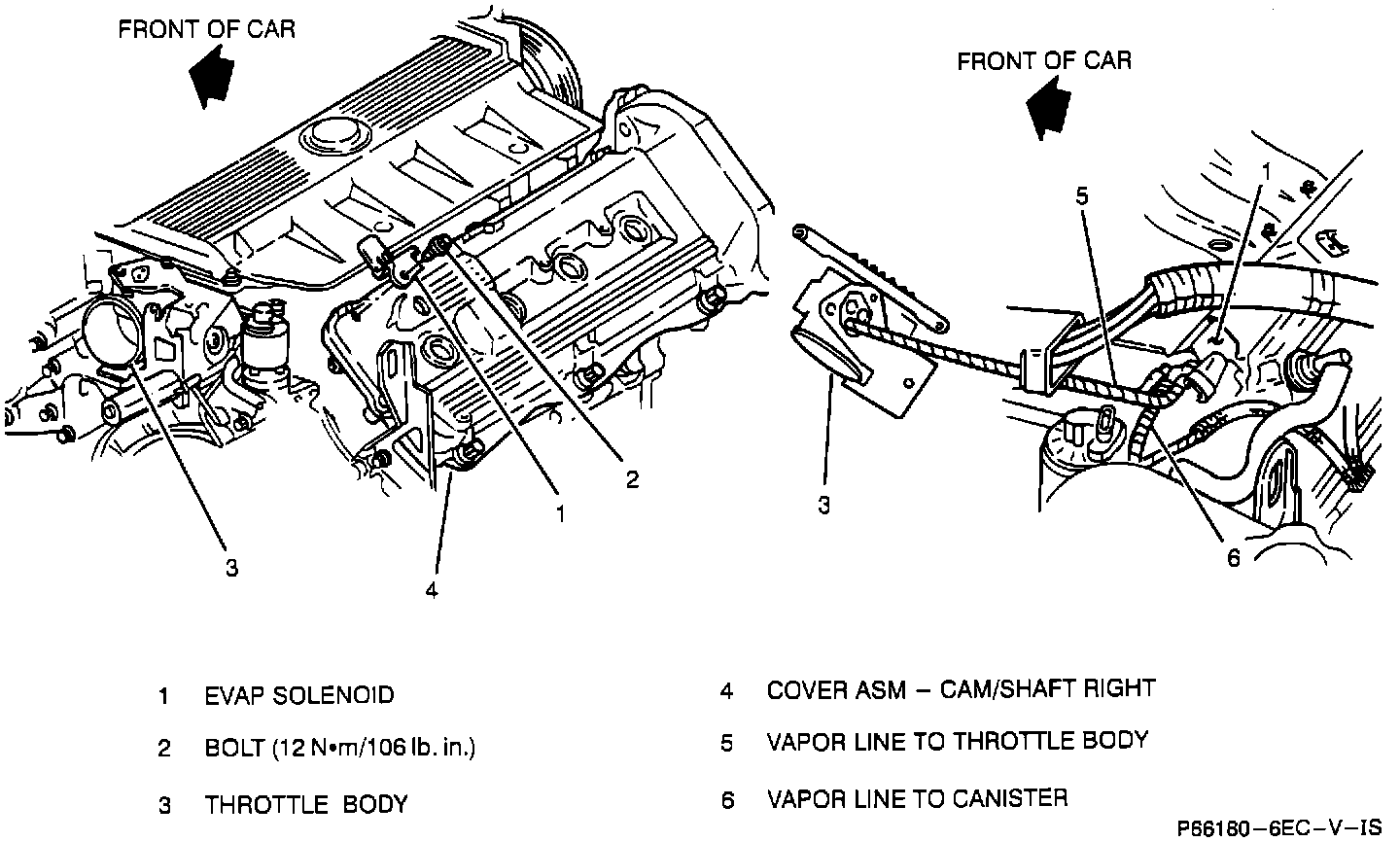

EVAP Components:

REMOVE OR DISCONNECT
- Spark plug wires and conduit channel fuel lines.
- Fuel lines.
- EVAP solenoid electrical connector.
- One bolt.
- EVAP solenoid.




INSTALL OR CONNECT
- EVAP solenoid.
- One bolt and tighten to 12 N-m (106 lb. in.).
- EVAP solenoid electrical connector.
- Fuel lines.
- Spark plug wires and conduit channel fuel lines.
