Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Engine Data Sensors

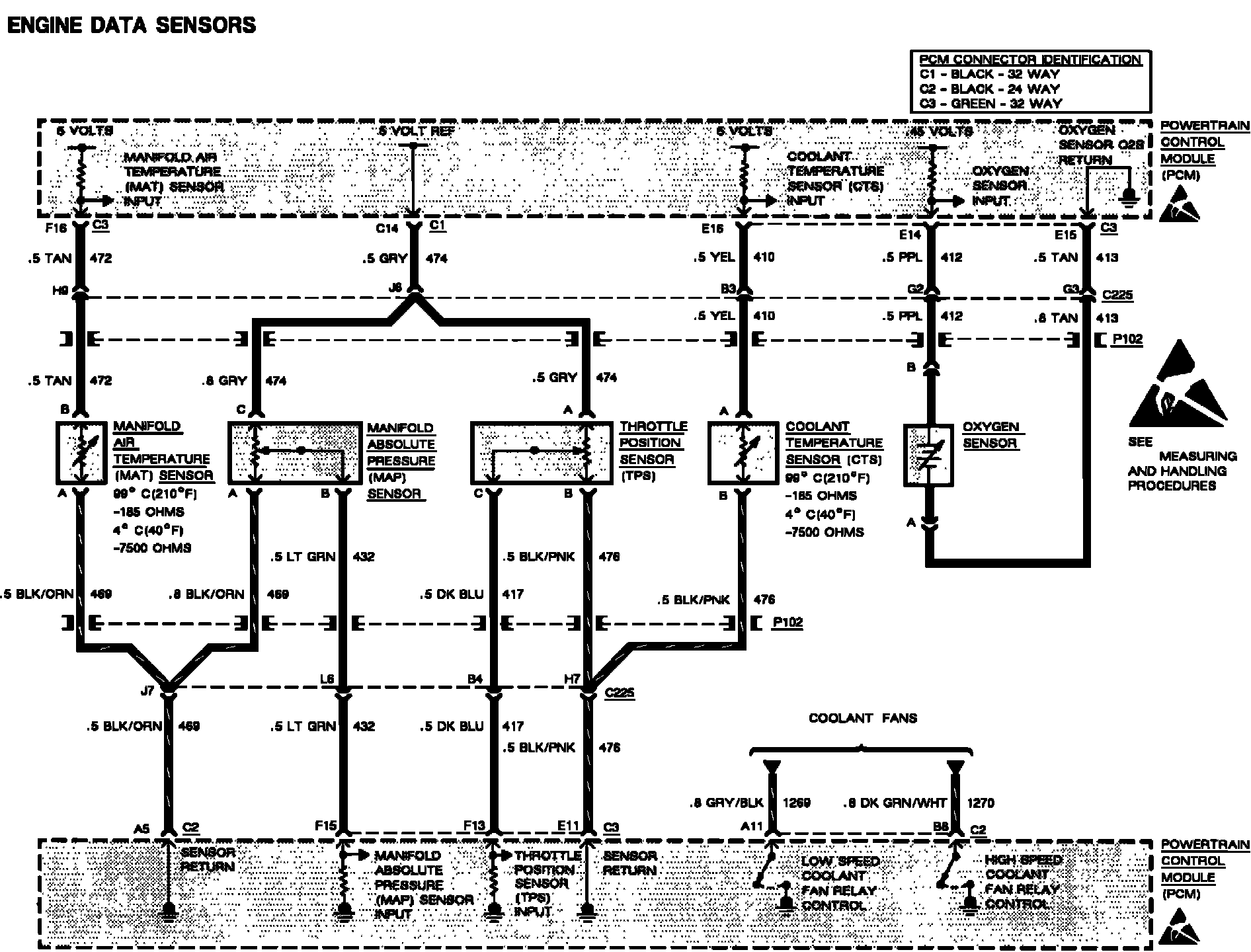

Engine Data Sensors
Port Fuel Injection (Engine Data Sensors):
