Brake Transmission Shift Interlock (BTSI)
Brake Transmission Shift Interlock (BTSI)

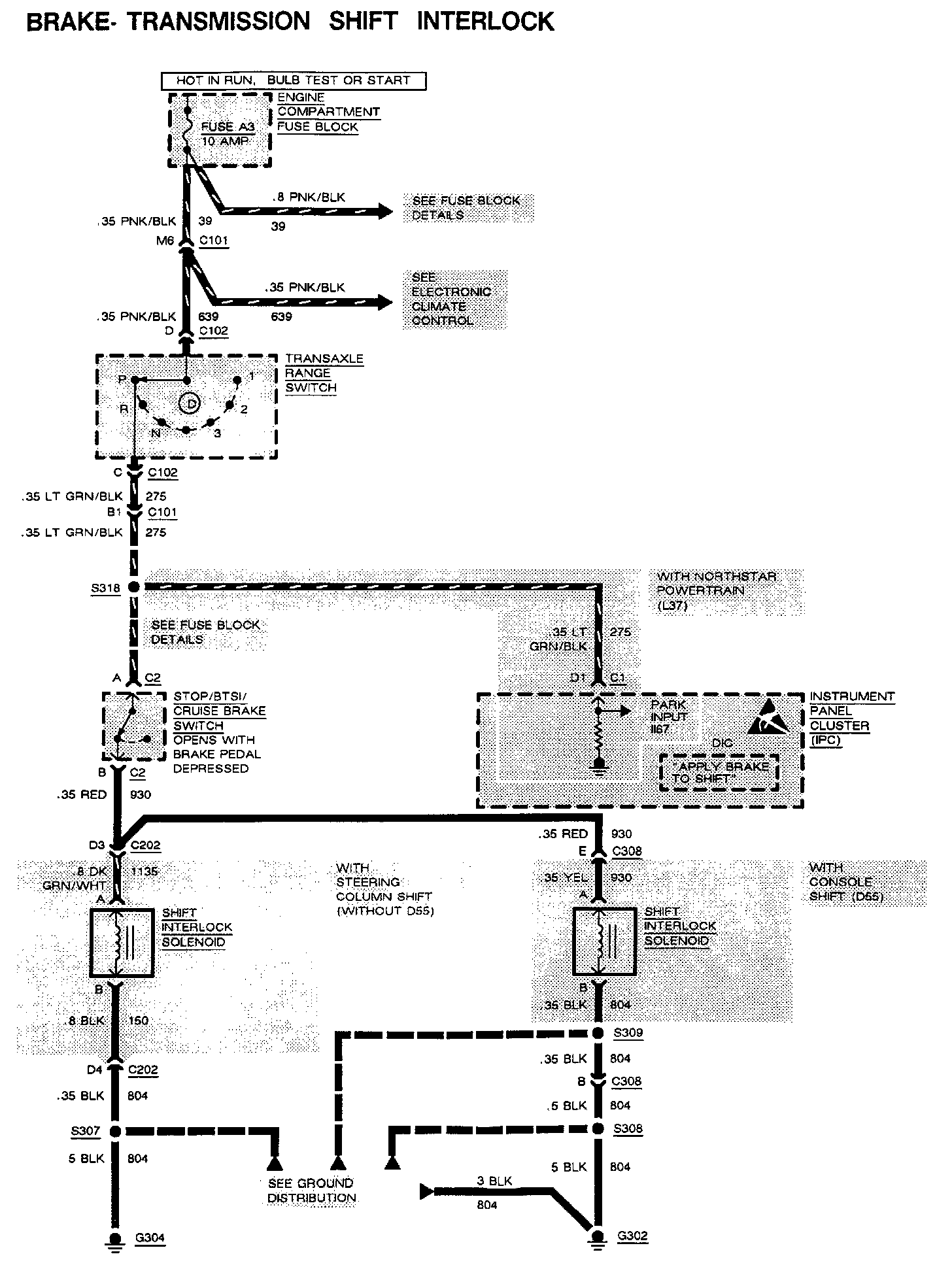

BRAKE TRANSMISSION SHIFT INTERLOCK (BTSI)
The OEM service manual provides two diagrams for this component.
