Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Trunk Compartment
>>

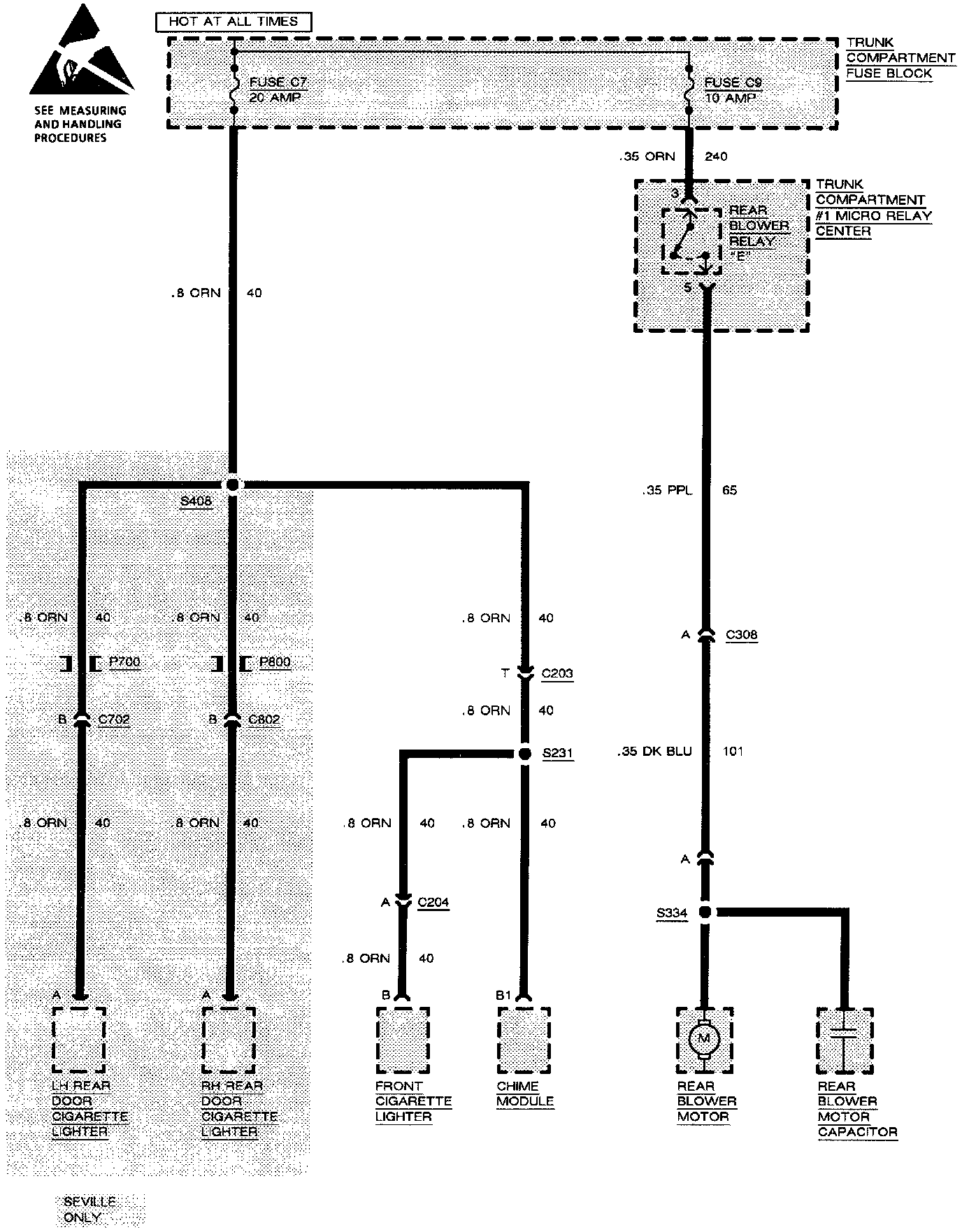

Fuses C7 & C9
Fuses C7 & C9
Fuse Block Details:
