Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>

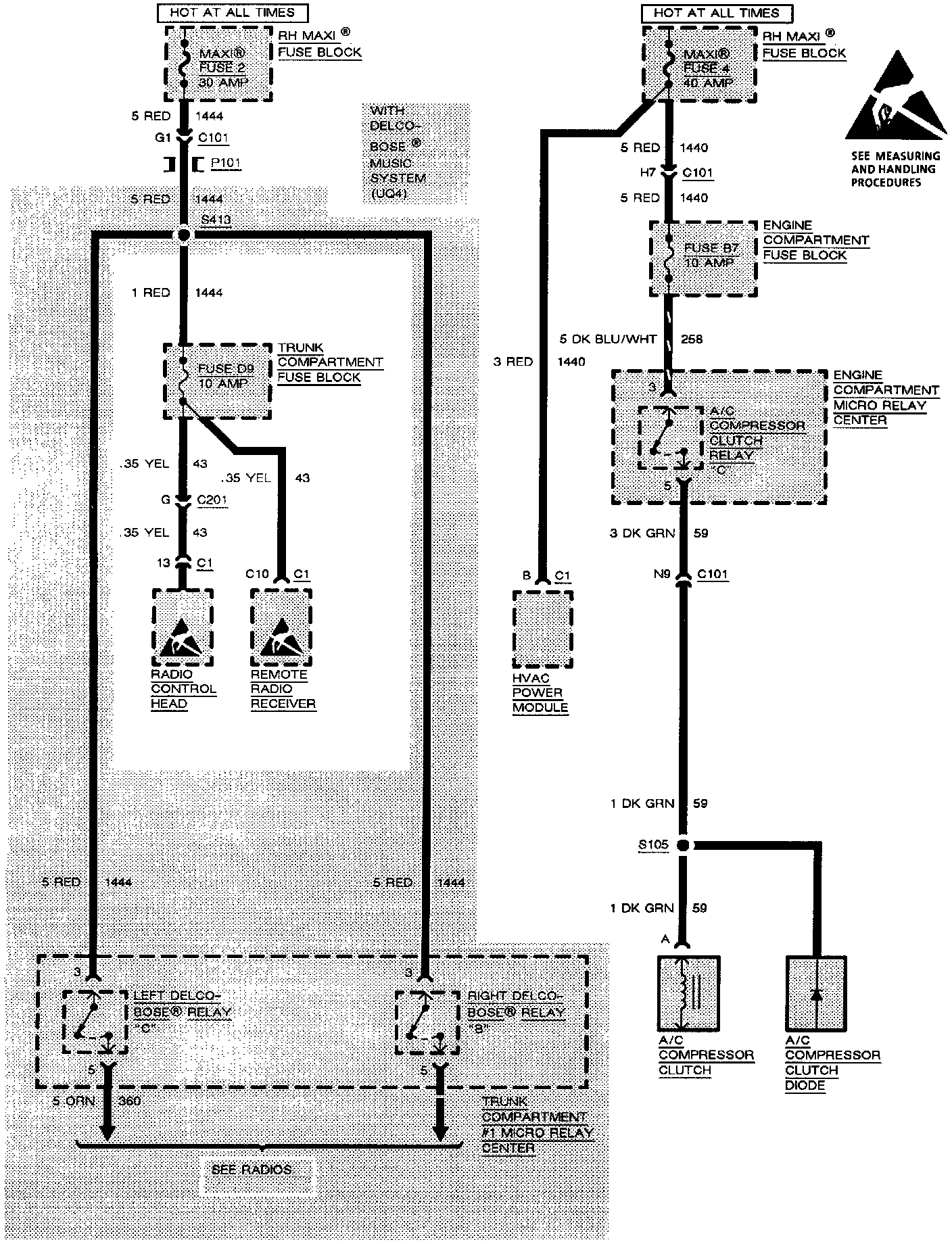

RH Maxi Fuse Block
>>
Fuses 2 & 4
Fuses 2 & 4
Power Distribution:
