Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Engine Compartment >> Fuse A3 >> Without AUO

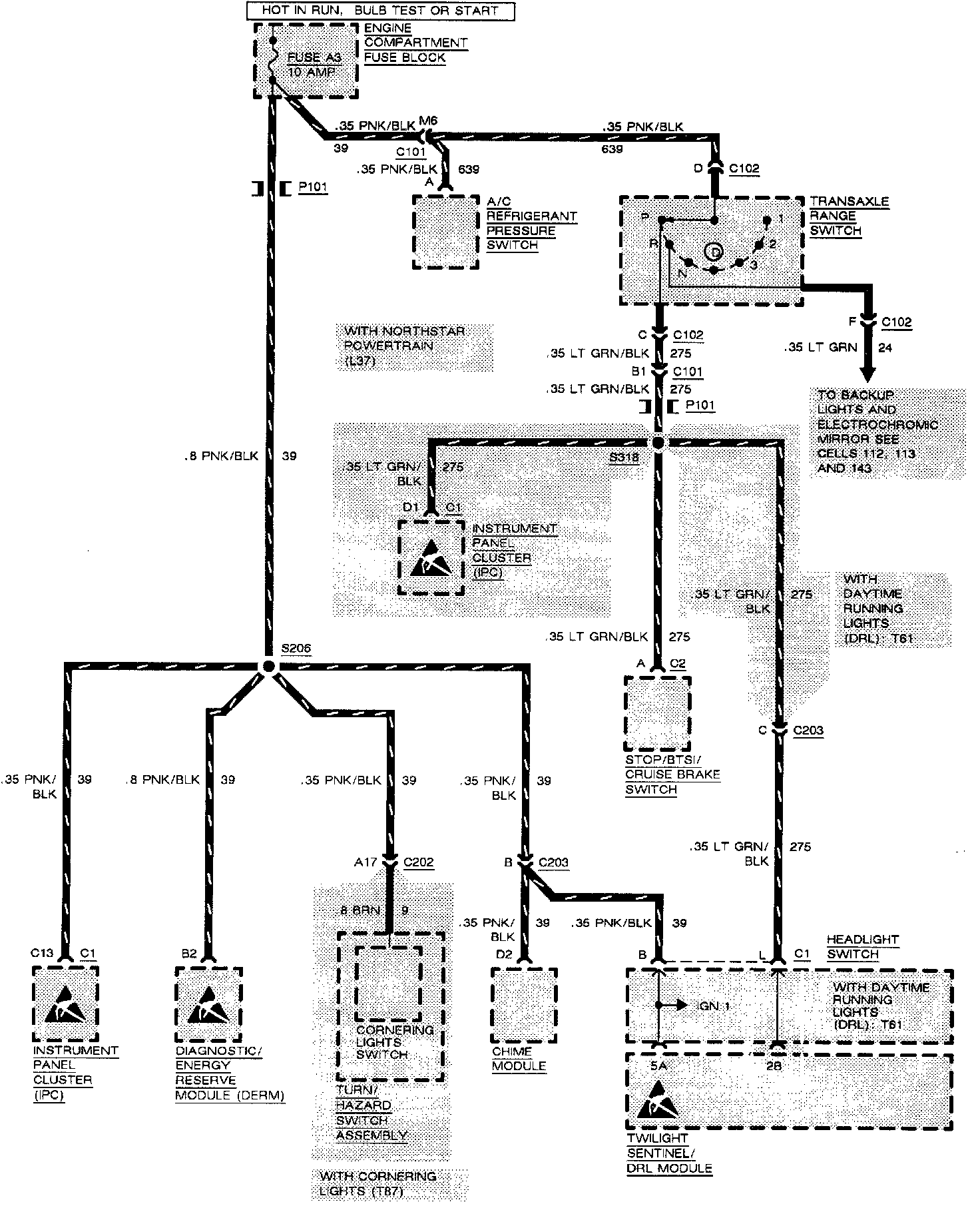

Without AUO

Fuse Block Details:
