Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

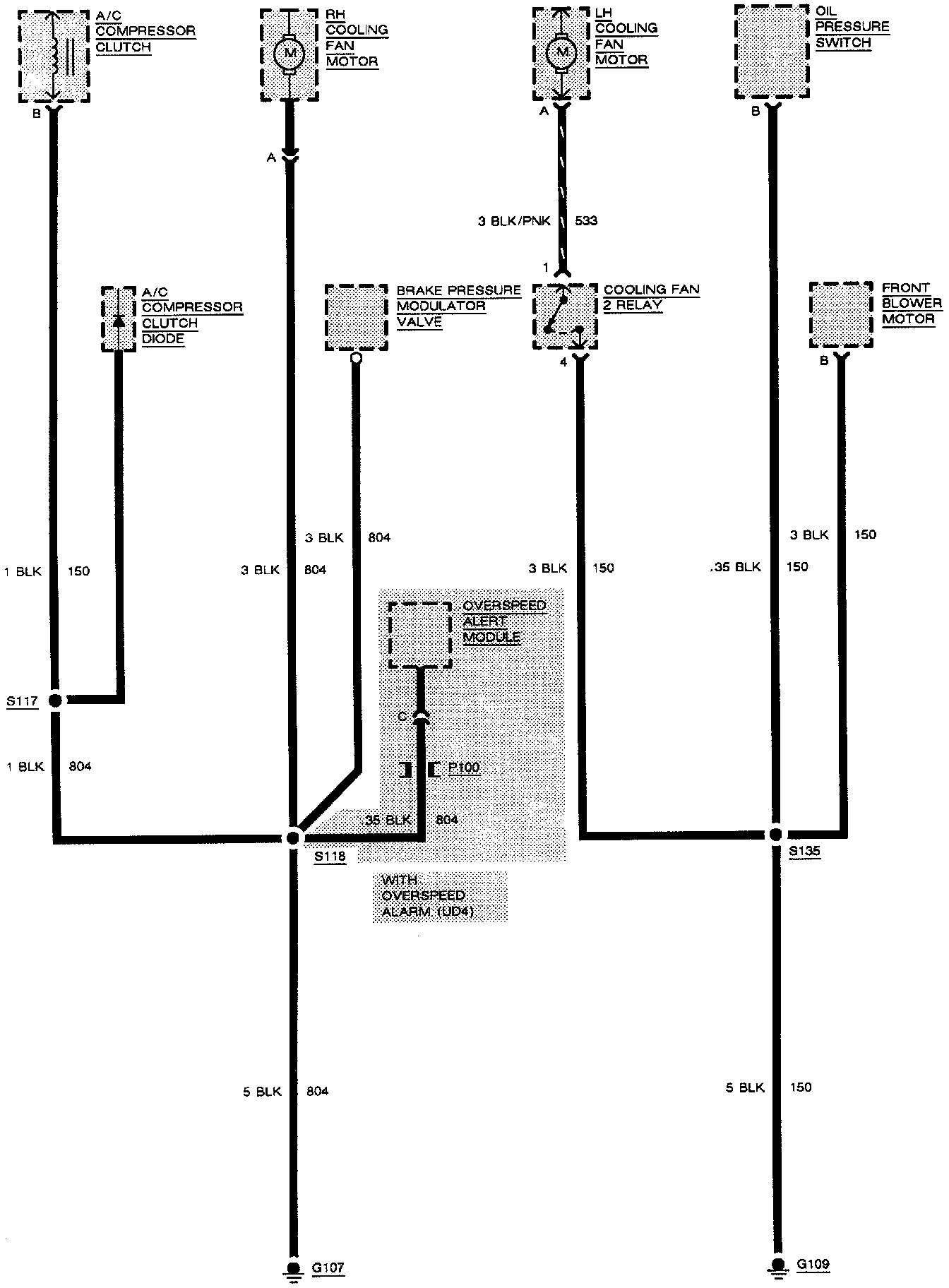

G107 & G109
G107 & G109
Ground Distribution:
