Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Component Tests and General Diagnostics >> Test A Chime Module Pinout Test

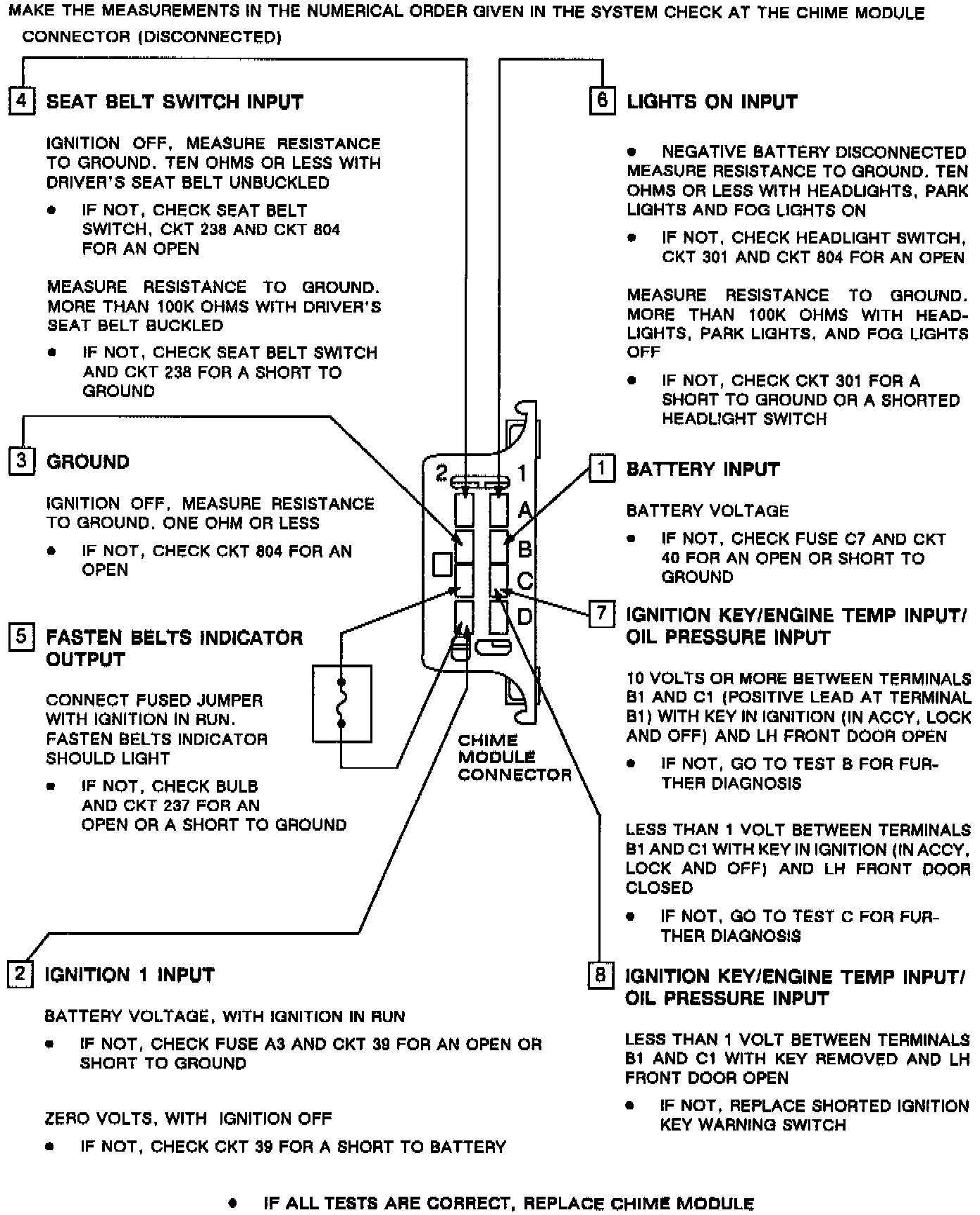

Test A Chime Module Pinout Test

Test A:
