Automatic Transmission/Transaxle
>>

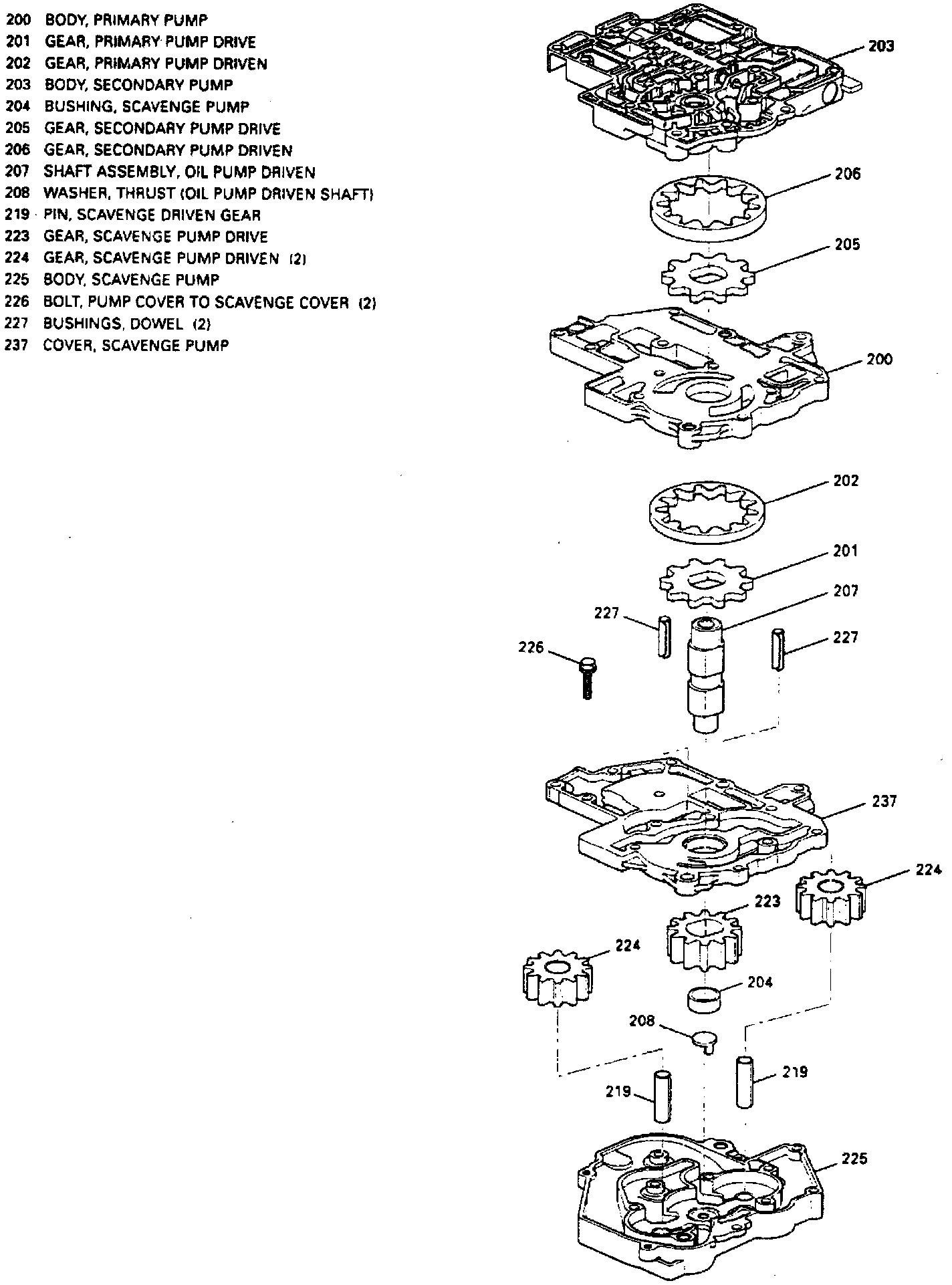

Scavenge, Primary and Secondary Fluid Pump Assemblies
Scavenge, Primary and Secondary Fluid Pump Assemblies
