Home
>>
Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Diagrams
>>
Engine Compartment
>>

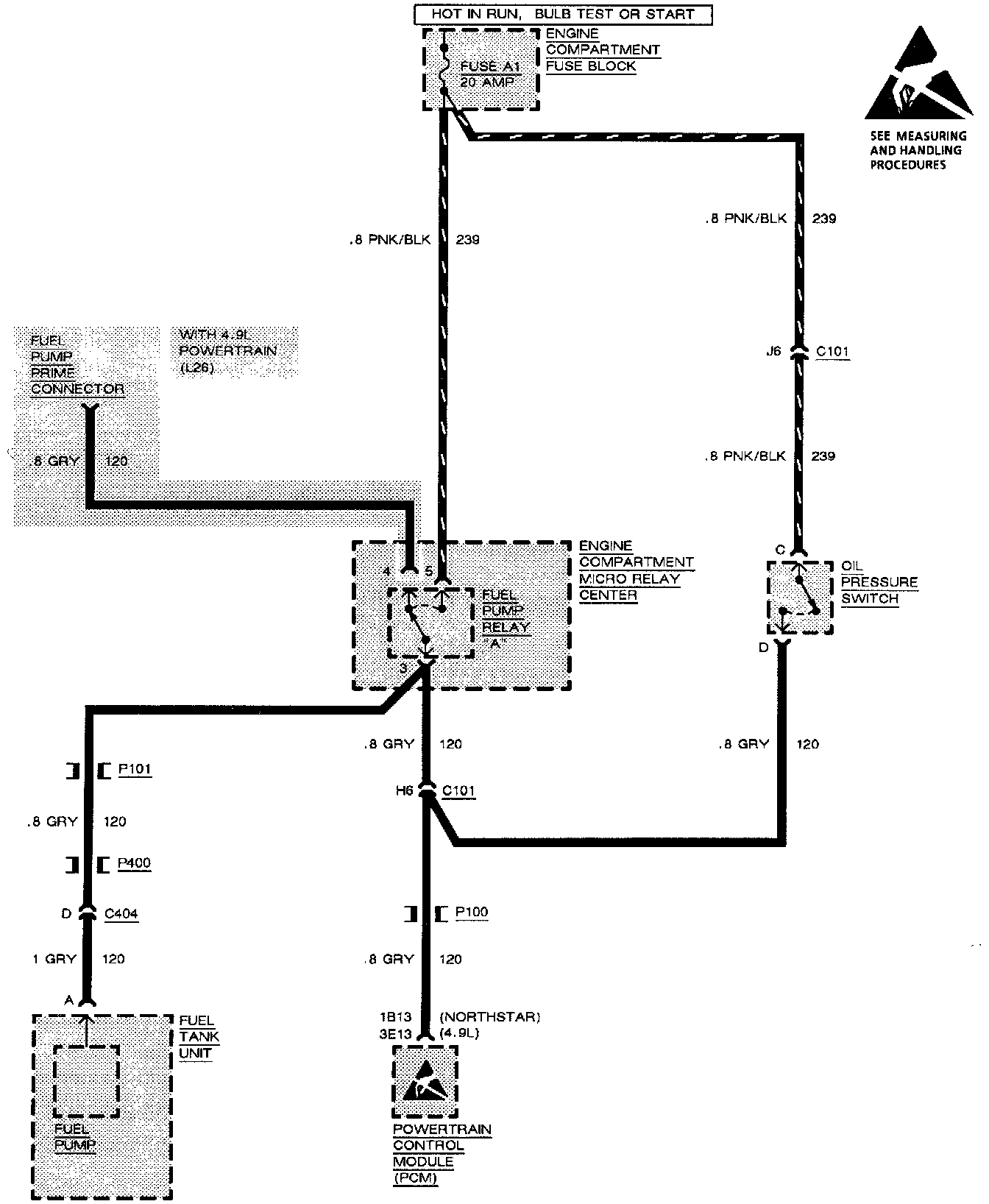

Fuse A1
Fuse A1
Fuse Block Details:
