Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>
With Electrochromic Mirrors
With Electrochromic Mirrors

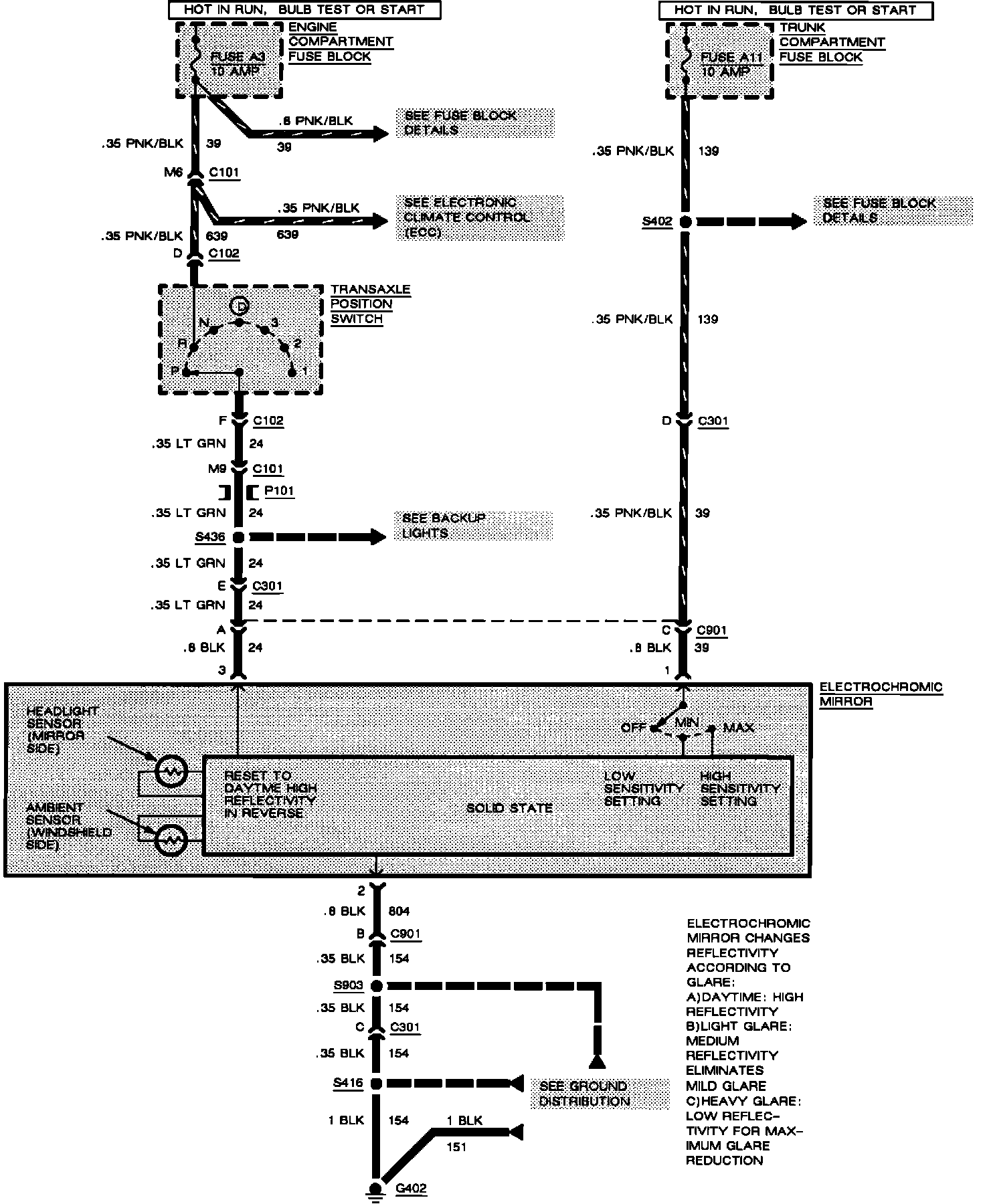

Wiring Diagram.:
