Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>

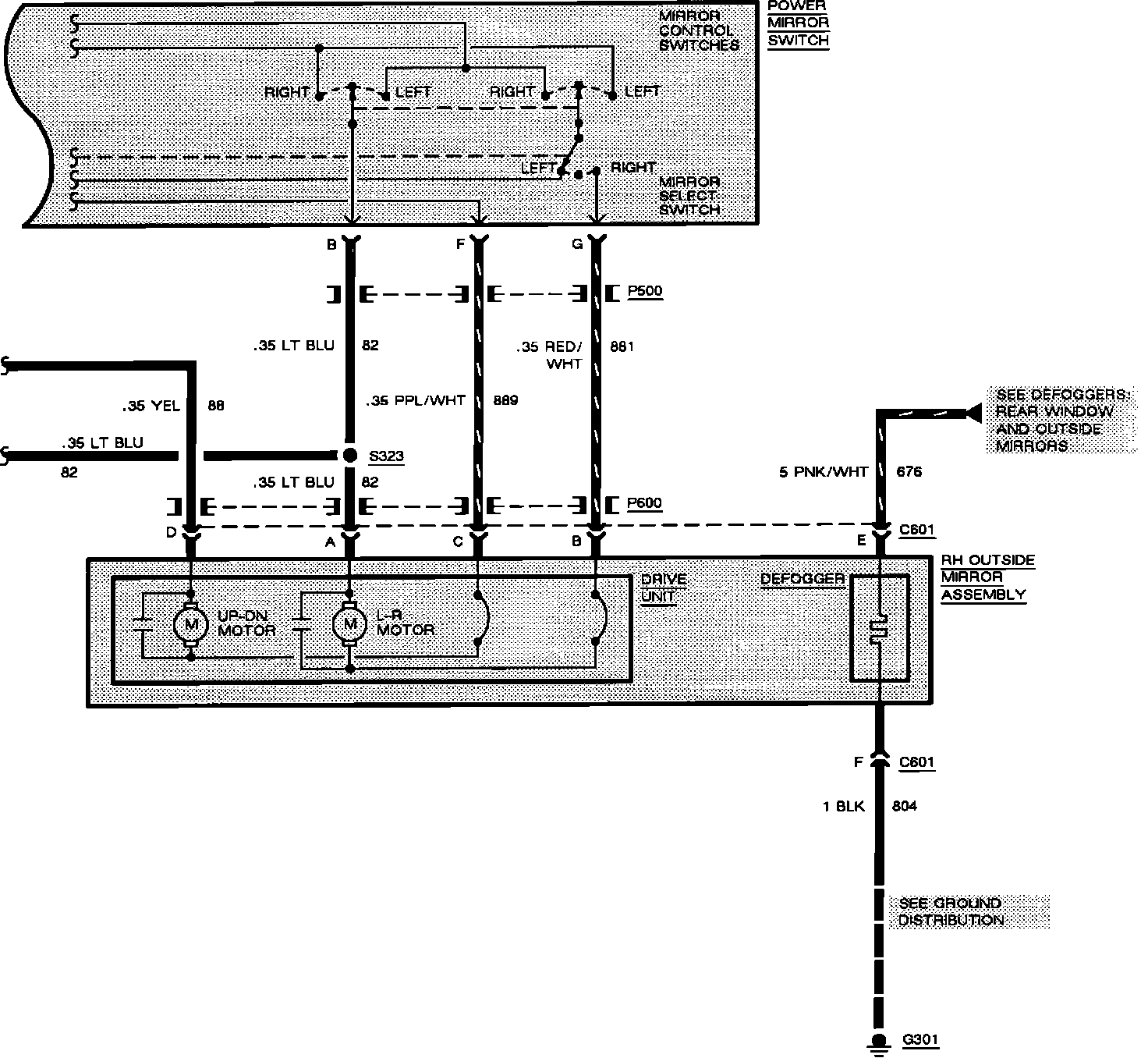

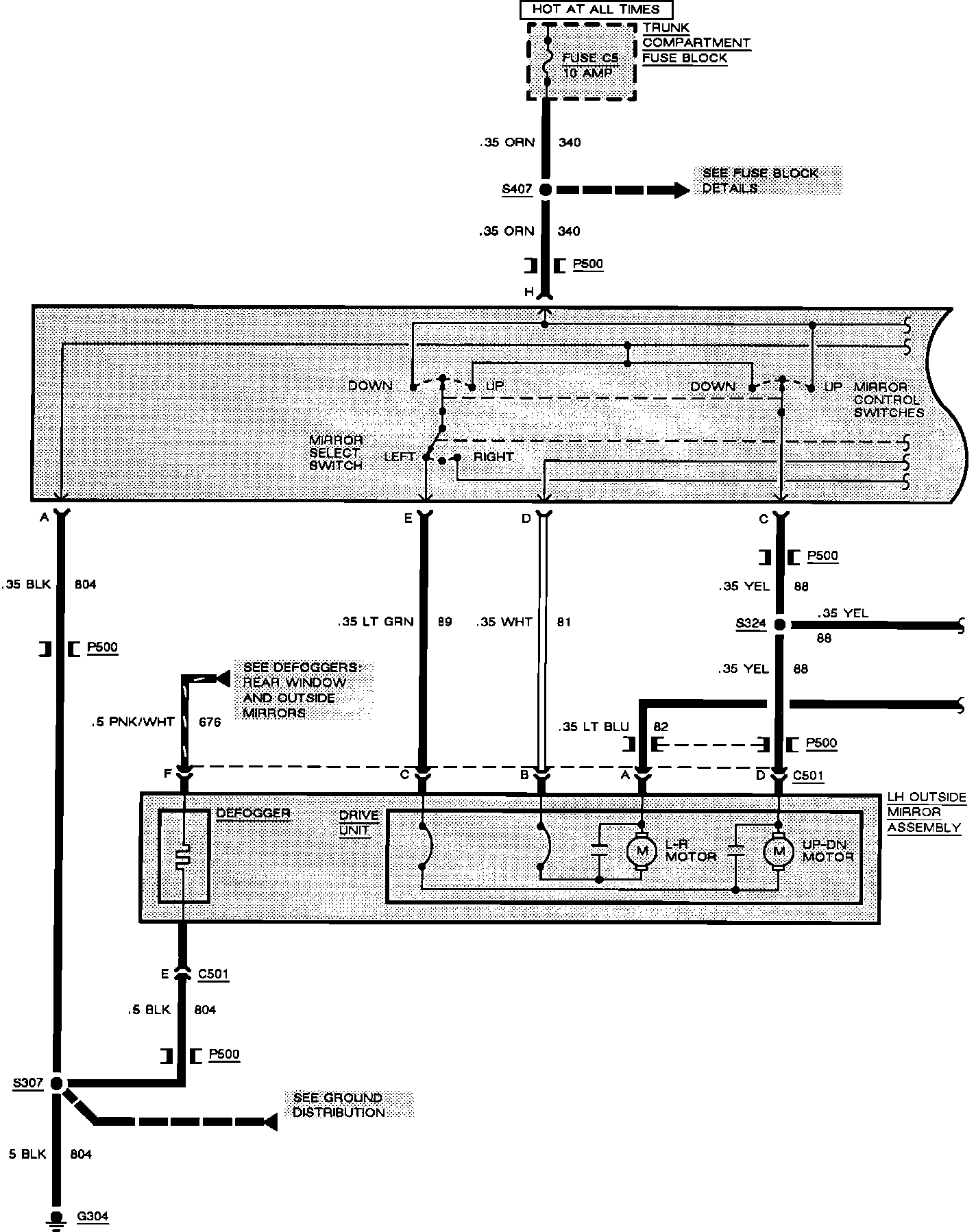

Power Mirror Wiring Circuit
Power Mirror Wiring Circuit
Wiring Diagram.:
Wiring Diagram.:
