Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Fog/Driving Lamp >> Export >> Rear

Rear

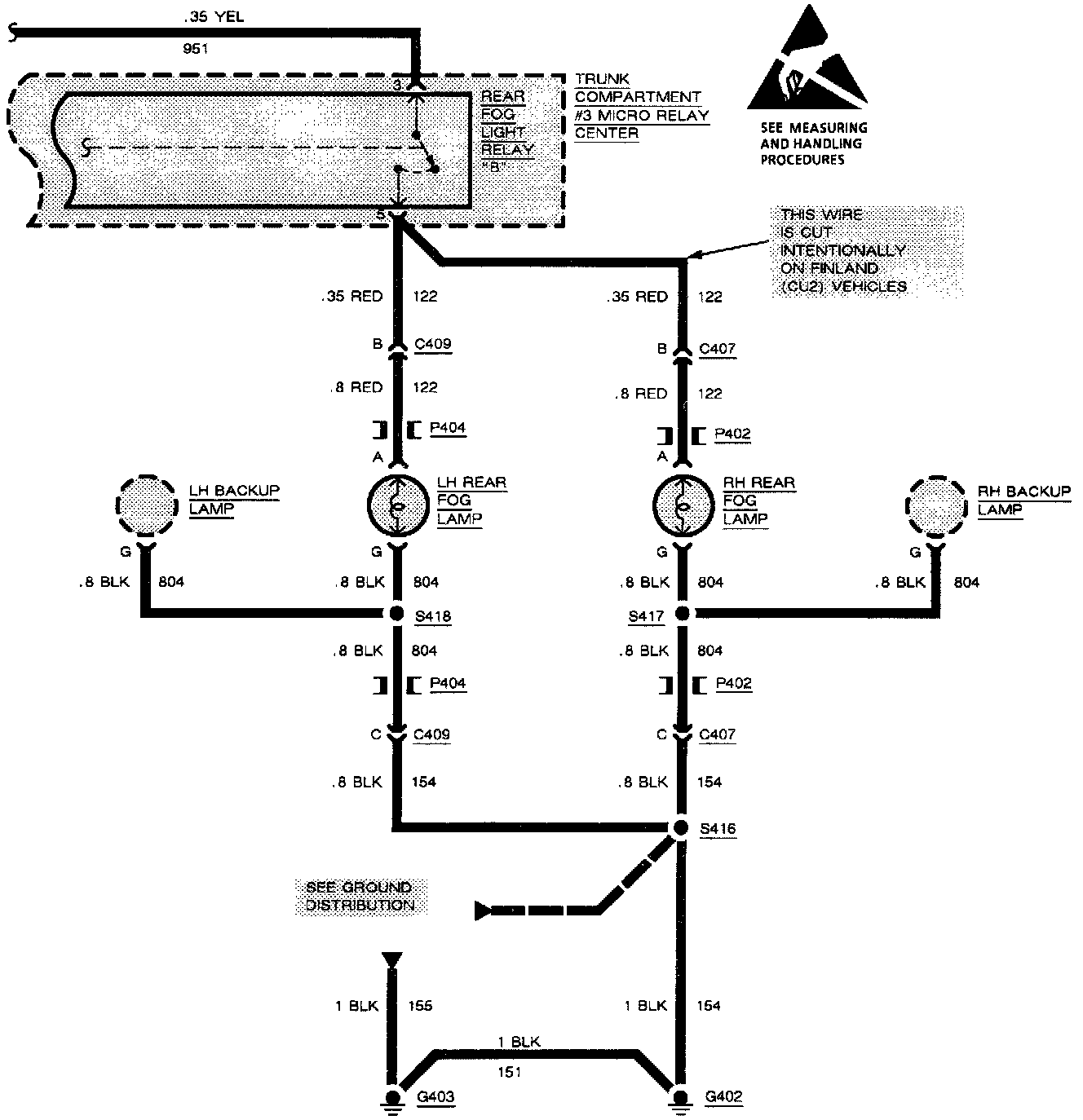

Rear Fog Lights:

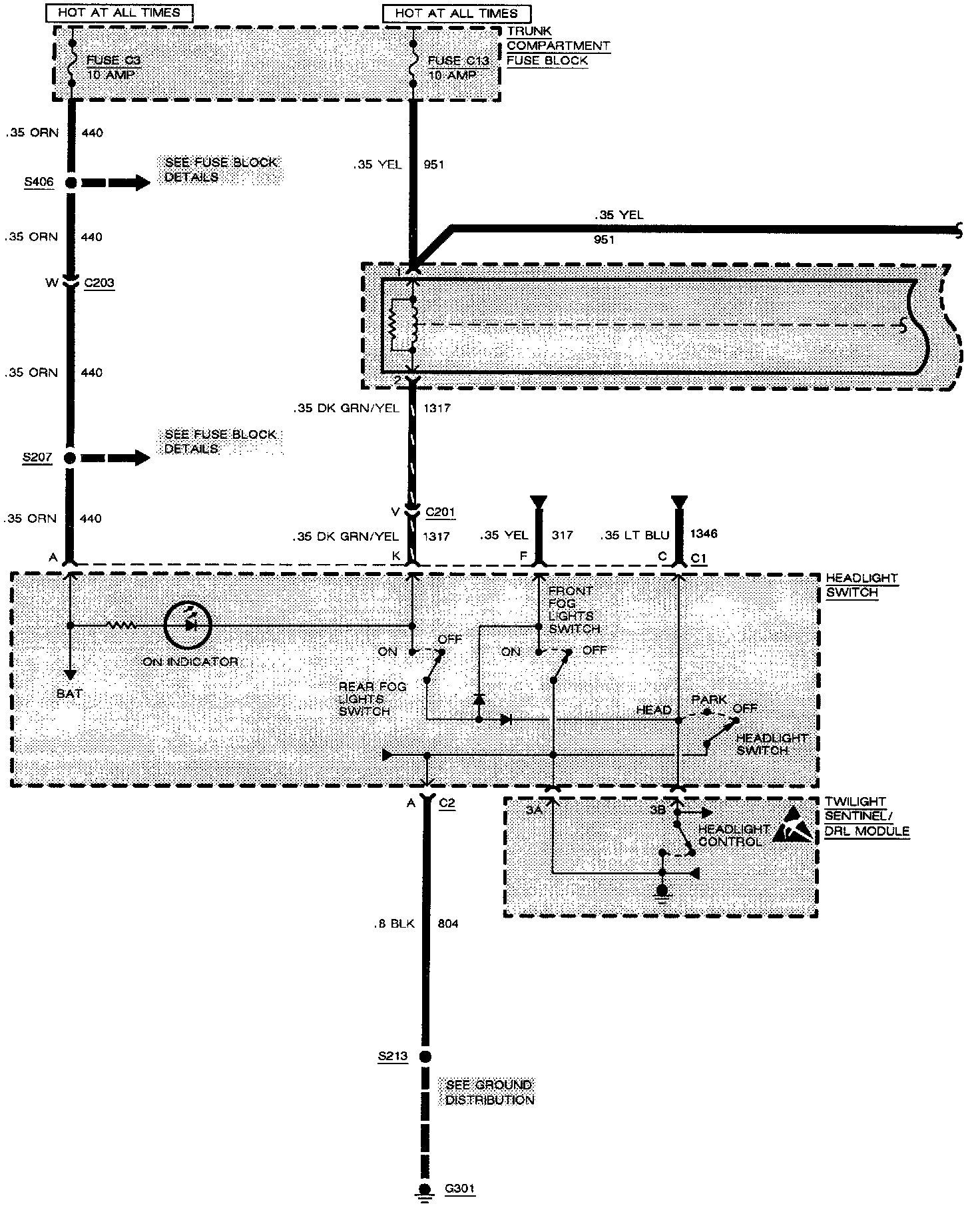

Rear Fog Lights Cont.:
