Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Blower Controls
>>
Rear Blower
Rear Blower

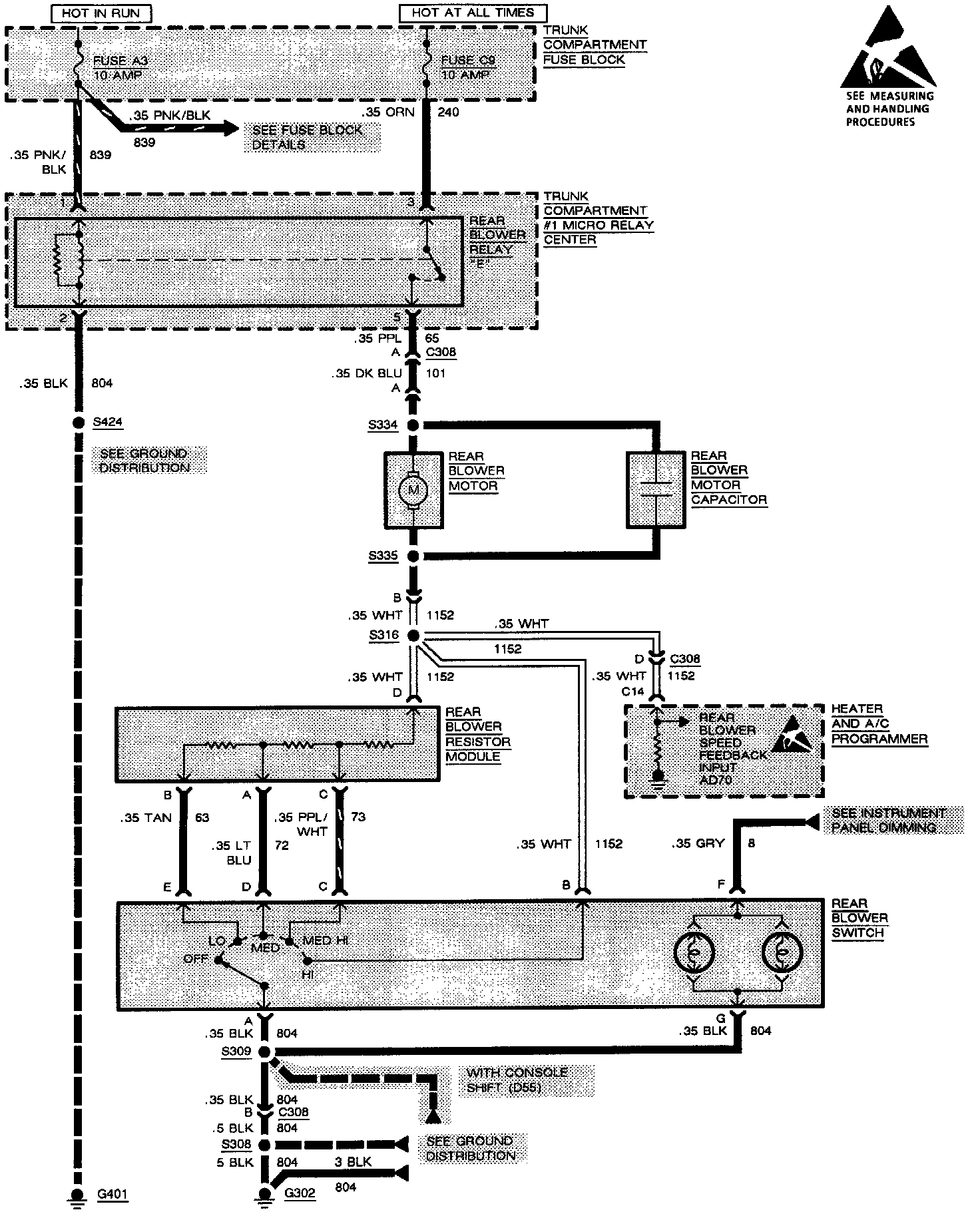

Electronic Climate Control (ECC) Rear Blower:
