Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> UART Data Line

UART Data Line

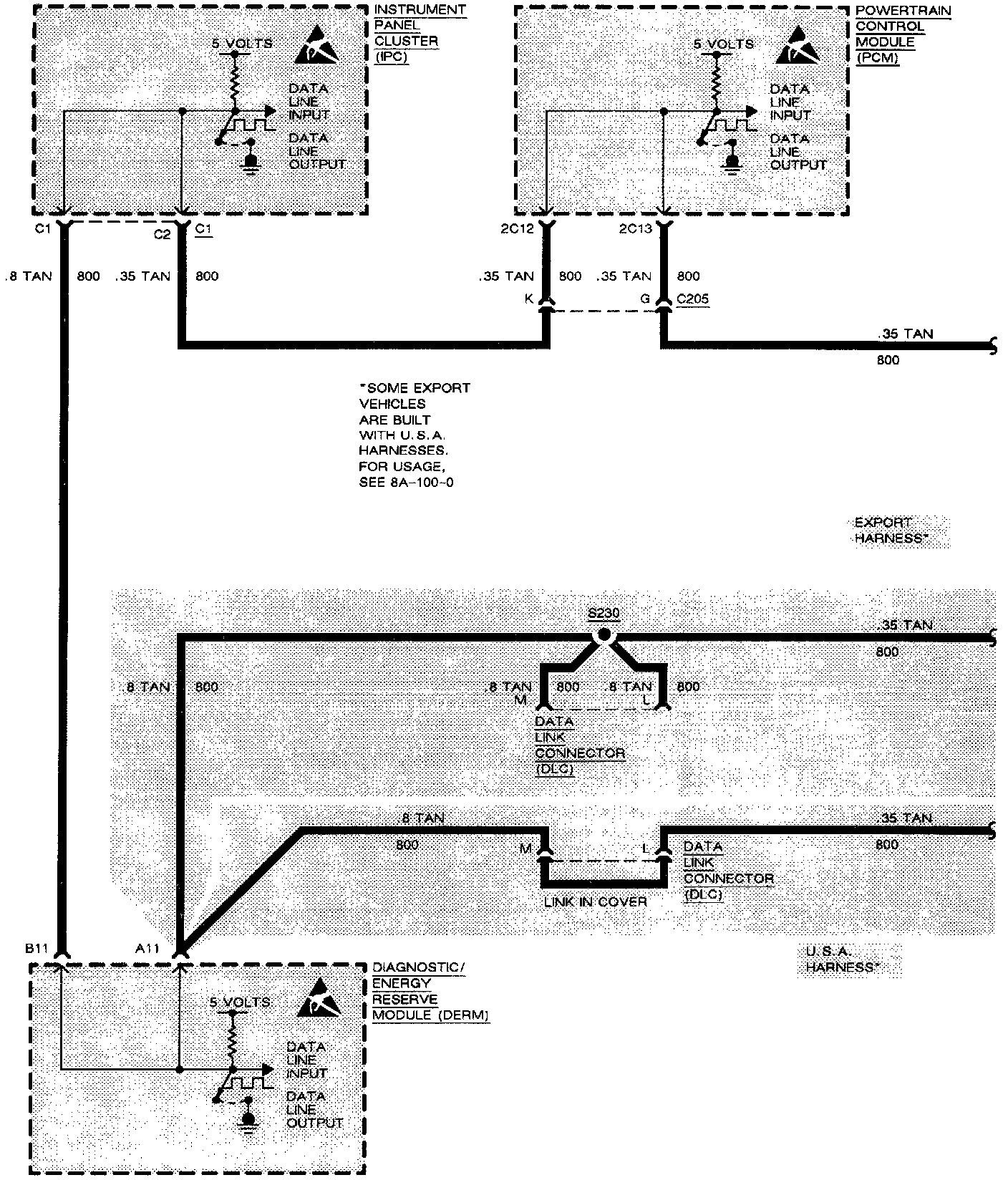

Uart Data Line:

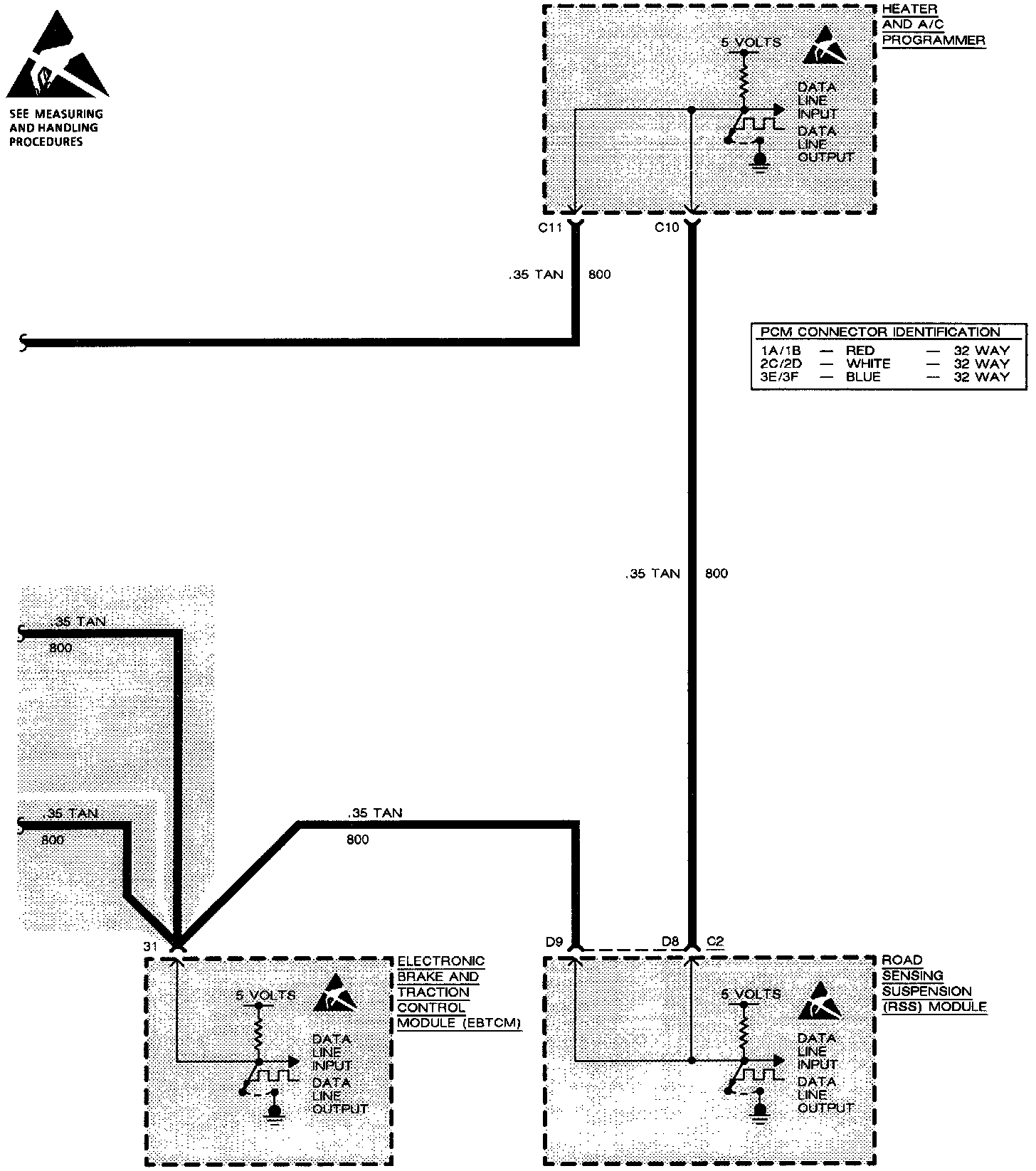

Uart Data Line Cont.:
