Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module >> Part 2 of 4

Part 2 of 4

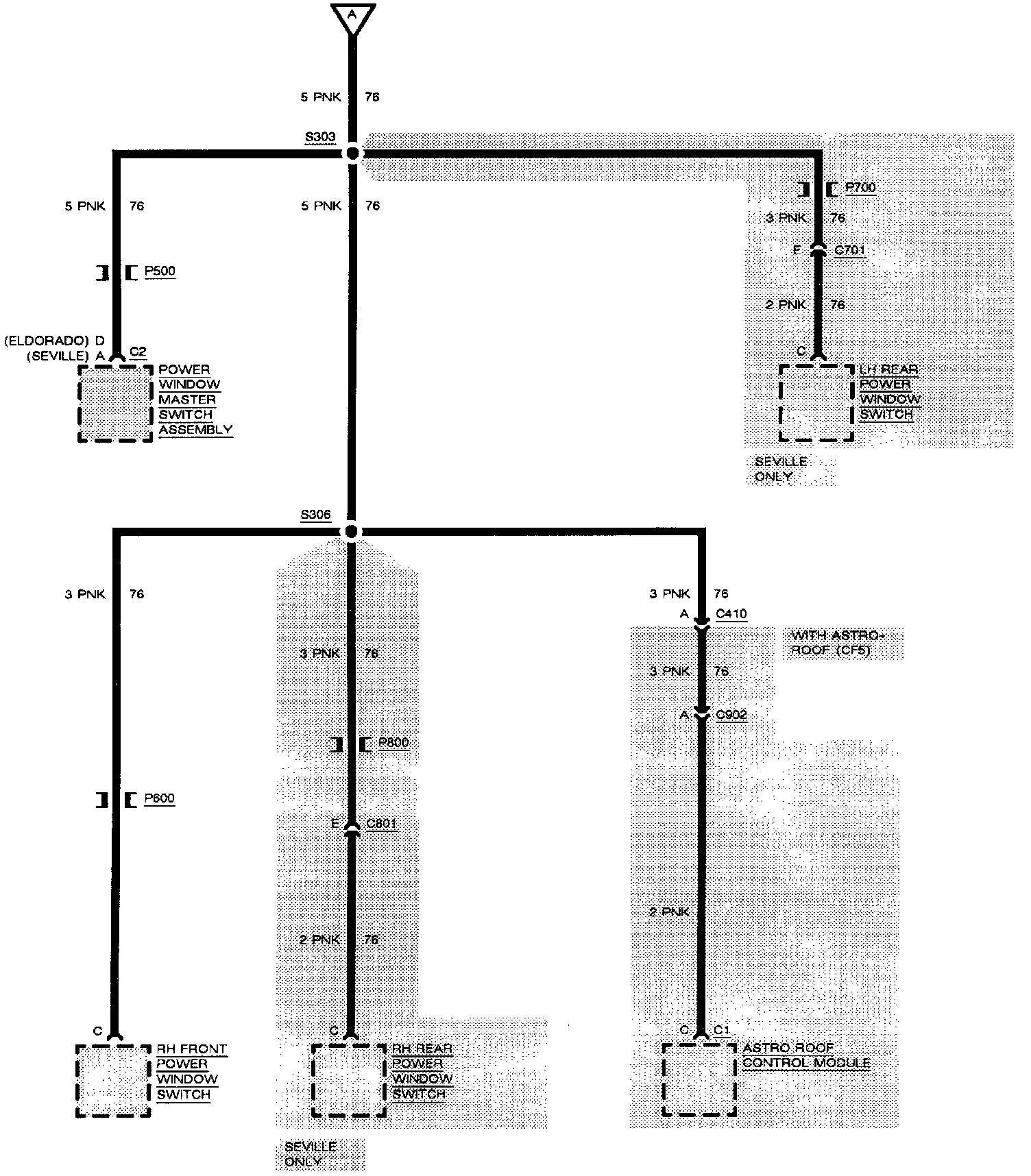

Retained Accessory Power (RAP) Cont.:
