Home
>>
Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>

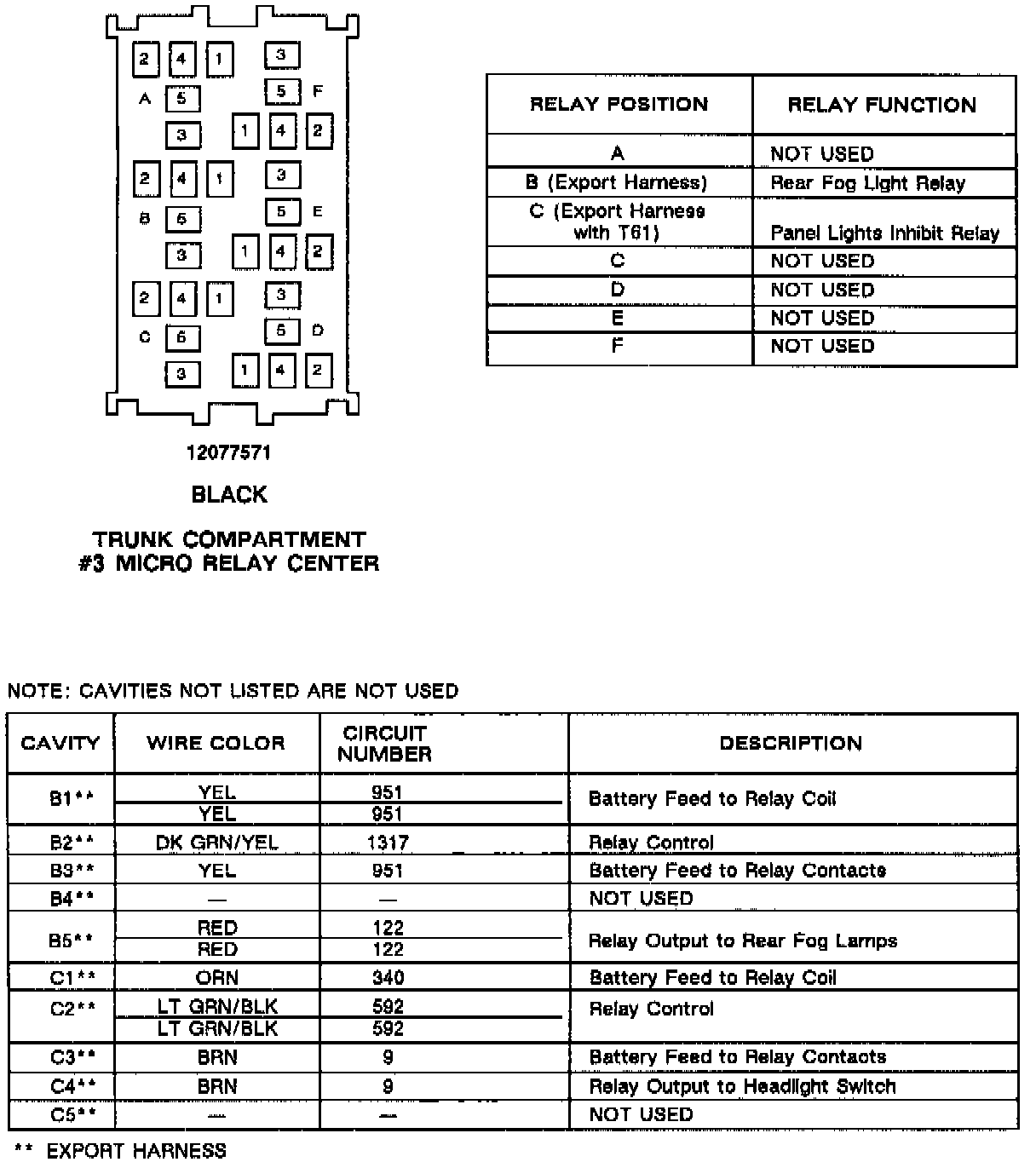

Trunk Compartment Micro Relay Center
>>
#3 Micro Relay Center
#3 Micro Relay Center
Trunk Compartment #3 Micro Relay Center Cont.:
