Home
>>
Cadillac
>>
1993
>>
Seville V8-281 4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Relay Box
>>

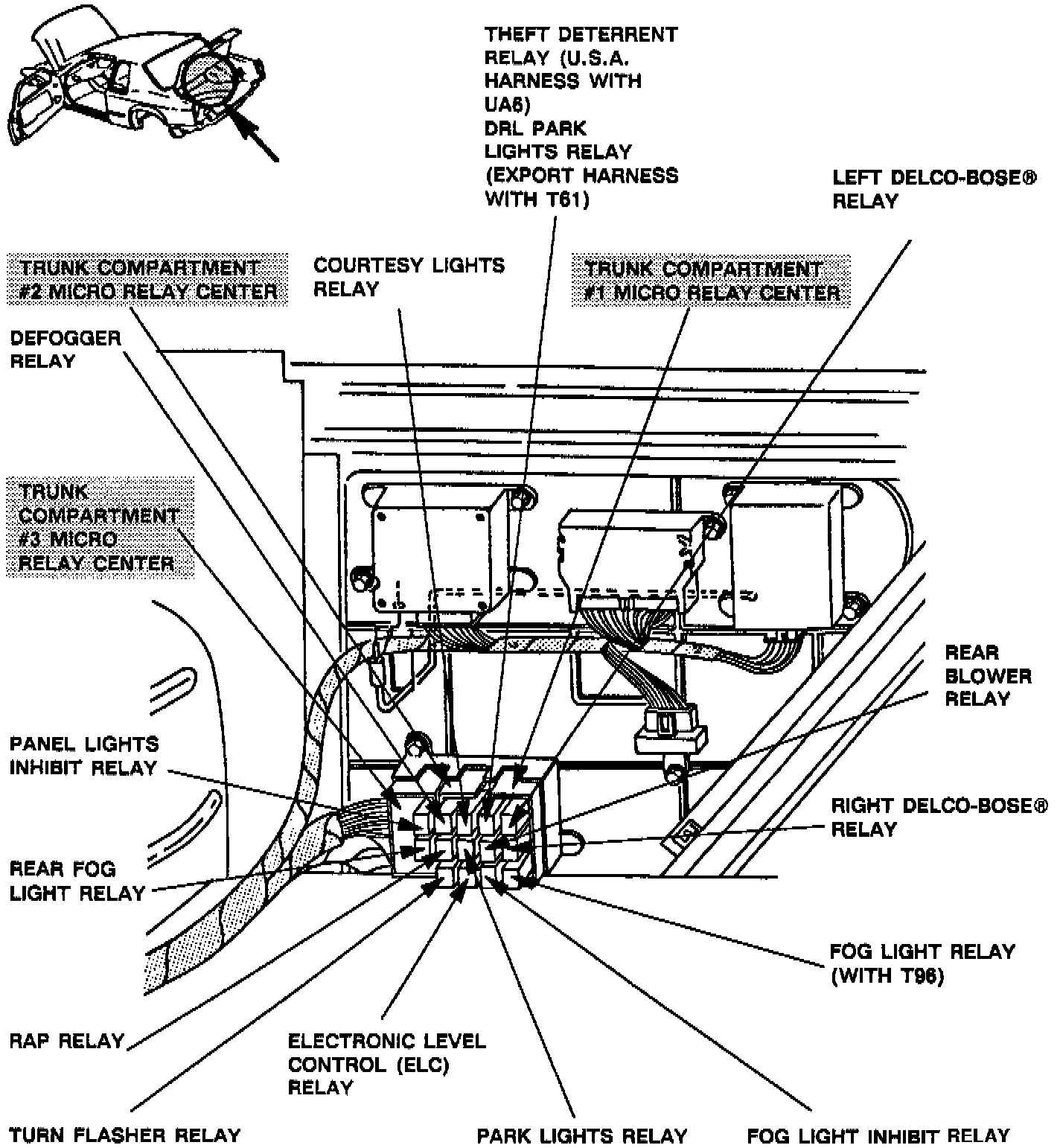

Trunk Compartment Micro Relay Center
>>
Relay Center Details
Relay Center Details
Relay Center Details:
Relay Center Details Cont.:
