Brake Master Cylinder: Description and Operation

Diagonal Split Master Cylinder:

DESCRIPTION

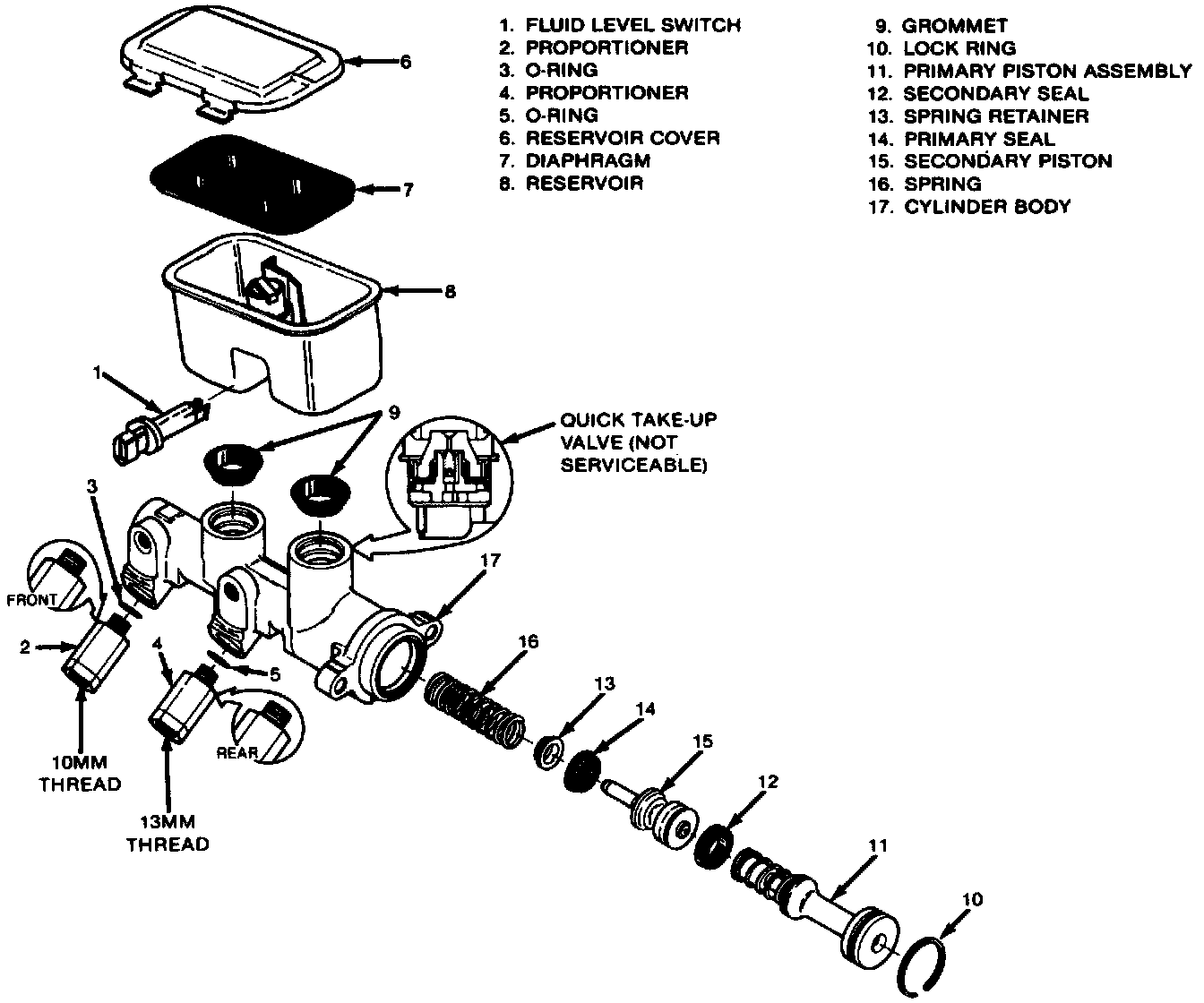

This master cylinder is a composite design (plastic reservoir and aluminum body). It supplies a diagonally split brake system (one front and one diagonally opposite rear brake served by the primary piston, and opposite front and rear brakes served by the secondary piston). It incorporates the functions of a standard dual master cylinder plus it has a fluid level sensor switch and integral proportioners.
