Front Door Window Area

VIII. Wind rush due to front door window belt molding to front door window reveal molding. Gap between the two moldings can be seen right behind the mirror.

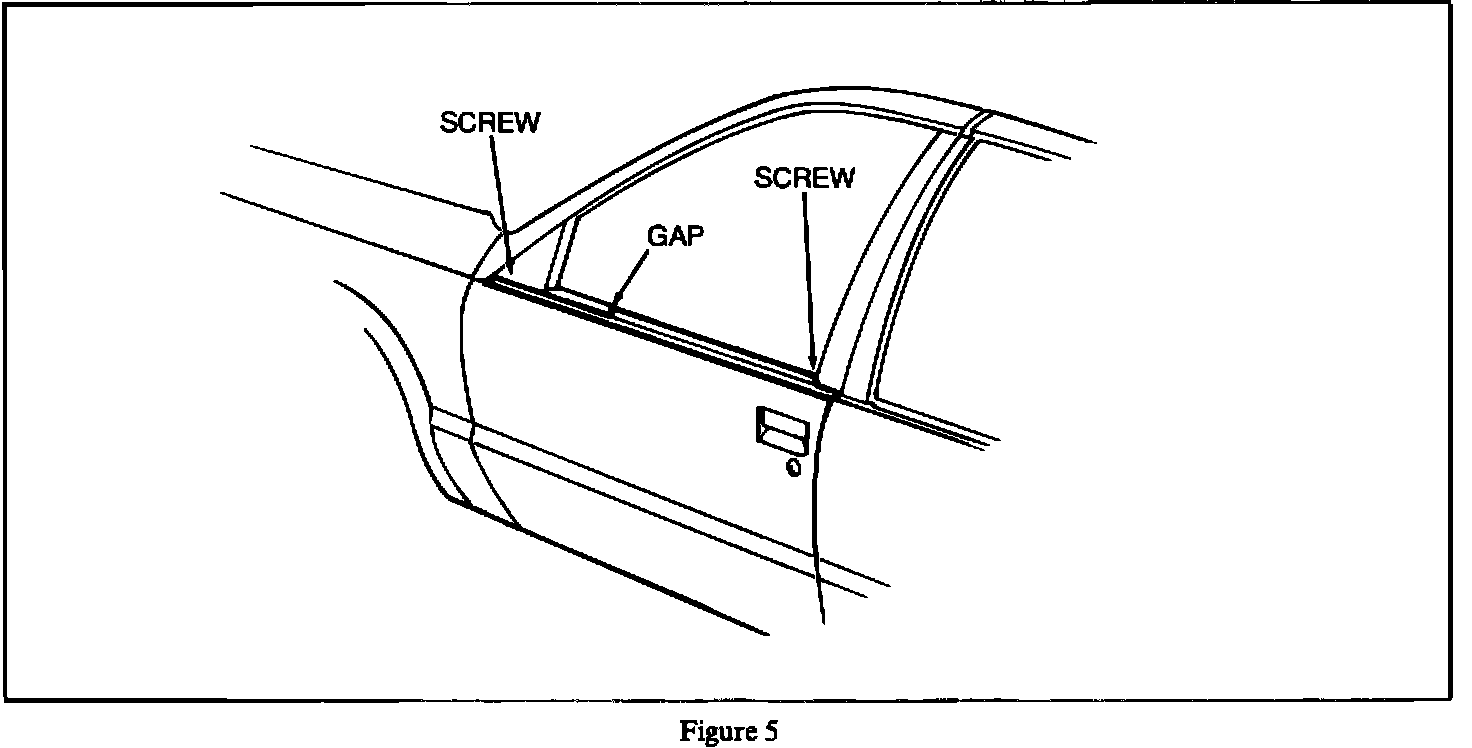

1. Loosen the front and rear screws of the front door belt reveal molding. Refer to Figure 5.

2. Tap the belt molding forward to close the gap to the front reveal.

3. Re-torque the screws.





Warranty Information

IX. Wind noise at front door window run channel to door frame.

1. Lower door glass.

2. Remove the window run channel from the retainer in the header of the door frame by pulling down and outboard on the run channel.

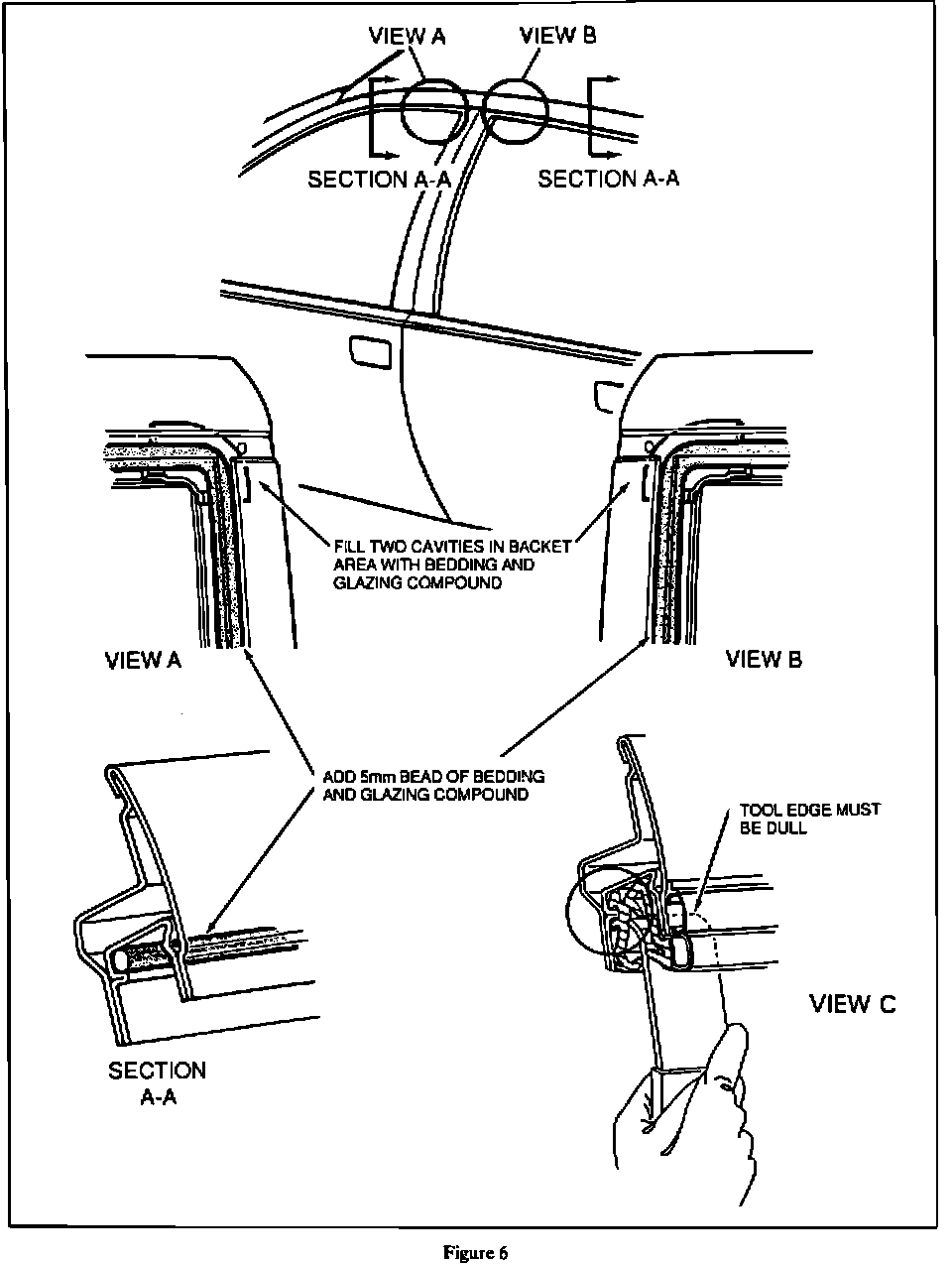

3. Using bedding and glazing compound, run a 5 mm bead around the inboard edge of the retainer. Refer to Figure 6, Section A-A.

4. Using bedding and glazing compound fill the two cavities in the upper rear corner of the door frame. Refer to Figure 6, View A.

5. Spray window run channel with glass cleaner for ease of installation.

6. Reinstall the window run channel using a flat-bladed tool to ensure that the run channel is fully seated in the retainer. Refer to Figure 6, View C.
