Home
>>
Cadillac
>>
1993
>>
Fleetwood FWD V8-300 4.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
Passkey Decoder Module
Passkey Decoder Module

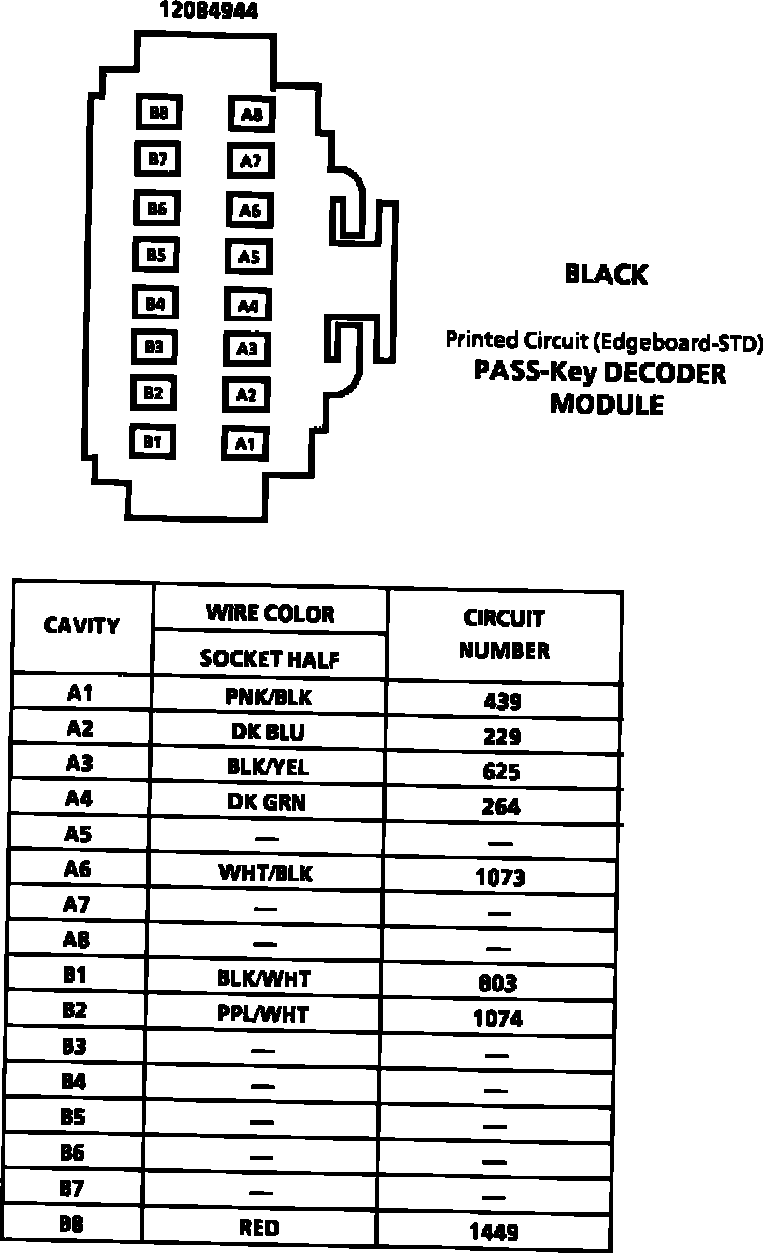

Pass-Key Decoder Module Connector Face:
