Chart 8 Inoperative HVAC Control Assembly
Chart 8 Inoperative HVAC Control Assembly

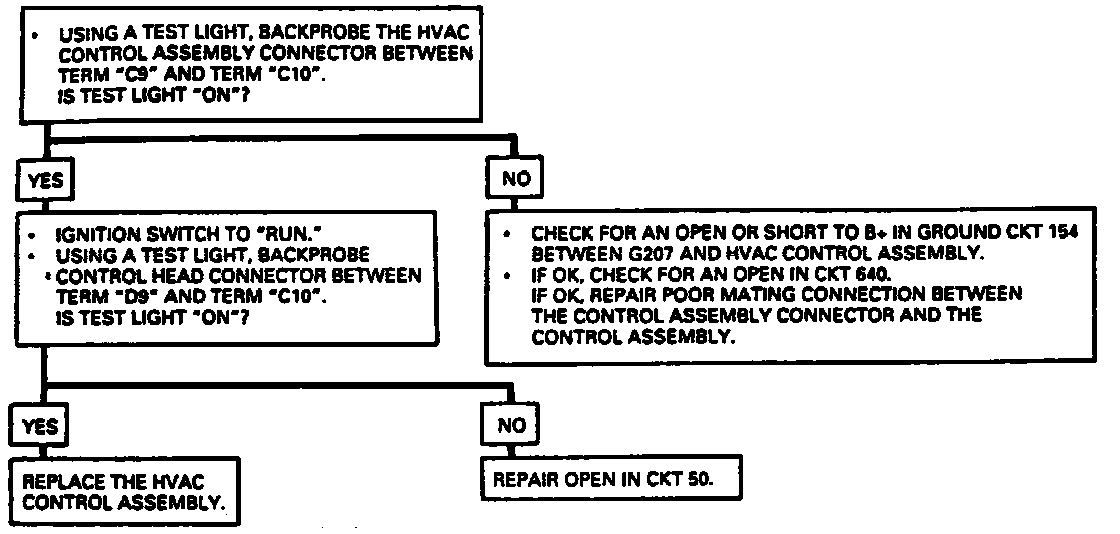

Diagnostic Chart:
