Power Seat Switch (Driver or Passenger)
Power Seat Switch (Driver or Passenger)

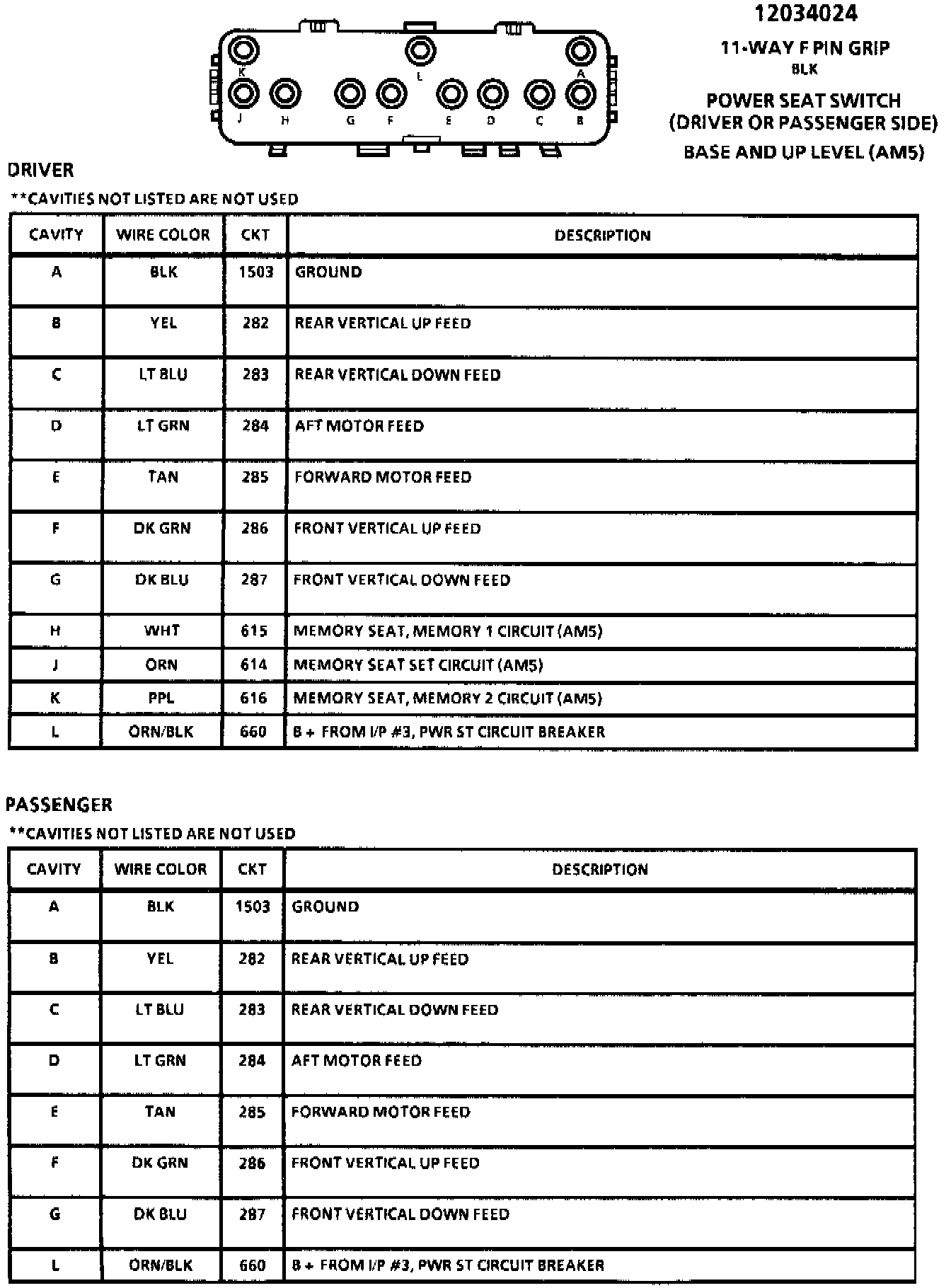

Power Seat Switch (Driver Or Passenger Side) Base And Up Level (AM5):
