Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1993
>>
Fleetwood Brougham V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Injection Pump Relay
Air Injection Pump Relay

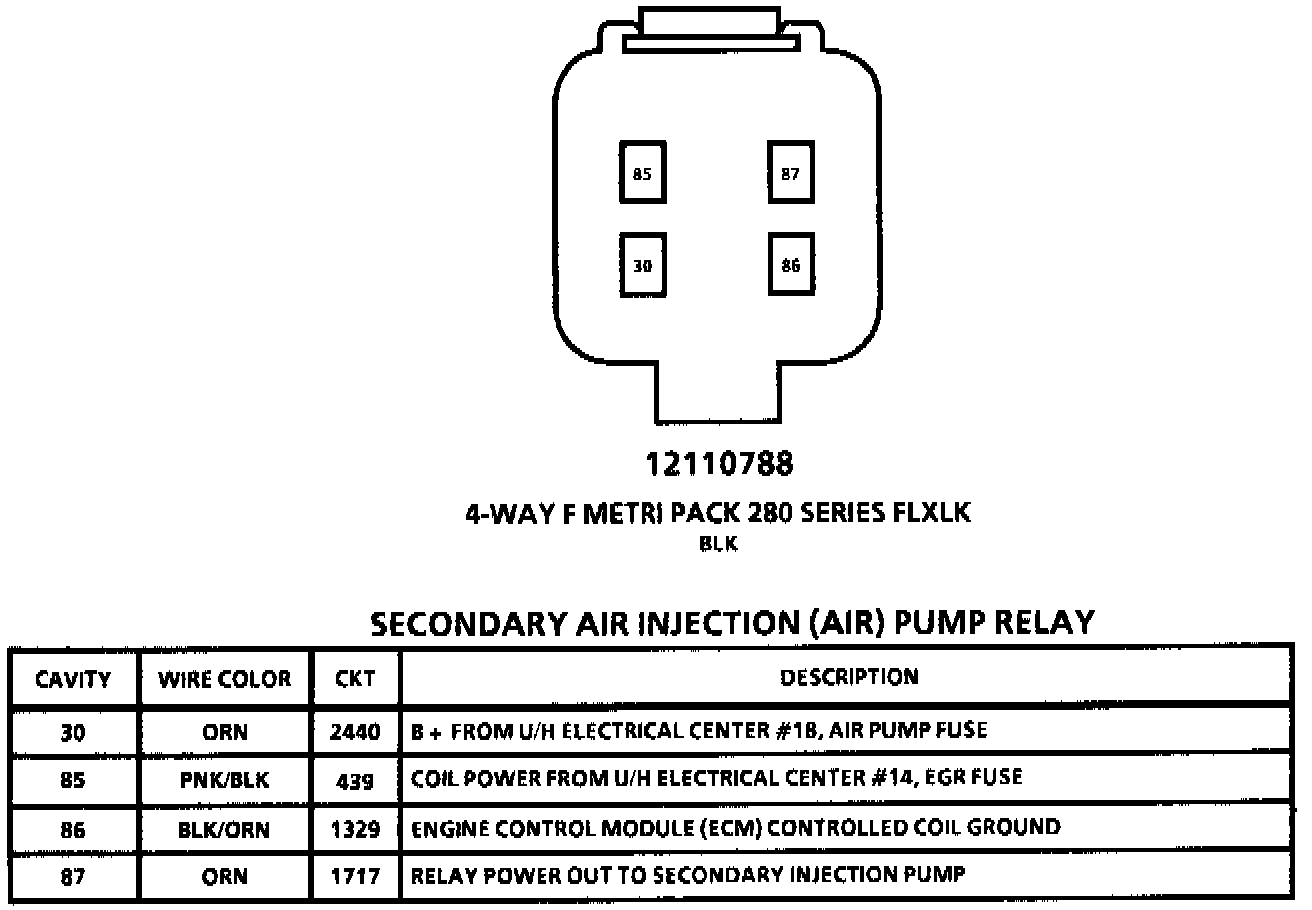

Relays: Secondary Air Injection (AIR) Pump Relay:
