Vehicle Speed Sensor Troubleshooting Chart No. 2
Vehicle Speed Sensor Troubleshooting Chart No. 2

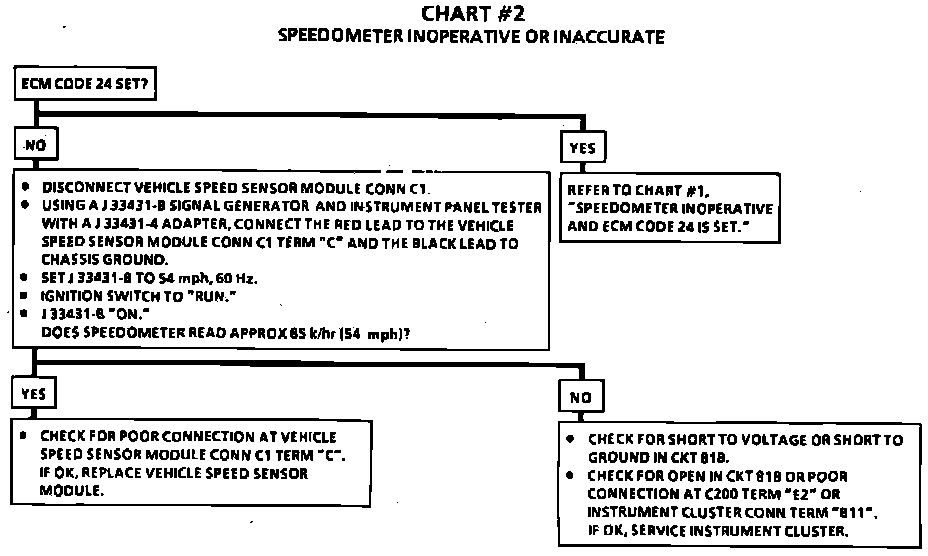

Fig. 32 Vehicle Speed Sensor Troubleshooting Chart No. 2:
