Audible Warning Device Control Module
Audible Warning Device Control Module

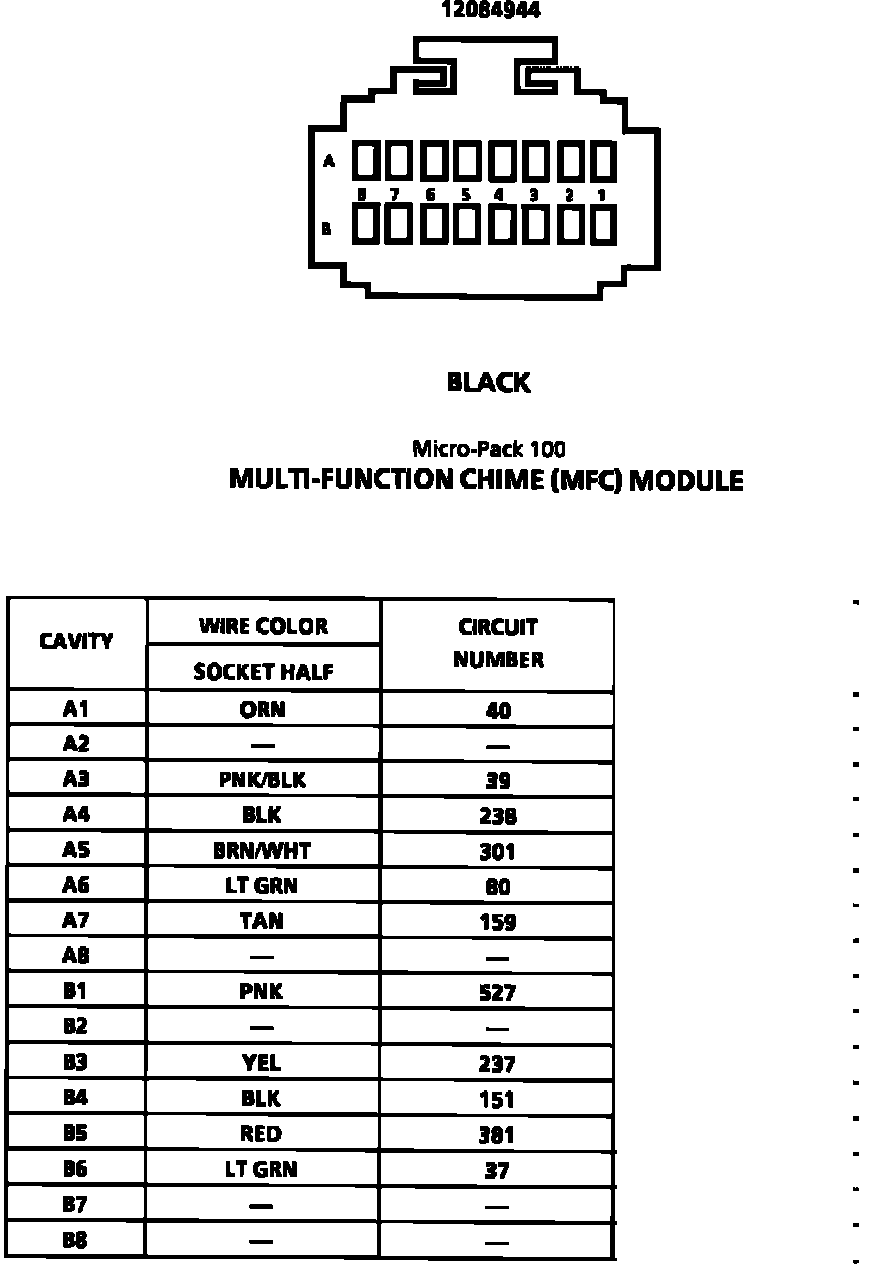

Multi-Function Chime (MFC) Module Connector Face:
