Home
>>
Cadillac
>>
1992
>>
Fleetwood FWD V8-300 4.9L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Sensors and Switches - Cruise Control
>>
Cruise Control Switch
>>
Testing and Inspection
>>
ECM Input Test E7.5 - C/C On/Off Switch
ECM Input Test E7.5 - C/C On/Off Switch

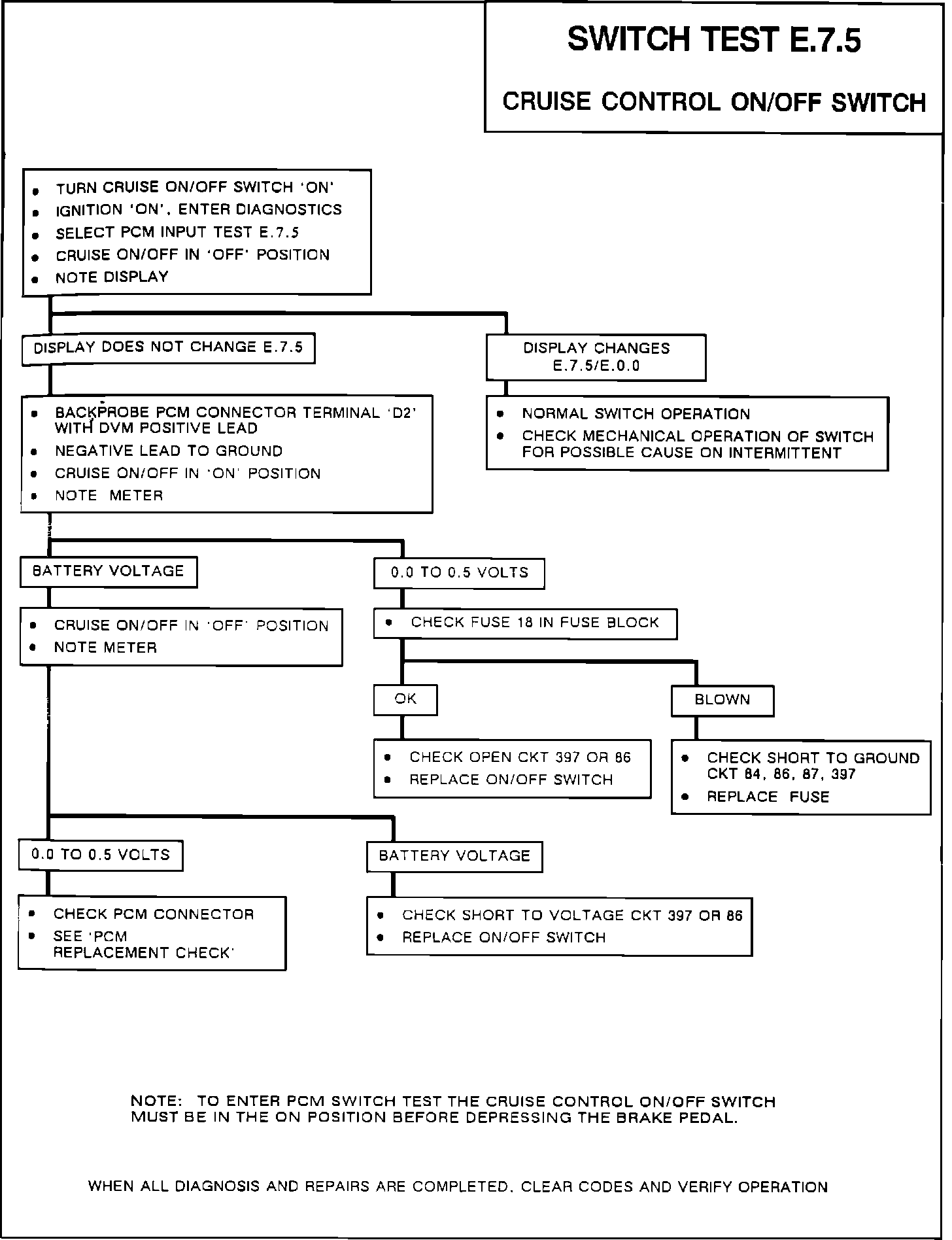

Fig. 16 ECM Input Test E7.5:
