ECM Input Test E7.7 - C/C Resume/Accel Switch
ECM Input Test E7.7 - C/C Resume/Accel Switch

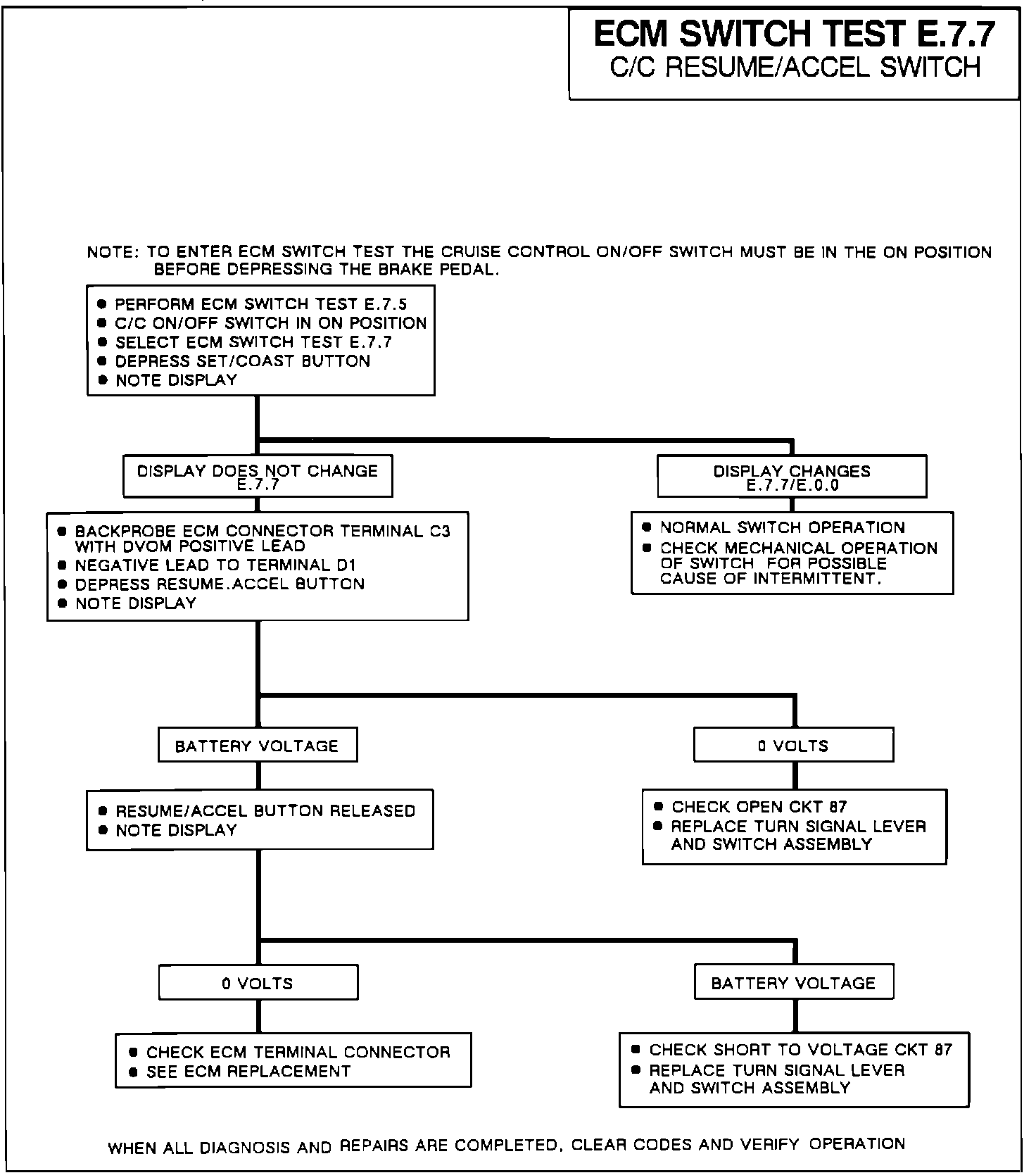

Fig. 20 ECM Input Test E7.7:
