Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Purge solenoid electrical connector and hoses.
3. Canister bolts and cannister


INSTALL

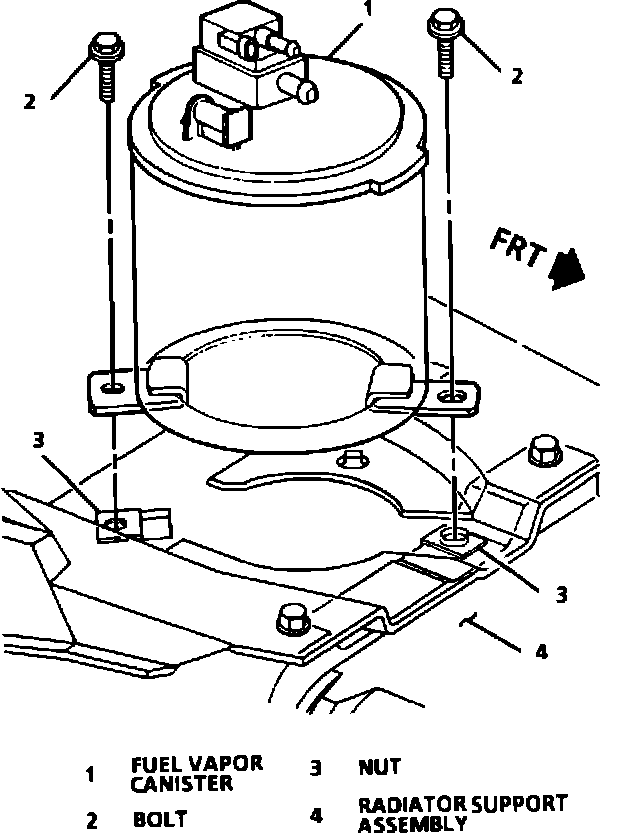

1. Cannister as removed. Make sure canister is positioned as shown in figure.
2. Purge solenoid electrical connector and hoses.
3. Negative battery cable.
