Cadillac
>>
1992
>>
Fleetwood Brougham V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Ambient Light Sensor
Ambient Light Sensor

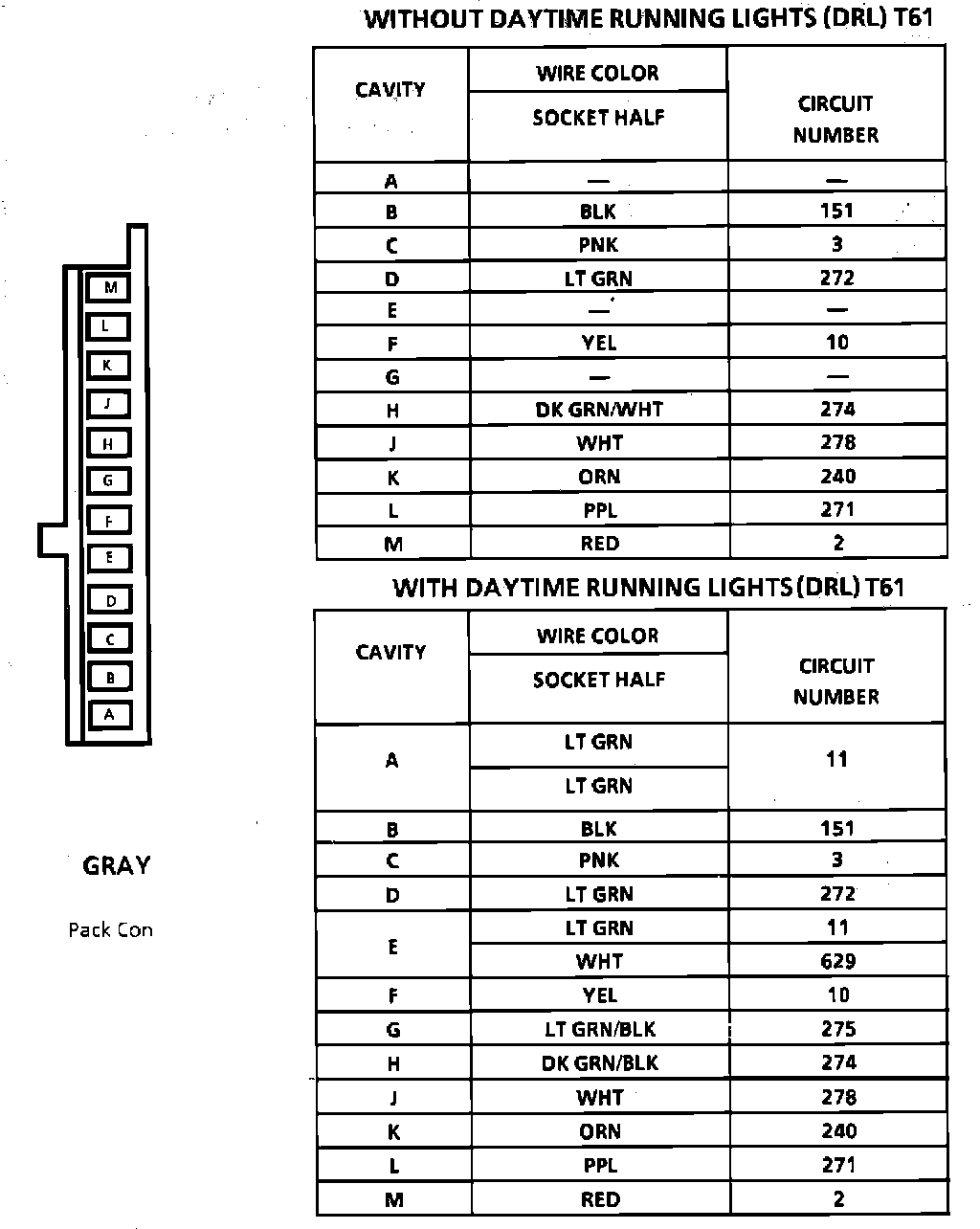

Sentinel Amplifier Connector Face:
