Cadillac
>>
1992
>>
Fleetwood Brougham V8-350 5.7L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Hydraulic Assembly
>>
Testing and Inspection
Hydraulic Assembly: Testing and Inspection

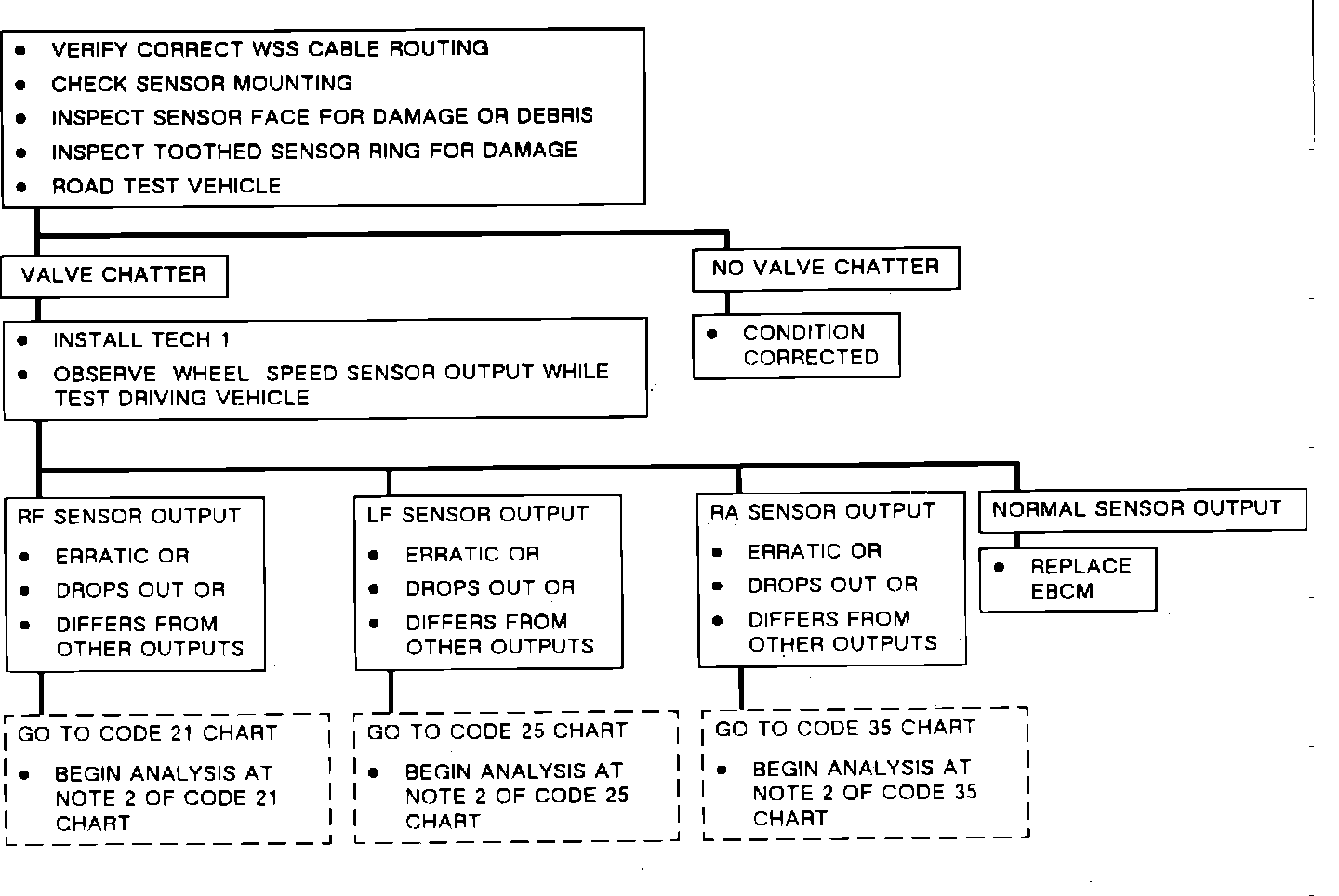

Fig. 48 Chart D, Valve Cycling During Normal Stops (Part 1 of 2):

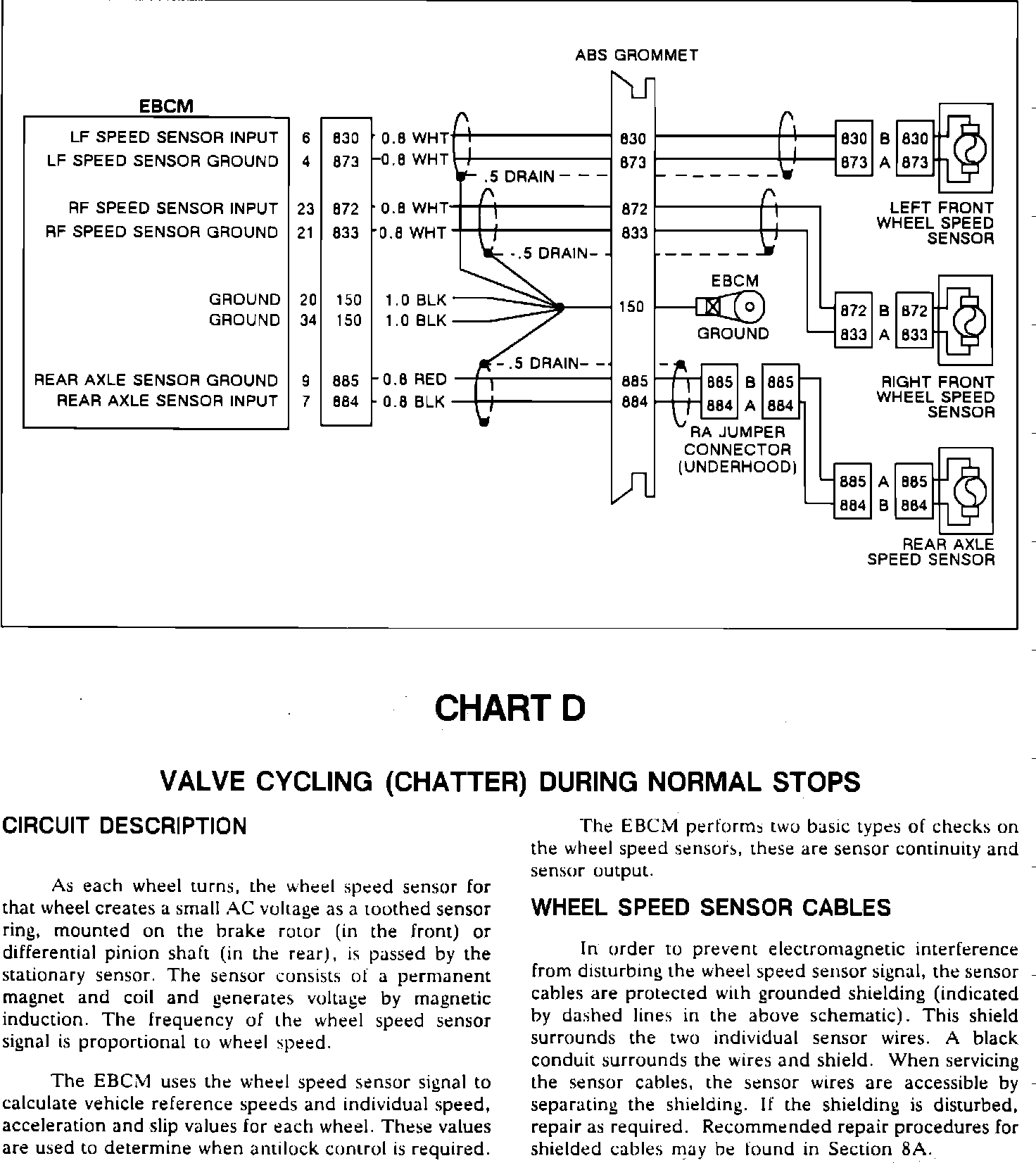

Fig. 48 Chart D, Valve Cycling During Normal Stops (Part 2 of 2):
