Shift Cable: Adjustments

SHIFT CONTROL CABLE ADJUSTMENT

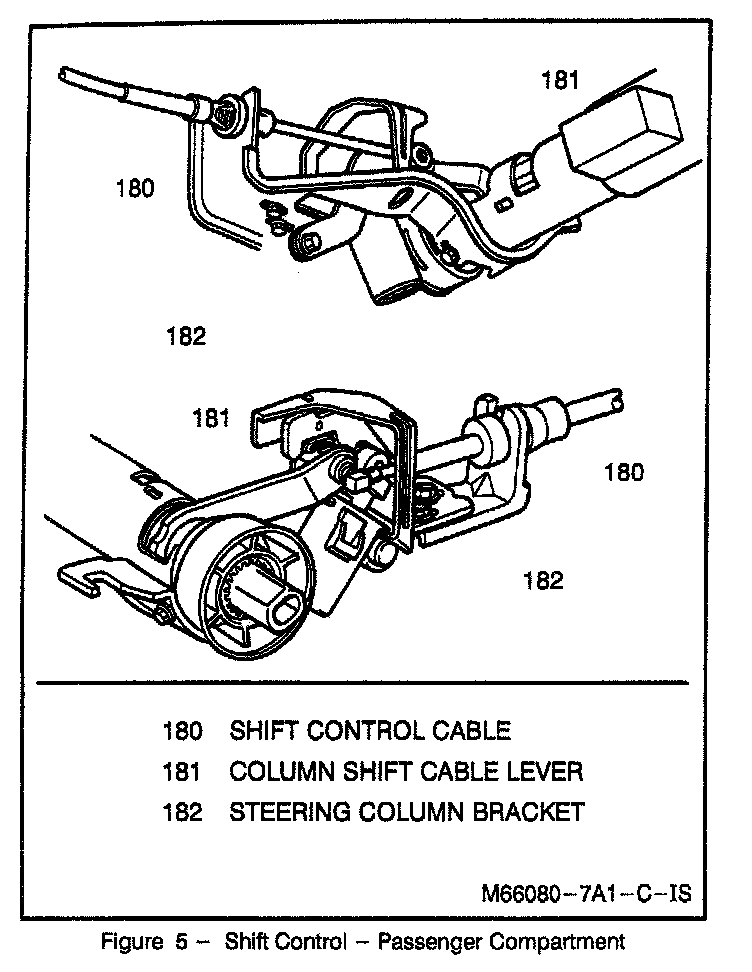

1. Place column shift lever (181) in N (Neutral).

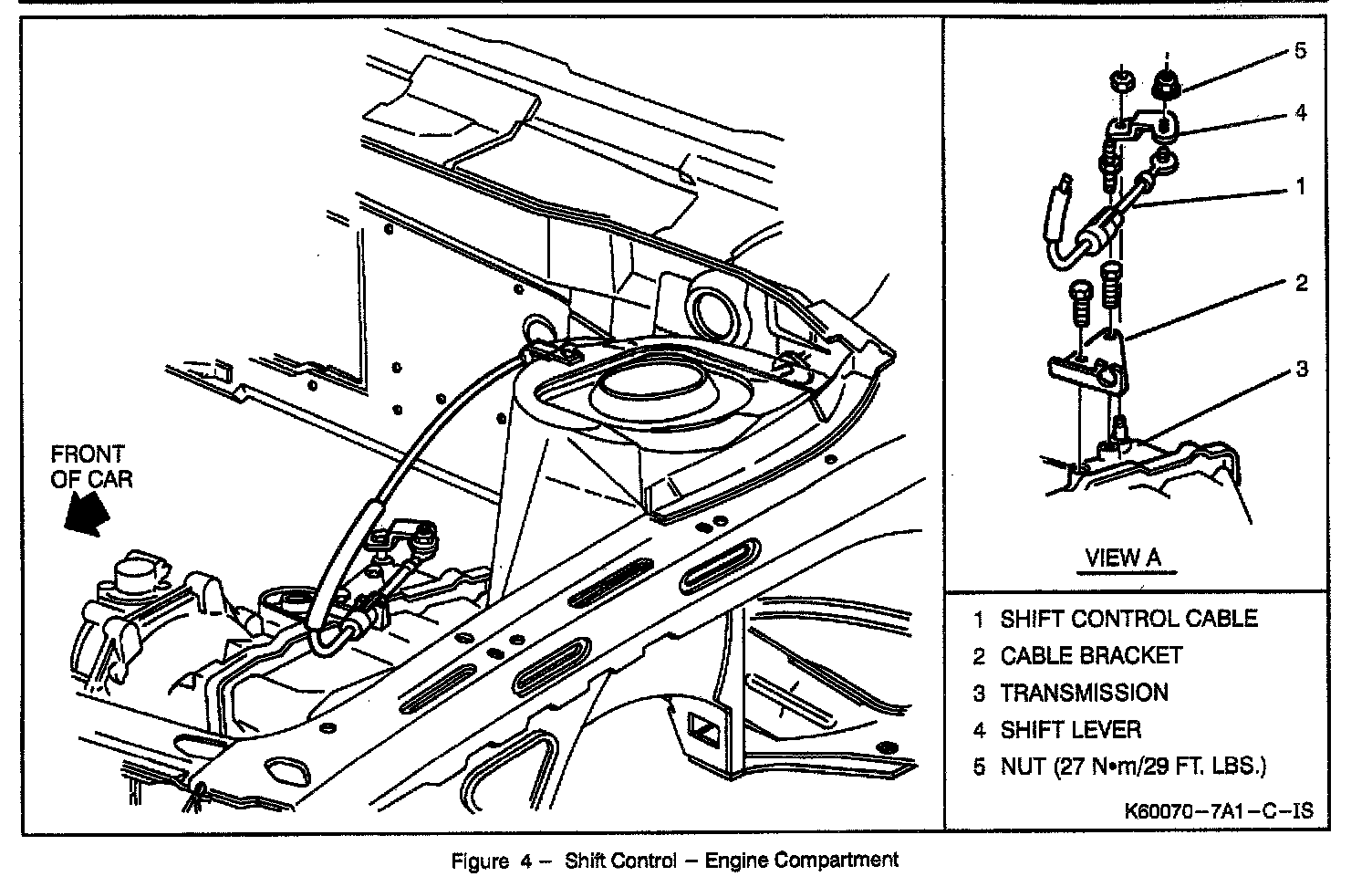

2. Loosely assemble nut (5) to cable (1) through transmission lever (4) with transmission cable assembled to steering column bracket (182) and installed at transmission control cable bracket (2)

Tighten: Nut (5) to 27 Nm (20 lb ft)

NOTICE: Lever must be held out of park when torquing. Tighten by hand only.
