Compressor/Pump Relay: Testing and Inspection

Fig. 19 ELC System Diagnostic Chart (Part 1 Of 6):



Fig. 19 ELC System Diagnostic Chart (Part 2 Of 6):

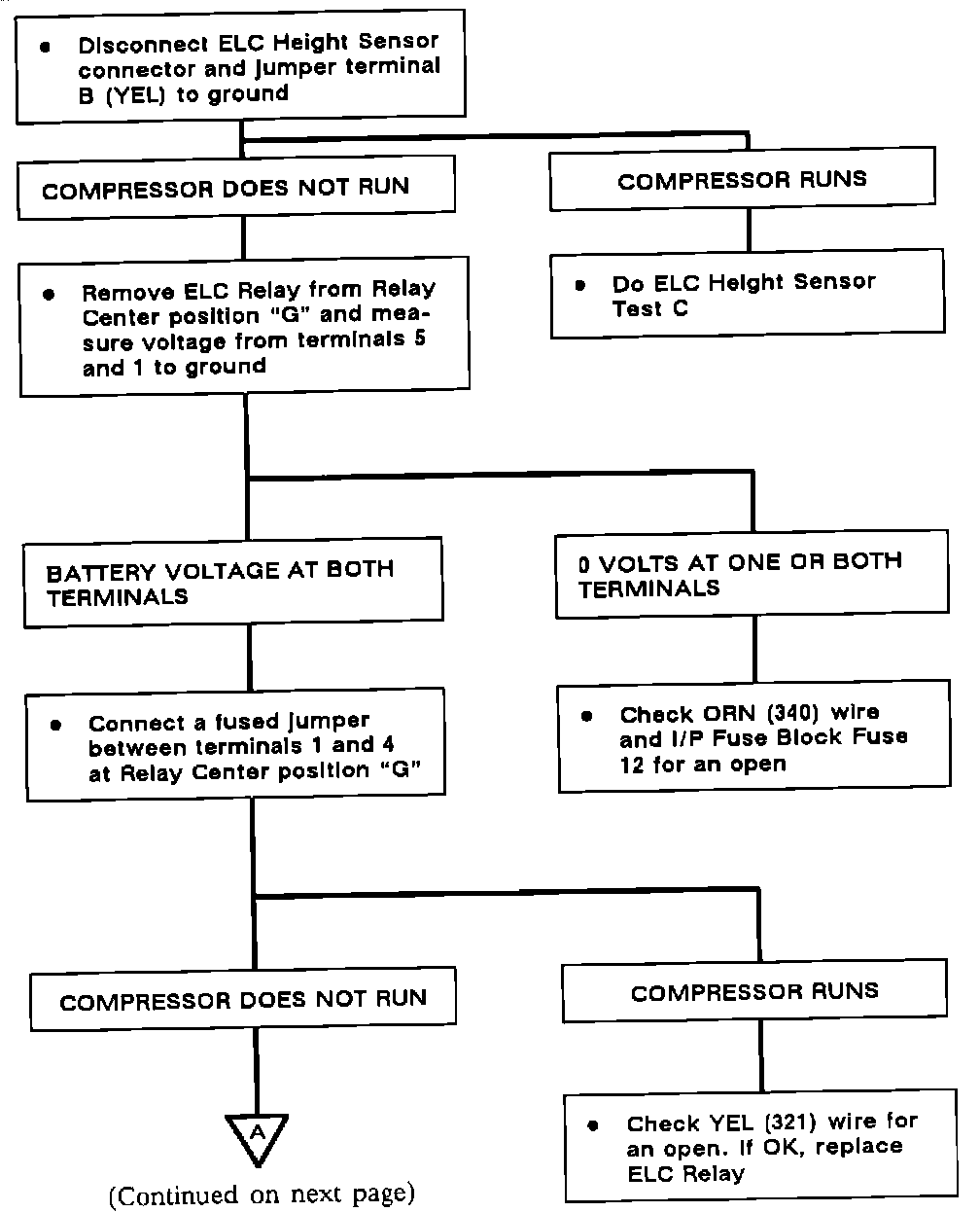

Test A: ELC Relay And Compressor Motor Test:

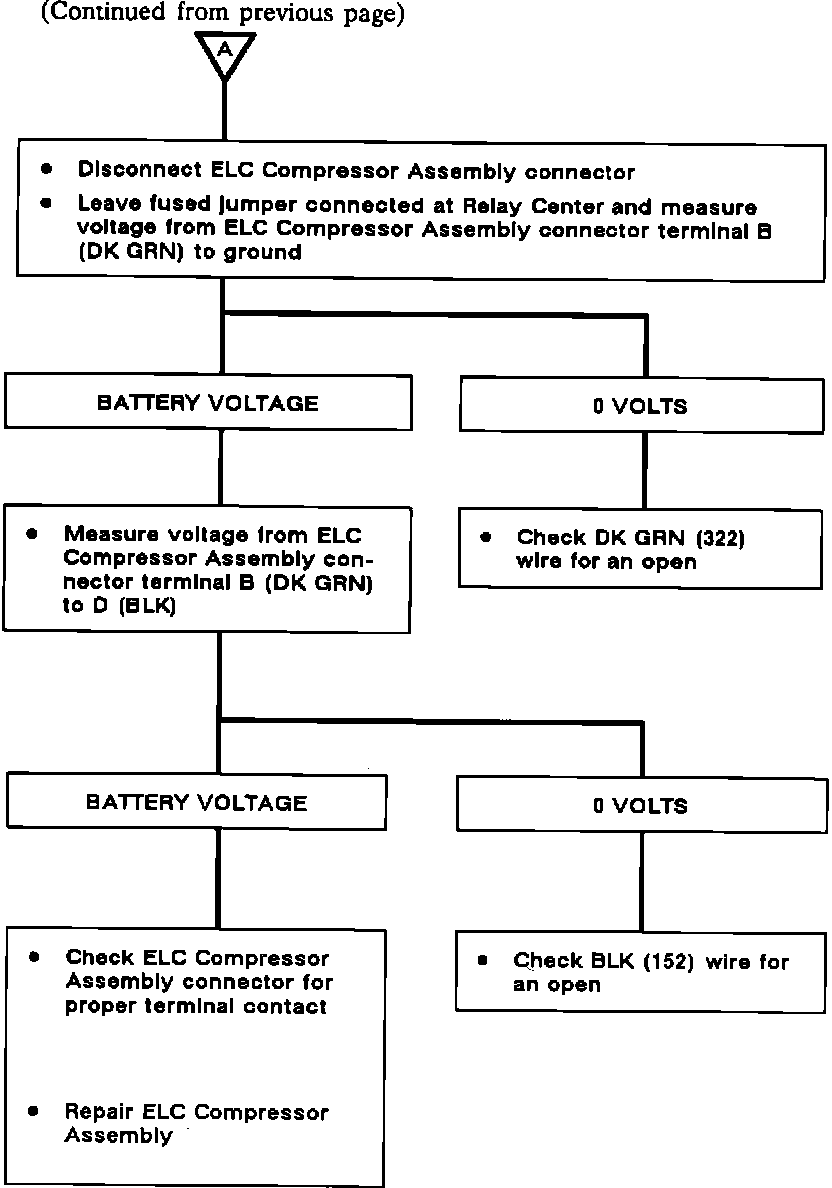

Test A: ELC Relay And Compressor Motor Test:
