Evaporative Emission Control Canister: Service and Repair

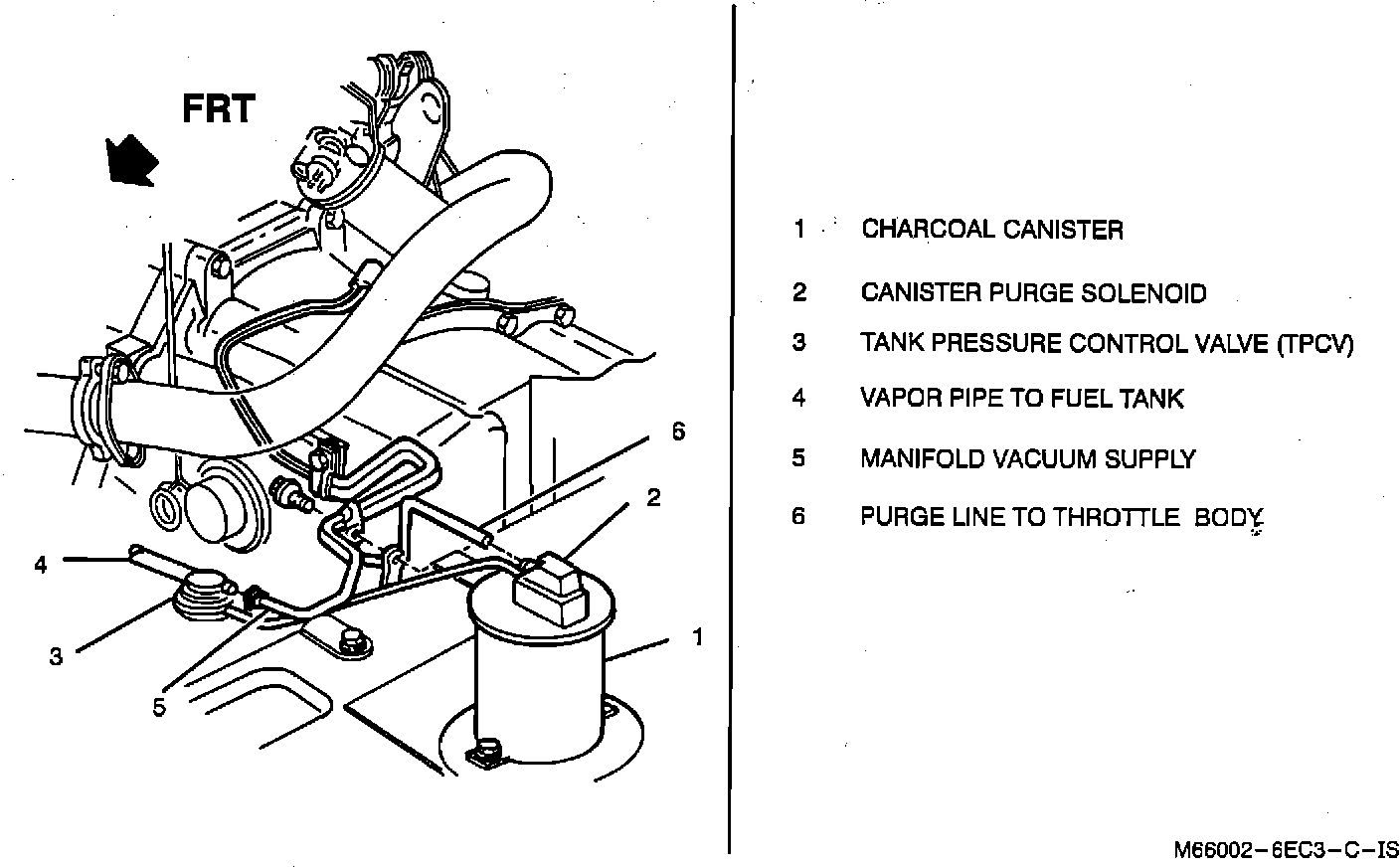

Charcoal Canister Vacuum Hose Routing:

Charcoal Canister On-vehicle Service:

REMOVE OR DISCONNECT
1. Hoses from cannister. Mark hoses to install on new cannister.
2. Purge solenoid electrical connector.
3. Two bolts and cannister


INSTALL

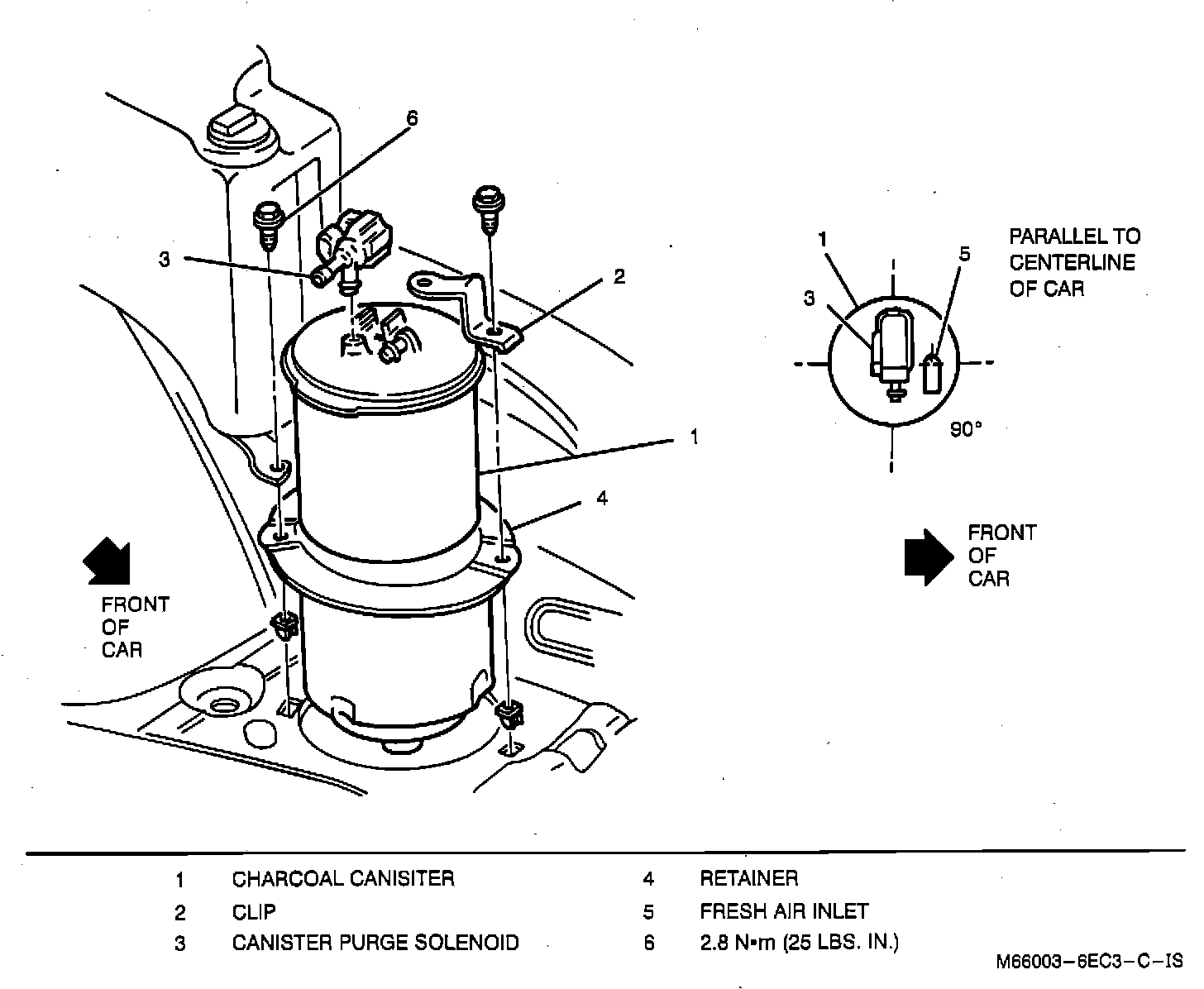

1. Cannister in bracket. Make sure canister is positioned as shown in figure.
2. Two bolts.
3. Hoses to top of cannister.
4. Purge solenoid electrical connector.
