Home
>>
Cadillac
>>
1992
>>
DeVille V8-300 4.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G105
G105

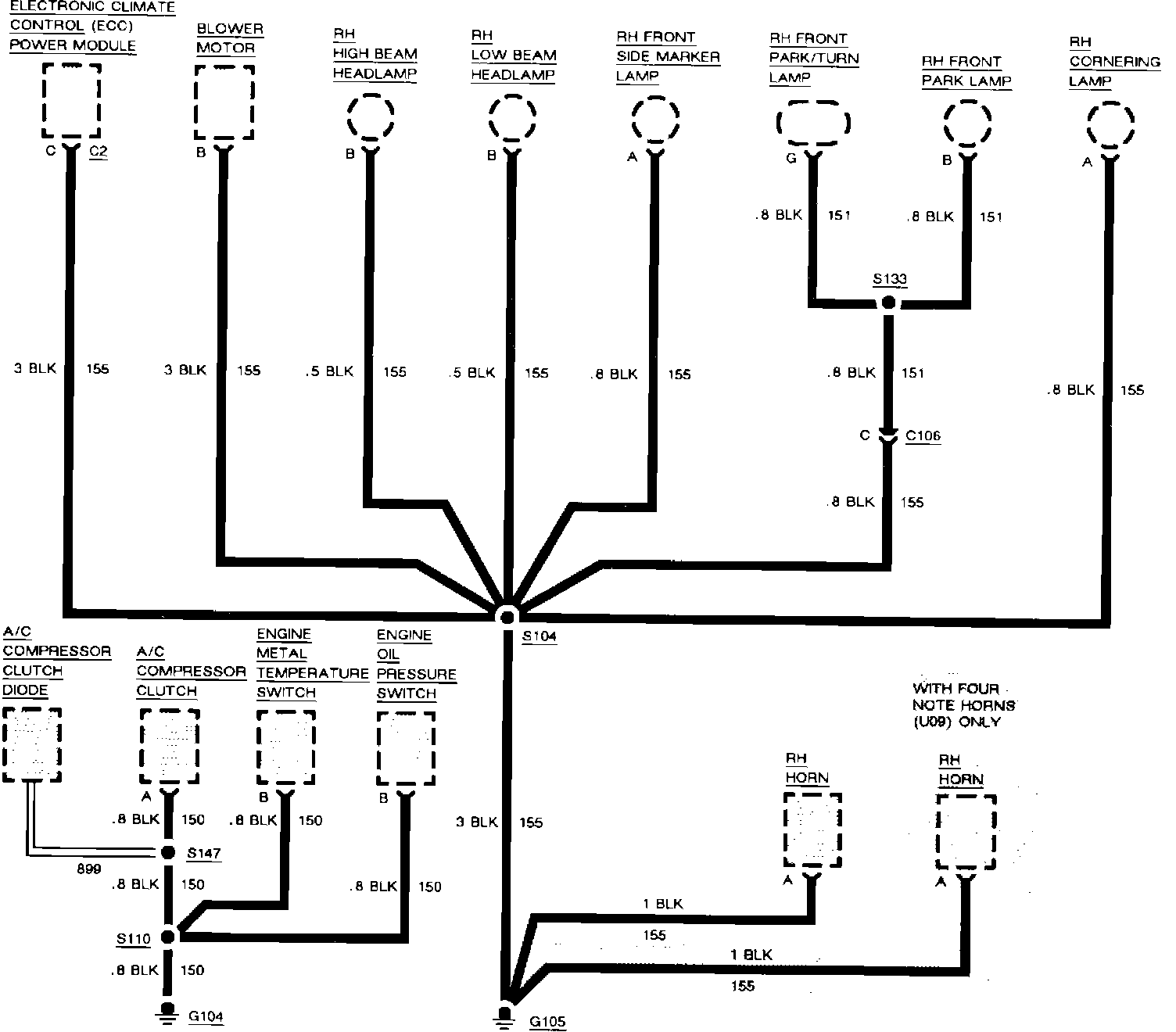

Ground Distribution: G104, G105:
