System Diagram

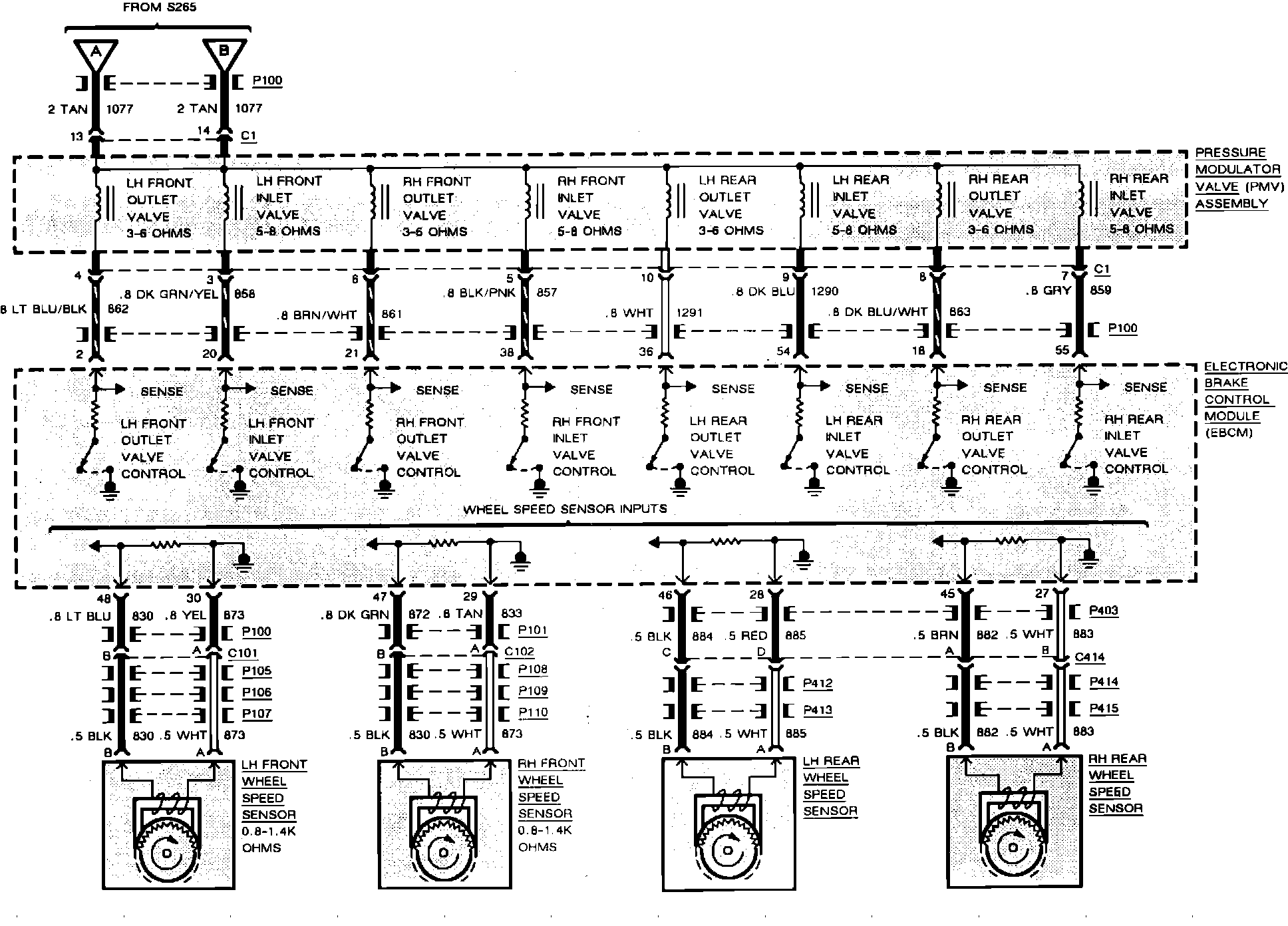

Fig. 56 ABS Wiring Circuit (Part 1 Of 5). 1992 DeVille/Fleetwood:

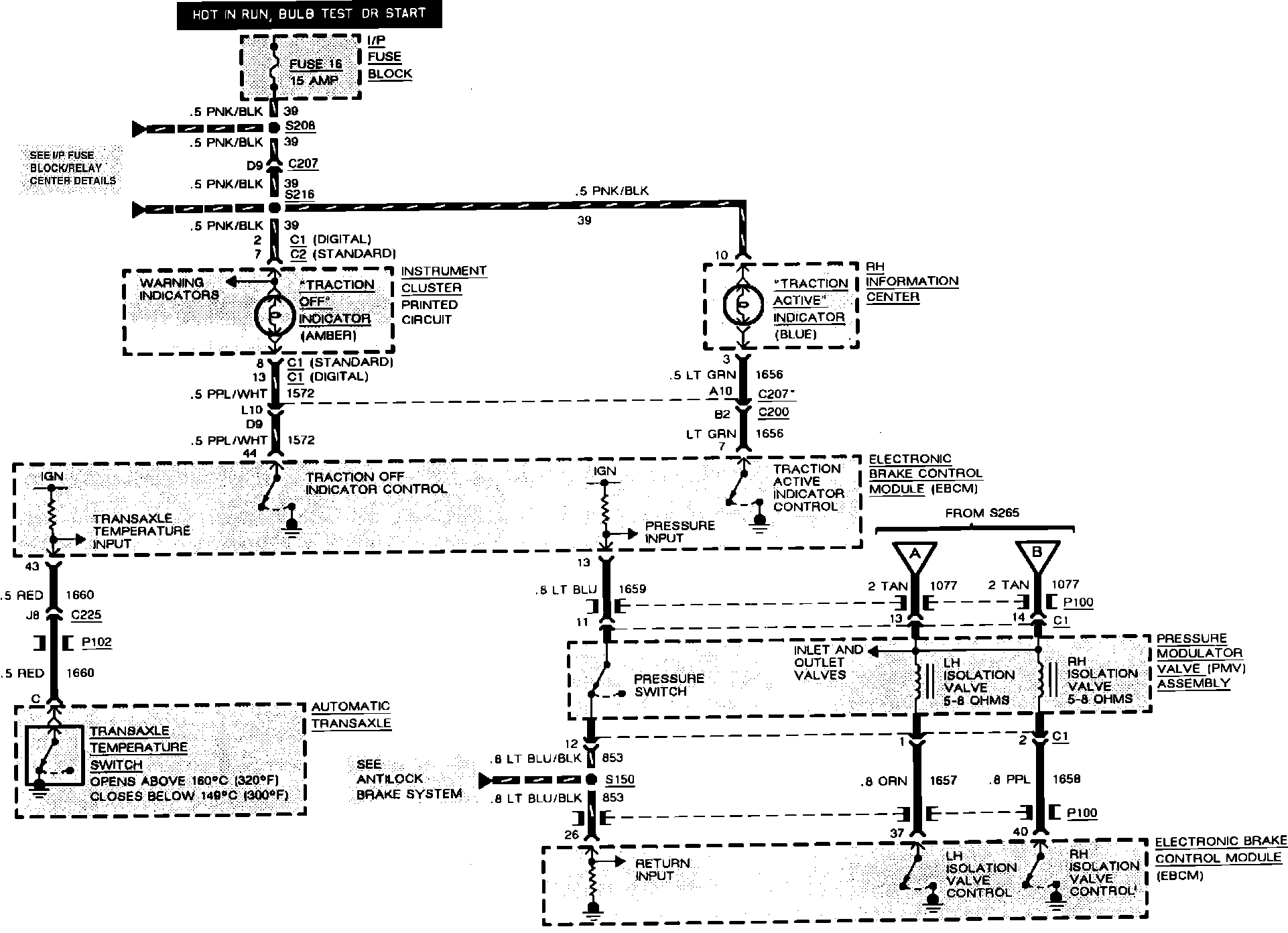

Fig. 56 ABS Wiring Circuit (Part 2 Of 5). 1992 DeVille/Fleetwood:

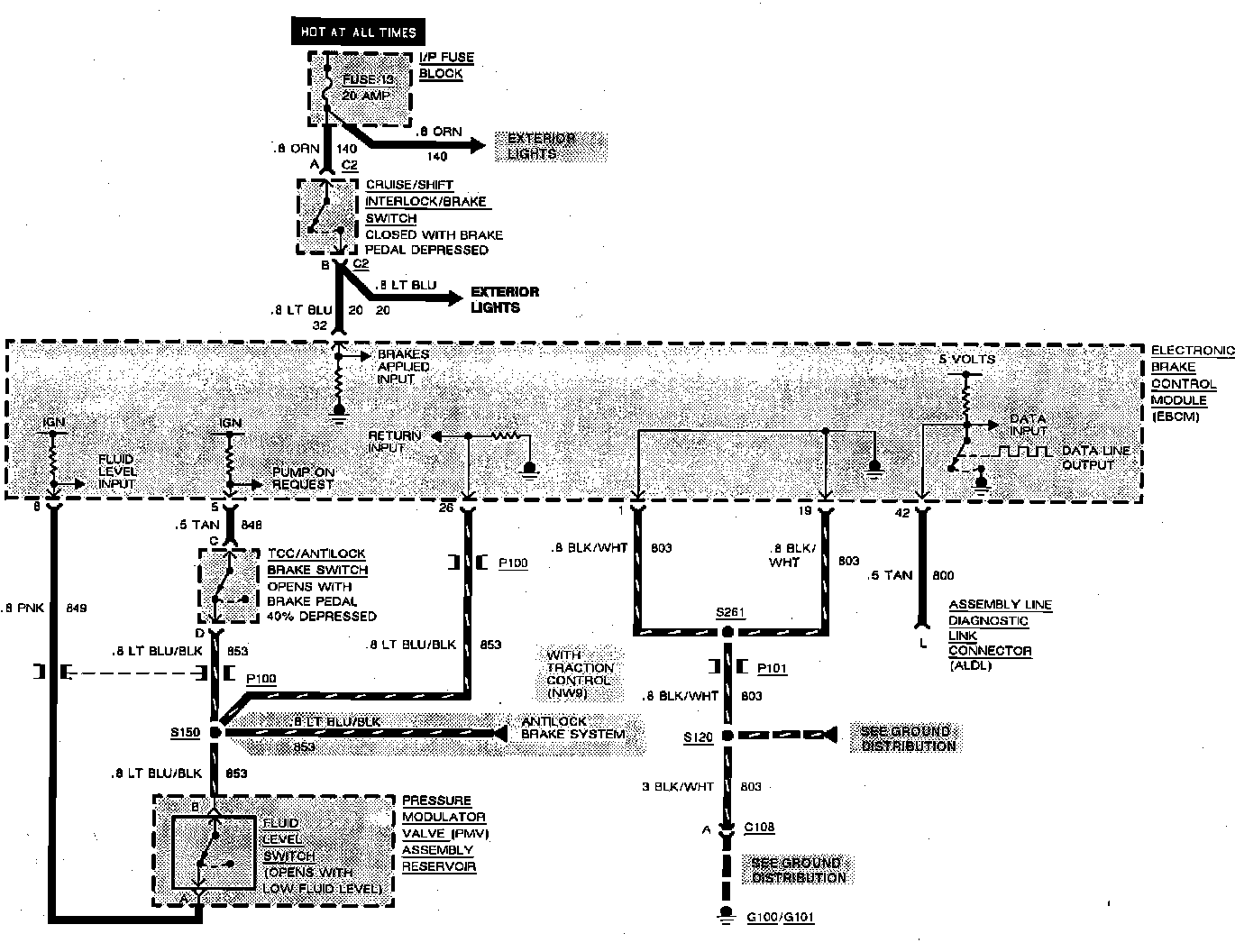

Fig. 56 ABS Wiring Circuit (Part 3 Of 5). 1992 DeVille/Fleetwood:

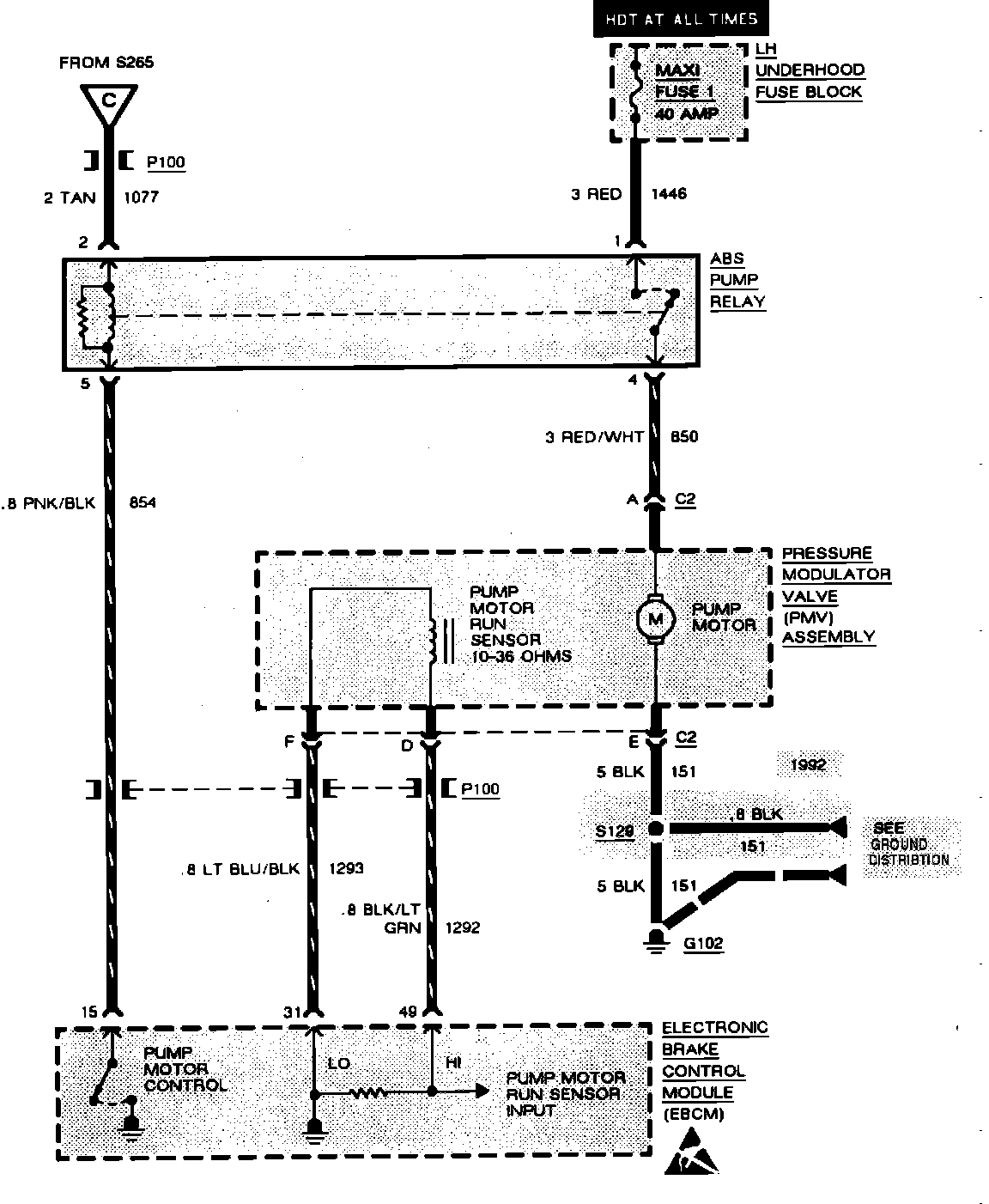

Fig. 56 ABS Wiring Circuit (Part 4 Of 5). 1992 DeVille/Fleetwood:

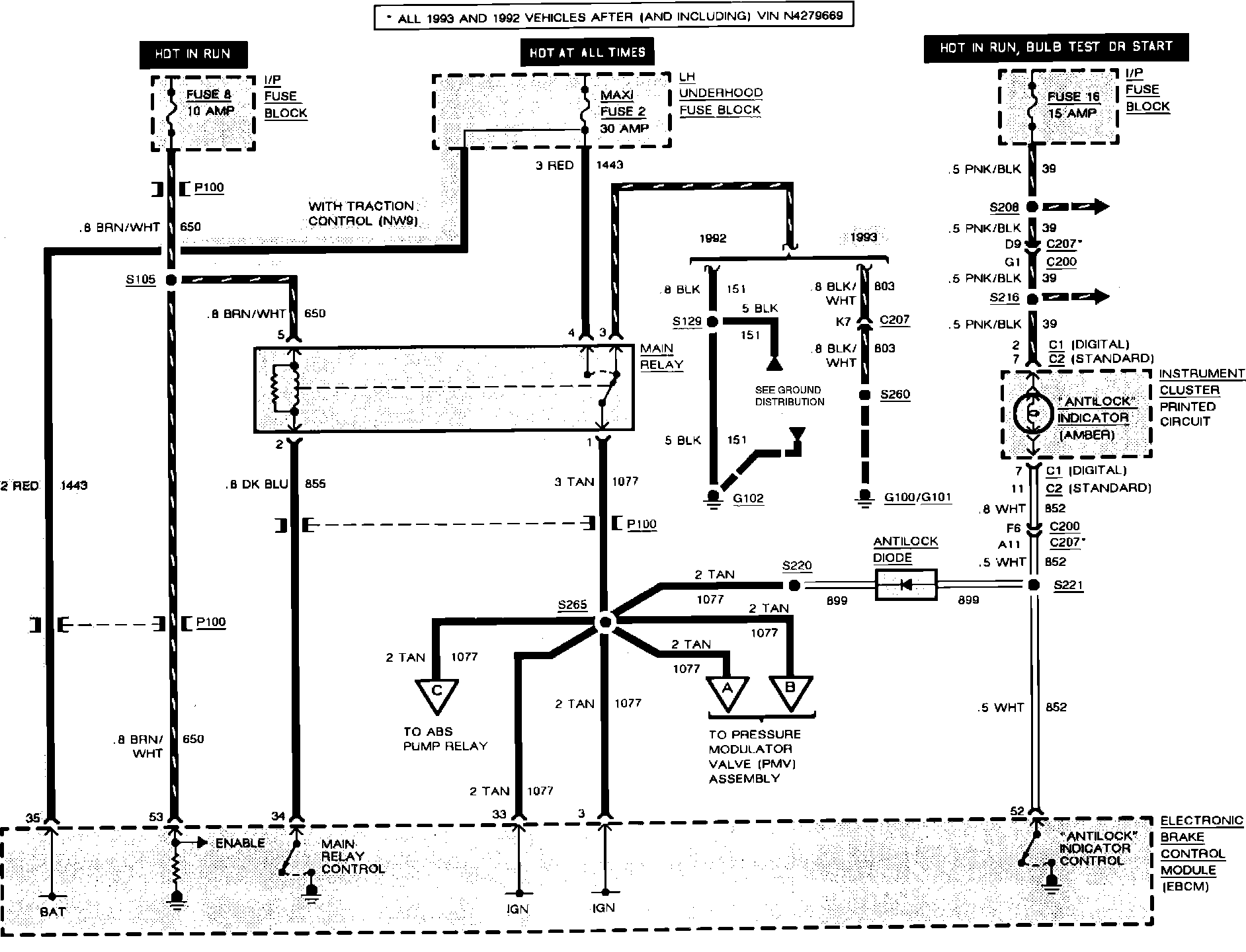

Fig. 56 ABS Wiring Circuit (Part 5 Of 5). 1992 DeVille/Fleetwood:
