Power Steering Pump Replacement

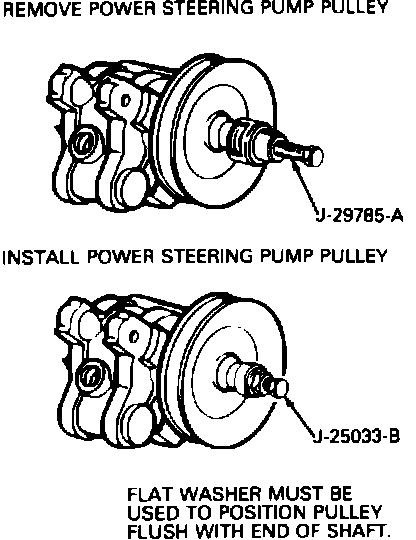

Fig. 10 Power Steering Pump Pulley Removal. Eldorado & Seville:

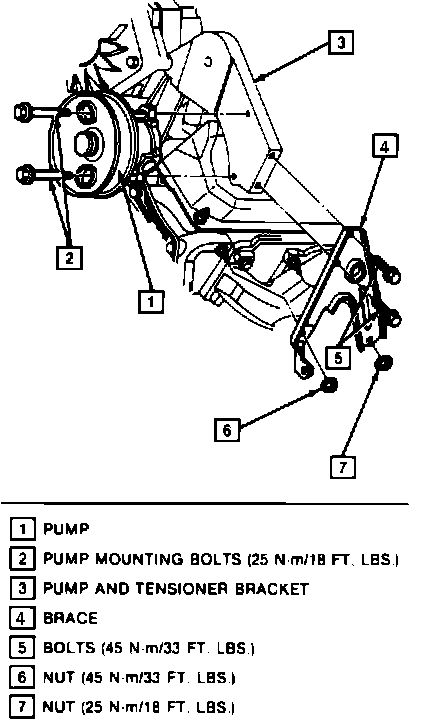

Fig. 11 Power Steering Pump Installation. Eldorado & Seville:

1. Remove serpentine drive belt.
2. Remove pump pulley using a puller, Fig. 10.
3. Disconnect pressure and return lines from pump, noting position for installation.
4. Remove two pump mounting bolts, Fig. 11, and the pump.
5. Reverse procedure to install.
