Home
>>
Cadillac
>>
1991
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

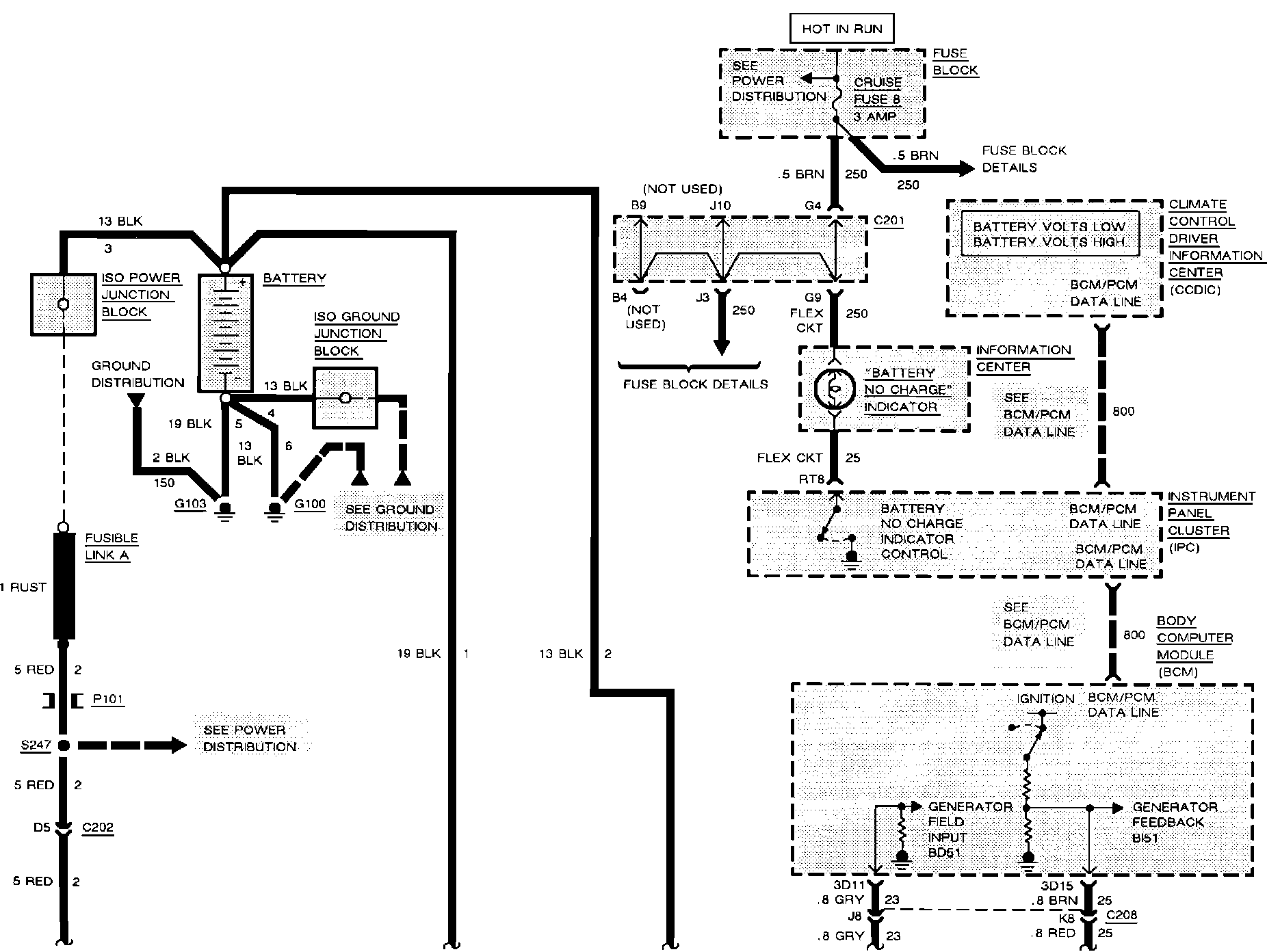

Starter & Charger System:
Starter & Charger System:
