Home >> Cadillac >> 1991 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls

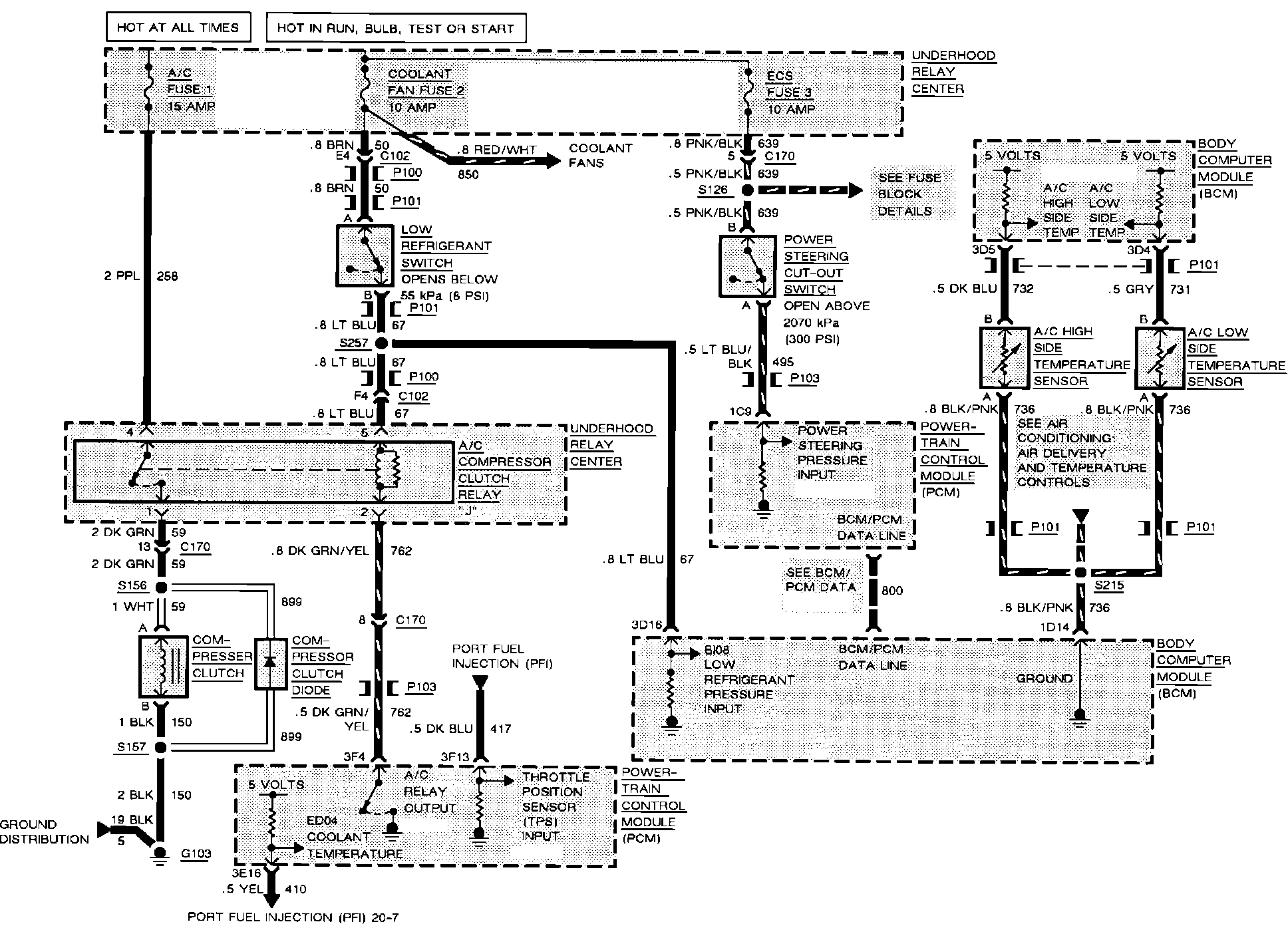

Compressor Controls

Air Conditioning. Compressor Controls:
