Home
>>
Cadillac
>>
1991
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>

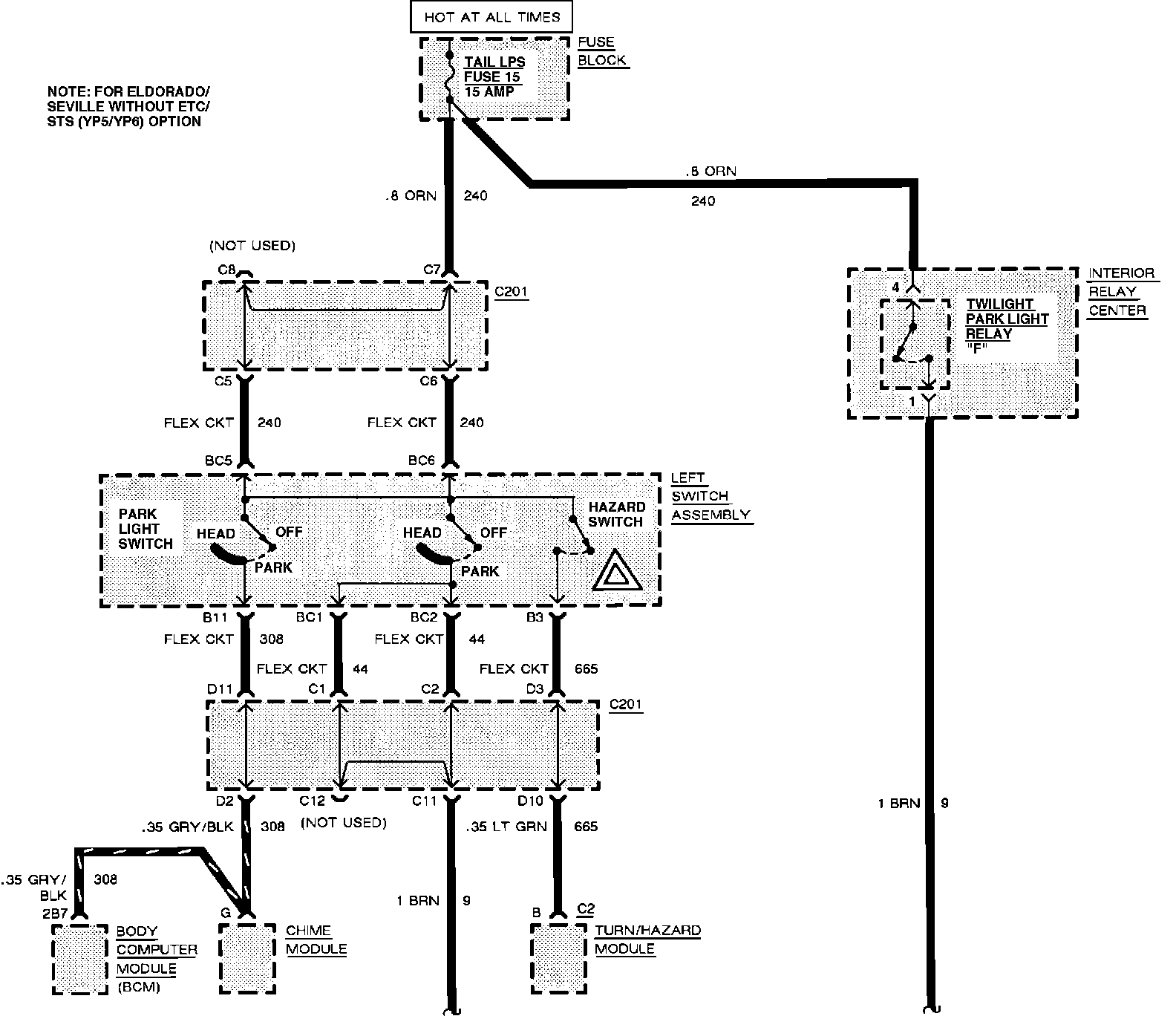

Tail Lamps Fuse 15
>>
With Etc/STS Option
With Etc/STS Option

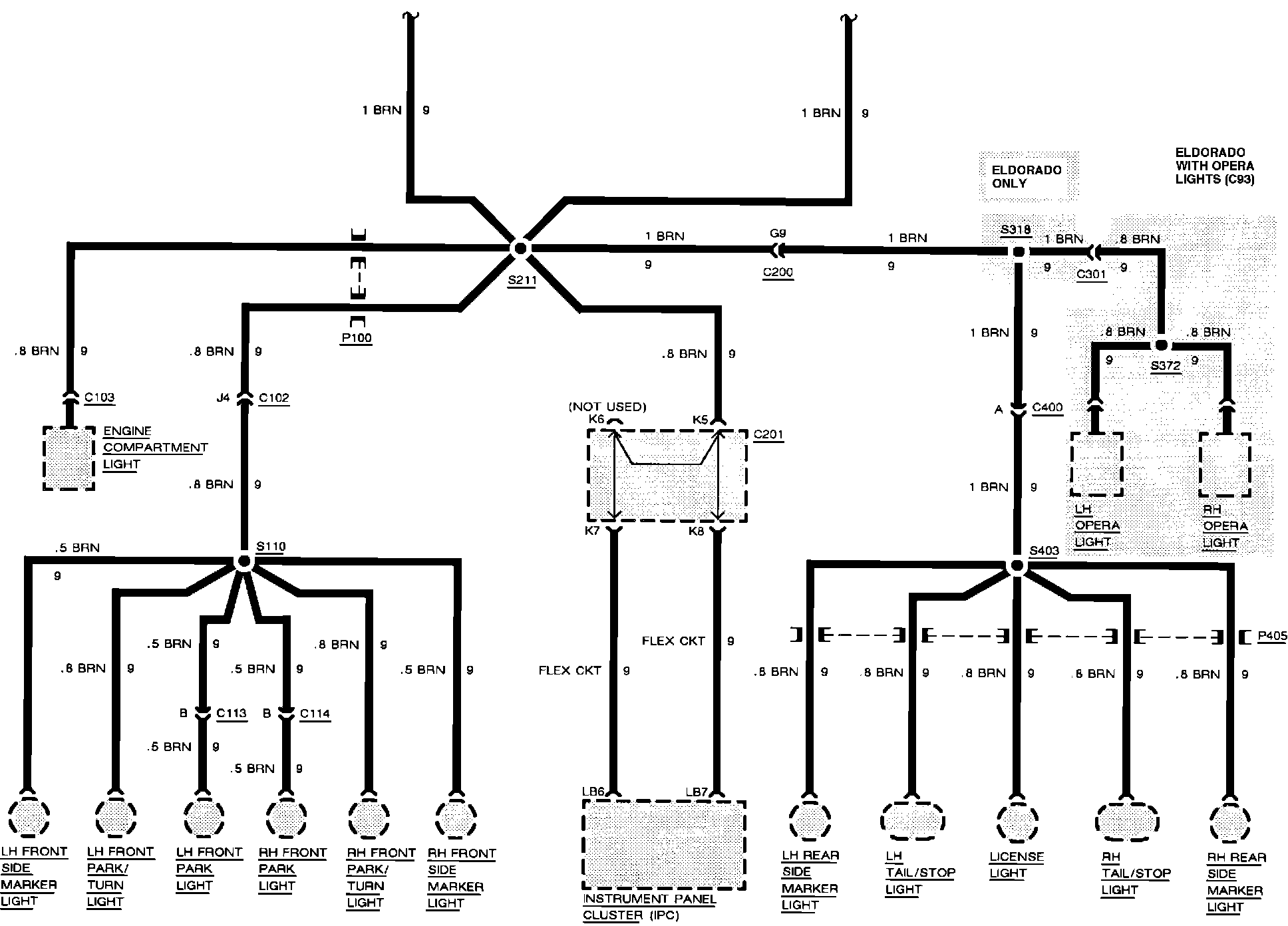

Fuse Block Details. Tail Lamps Fuse 15:
Fuse Block Details. Tail Lamps Fuse 15:
